SEBA Hydrometrie

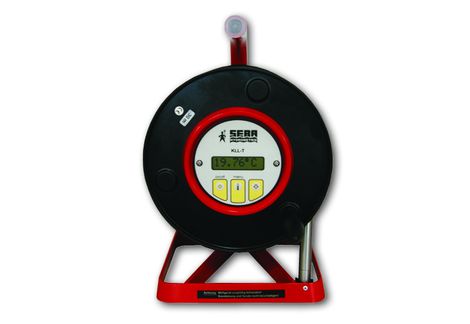

Electric Contact Meter Type KLL-T

WaterLevel Measurement & Monitoring

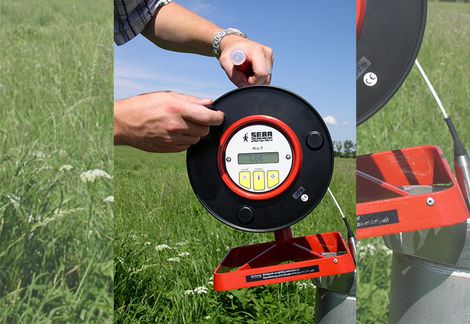

The KLL-T has a sturdy aluminum frame and comfortable handle with which the device can be easily transported and operated. The flat ribbon cable is particularly robust and durable with very easy-to-read numbering. The built-in temperature reliably measures the water temperature with a high accuracy and resolution of 0.1° C.

Quantity

Overview

Portable hand-held device for determining the current water level and the water temperature in water depths up to 500 m and sounding pipes from Ø 1"
Membrane keypad with backlit LCD to display temperature
Optical and acoustic signal on contact with water
Robust aluminum support frame

Specification

Water Level

Sensor	Vertical
Measurement Principle	Electric contact

Water Temperature

Measurement Principle	AD590 probe
Measuring Range	0-25°C, Option: 0-50°C
Measuring Accuracy	0.1°C
Resolution	0.1°C
Pressure Range	0-50 bar

Conductivity

Display	Area 1: 20-200 µS/cm Area 2: 0.2-2mS/cm Area 3: 2-20mS/cm Area 4: 20-50 mS/cm

Display

Area 1: 20-200 µS/cm

Area 2: 0.2-2mS/cm

Area 3: 2-20mS/cm

Area 4: 20-50 mS/cm

Housing (Vertical)

Material	Stainless-steel nickel-plated brass tip
Dimensions	Ø16mm, Length: 170mm
Protection Class	IP68

Electronic Water Level Gauge

Support Frame	Aluminum, surface-coated
Cable Drum	Impact-resistant, temperature-resistant plastic
Dimensions	KLL-T 30/50/100m: 220x350x330 KLL-T 150/200m: 280x415x330 KLL-T 300/500m: 400x570x330
Protection Class	IP54
Keyboard	3 multifunction buttons
Display	1-line LCD (liquid crystal display) with backlight

Cables

Lengths	0-30/50/100/150/200/300/500m
Material	2-core flat cable, polyethylene with stainless steel braids and a copper core
Scaling	Black cm-division, dm-numbering, red meter figures
Accuracy	1 cm (KLL-T, 30m)
