SEBA Hydrometrie

Electric Contact Meters Type KLL

WaterLevel Measurement & Monitoring

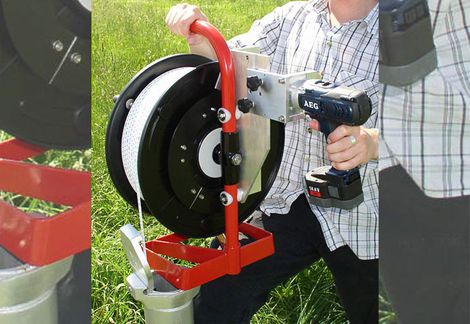

The SEBA KLL electric contact gauge comes in different variants either with or without an aluminum support frame, in cable lengths of 15 m-500 m and with a 14 mm-weight (standard) or 10 mm weight available for the smallest of tube diameters. For electric contact gauges with long cable lengths, there is the possibility of an electrical winch, in order to facilitate or accelerate the winding of the ribbon cable.

Quantity

Overview

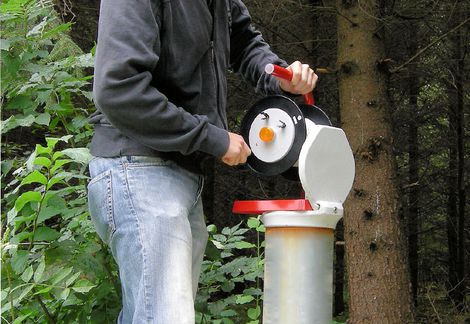

Portable hand-held device for determining the current water level up to 500 meters depth
Optical and acoustic signal (option) on contact with water

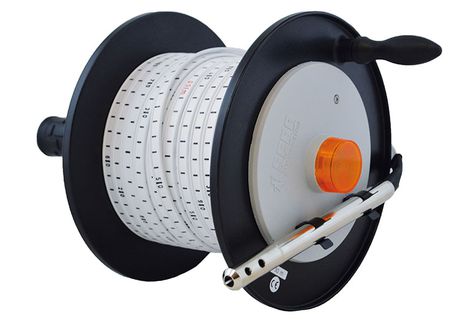

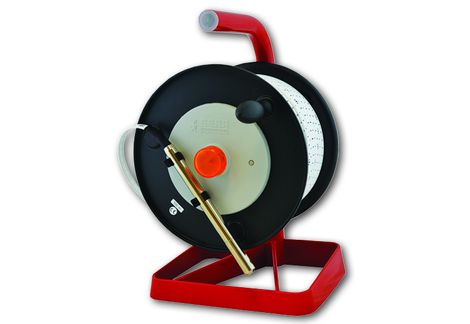

Available on hand drum or with a robust aluminum support frame
Extensible scope of functionality (basic sensing device, sampling, electric drive, etc.)

Specification

Water Level

Sensor	Plummet
Measurement Principle	Electric contact

Plummet

Material	Stainless steel, nickel-plated brass tip
Dimension	Ø14mm, length: 175mm, Option: Ø10mm, length: 175mm
Protection Class	IP68

Material

Stainless steel, nickel-plated brass tip

Dimension

Ø14mm, length: 175mm,

Option: Ø10mm, length: 175mm

Protection Class

IP68

Electronic Water Level Gauge

Support Frame	Aluminum, surface-coated
Cable Drum	Impact-resistant, temperature-resistant plastic
Protection Class	IP54

Cables

Length	0-15/30/50/80/100/150/200/300/500m
Material	2-core flat cable, polyethylene with stainless steel braids and a copper core
Scaling	black cm-division, dm-numbering, red meter figures
Accuracy	<1 cm (KLL 100m)
