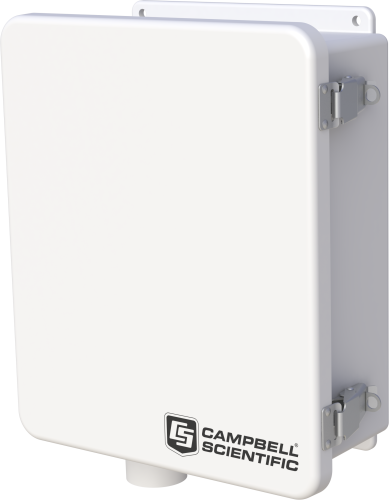

ENC 10/12 Enclosure Series

ClimateMeteorological Station & Sensors

The ENC10/12 is a weather-resistant enclosure that is 10 inches wide and 12 inches tall. This enclosure can house and protect a smaller data logger, a power supply, and a small peripheral. Or it can house a peripheral that needs to be housed in an enclosure separate from the data logger.

Quantity

Overview

Weather resistant to protect instruments
Backplate designed so that Campbell Scientific components mount easily and securely
White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specification

Color	White (Reflects solar radiation, reducing temperature gradients inside the enclosure without using a separate radiation shield.)
Construction	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification	NEMA 4X (before being modified for cable entry)
Number of Cable-Entry Seals	1 medium, 2 small
Dimensions	30.5 x 25.4 x 11.4 cm (12 x 10 x 4.5 in.) internal 34.06 x 29.03 x 13.23 cm (13.41 x 11.43 x 5.21 in.) external
Weight	4.1 kg (9.0 lb)
