ENC 12/14 Enclosure Series

ClimateMeteorological Station & Sensors

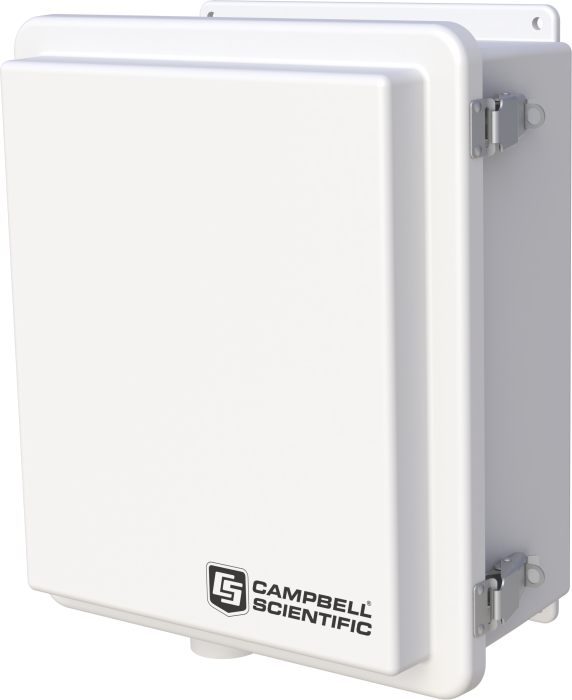

The ENC12/14 is a medium-sized, weather-resistant enclosure that is 12 inches wide and 14 inches tall. It is our most popular enclosure that balances cost with space requirements. This enclosure can house a data logger, a power supply, and one or more peripherals, depending on the footprint.

Quantity

Overview

Weather resistant to protect instruments

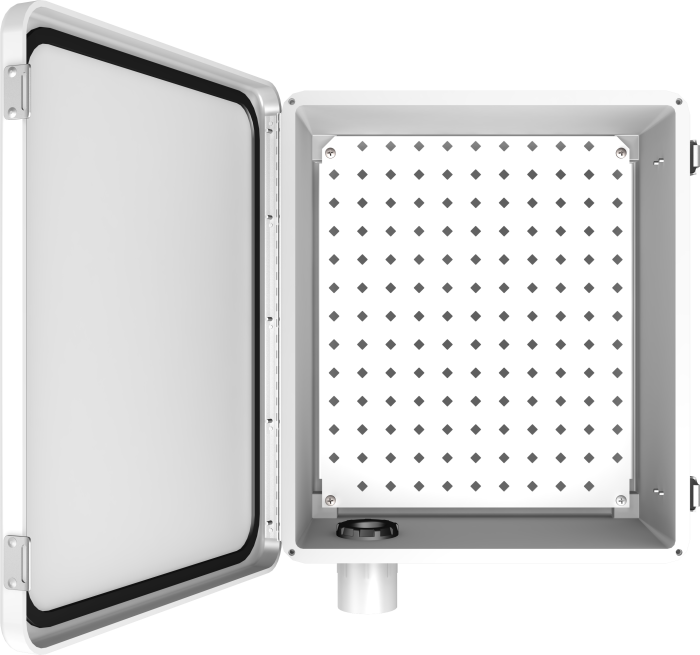

Backplate designed so that Campbell Scientific components mount easily and securely
White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specification

Color	White (Reflects solar radiation, reducing temperature gradients inside the enclosure without using a separate radiation shield.)
Construction	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification	NEMA 4X (before being modified for cable entry, conduit, or ground lug)
Number of Cable-Entry Seals	2 medium, 4 small
Dimensions	35.6 x 30.5 x 14 cm (14 x 12 x 5.5 in.) internal 33.48 x 28.32 x 17.6 cm (13.18 x 11.15 x 6.93 in.) internal under the lid space 39.12 x 33.96 x 19.51 cm (15.4 x 13.37 x 7.68 in.) external
Weight	5 kg (11.2 lb)
