Campbell Scientific

ENC 14/16 Enclosure Series

ClimateMeteorological Station & Sensors

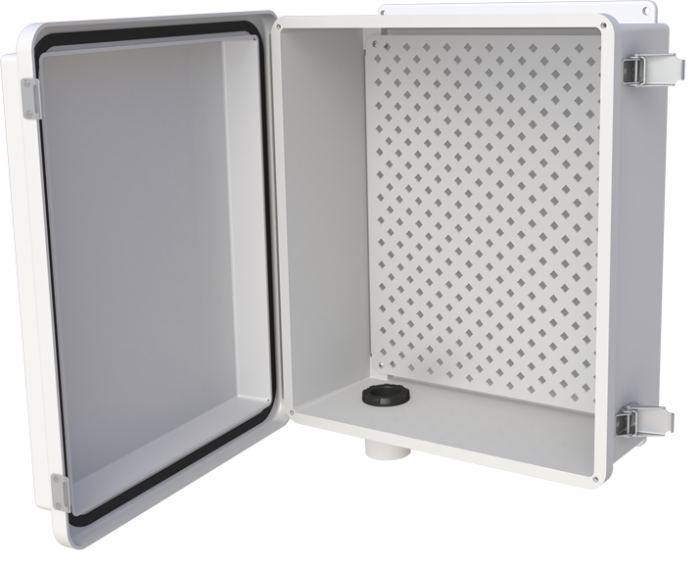

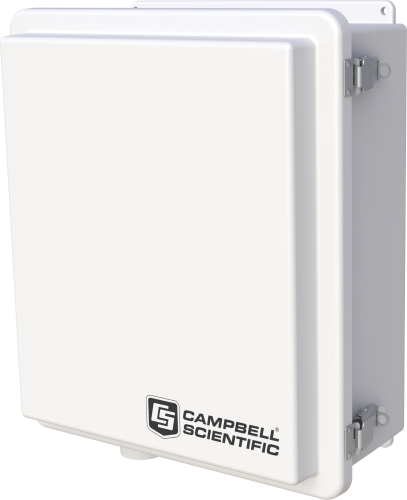

The ENC14/16 is a weather-resistant enclosure that is 14 in. wide and 16 in. tall. This medium-large enclosure can house a data logger, a power supply, and one or more peripheral—depending on the size of the peripherals. A common use for the ENC14/16 is to mount a larger enclosure to the leg base of a CM110, CM115, or CM120 tripod, because the larger ENC16/18 cannot be mounted to the leg base of these tripods.

Quantity

Overview

Weather resistant to protect instruments
Backplate designed so that Campbell Scientific components mount easily and securely
White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specification

Color	White (Reflects solar radiation, reducing temperature gradients inside the enclosure without requiring a separate radiation shield.)
Construction	Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification	NEMA 4X (before being modified for cable entry)
Number of Cable-Entry Seals	2 large, 2 medium, 2 small
Dimensions	40.6 x 35.6 x 14 cm (16 x 14 x 5.5 in.) internal 38.63 x 33.66 x 17.6 cm (15.21 x 13.25 x 6.93 in.) internal under the lid space 44.27 x 39.19 x 19.58 cm (17.43 x 15.43 x 7.71 in.) external
Weight	6 kg (13 lb)
