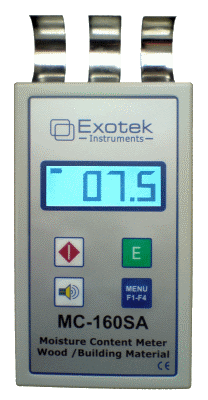

Exotek MC-160SA Moisture Meter

ClimateMoisture Meters

The new MC-160SA is a microprocessor-controlled hand-held instrument. It‘s reliable, easy to use and provides a faster and non-destructive evaluation of the moisture content of wood and building materials. The MC-160SA can be used in production or on construction sites for the control and inspection for the detection of water damage. In many cases is the relative humidity (RH) more meaningful. For this reason, the MC-160SA includes a software extension for the calculation and display of the RH-value of the moisture content of building materials.

Quantity

Overview

Pin-less & non-destructive: Capacitance measurement using a high frequency dielectric field
Could be used on different materials as wood, concrete, brick and plaster
Select from 6 wood groups (about 230 species) or 6 building material groups (E0 - E5)
Moisture detection down to depth of 50 mm
Low battery warning & Auto power off
Impact resistant ABS housing
Complete with 9V battery and carrying case
MC-160SA: 0 to 98% Relative humidity calculation for building materials @E1
MC-160SA: 32 memory locations for average measurement storage in F4

Specification

MEASURING RANGE-WOOD	@ "200" kg/m³ 0-80 % H₂O
MEASURING RANGE-BUILDING MATERIAL	@ "E1" 0-16 % H₂O
RH FOR BUILDING MATERIAL	0-99% RH
SCANNING DEPTH APPROX.	50 mm
OPERATING TEMPERATURE	-10°C/+60°C
RESOLUTION	0,1%
POWER SUPPLY	9V alkaline battery
