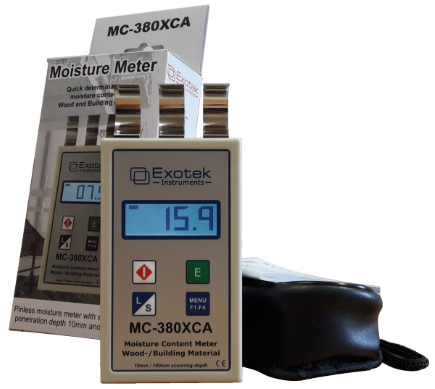

Exotek MC-380XCA Dual Scanning Depth Moisture Meter

ClimateMoisture Meters

The new MC-380XCA is a microprocessor-controlled hand-held instrument. Its reliable, easy to use and provides a faster and non-destructive evaluation of the moisture content of wood and building materials.

Quantity

Overview

230 different species of wood
Fast and accurate measurements
Easy handling and operation
Switchable penetration depth
Prevention of mold formation in the house and garden. Localization of the cause of water damage by switchable penetration depth, thereby also risk analysis possible, e.g. whether a hard casing is formed during the drying of the wood.
Changeable alarm levels (can be stored) for different groups
Backlight of the display and thus
clear readout both at day and night

Specification

MEASURING PRINCIPLE	Capacitive field
MEASURING RANGE ABSOLUTE MOISTURE	Wood: 0 - 85.0% H2O (@200kg/m³) Building material: 0 - 15% H2O (@CC2)
MEASURING RANGE RELATIVE HUMIDITY	Building material: 0 - 99% RH (@ CC2 - b30)
DENSITY RANGE WOOD	200 - 1180 kg/m3
DENSITY RANGE BUILDING MATERIAL	1200 - 3100kg/m³
MEASURING ACCURACY	± 1 %
MEASURING GROUPS	69
SCANNING DEPTH (MEASURING SPRINGS)	100mm
SCANNING DEPTH (BOTTOM SENSOR)	10mm
WORKING TEMPERATURE	-10°C/+60°C
RESOLUTION	0,1%
