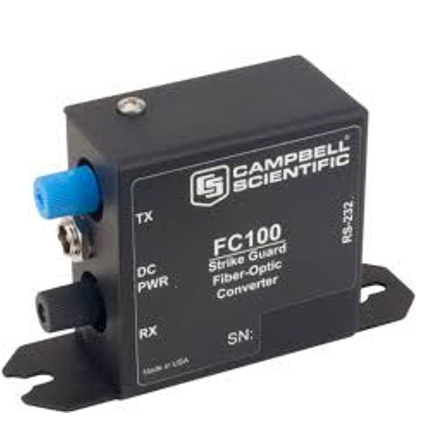

FC100 Fiber Optic Converter thumbnail 1

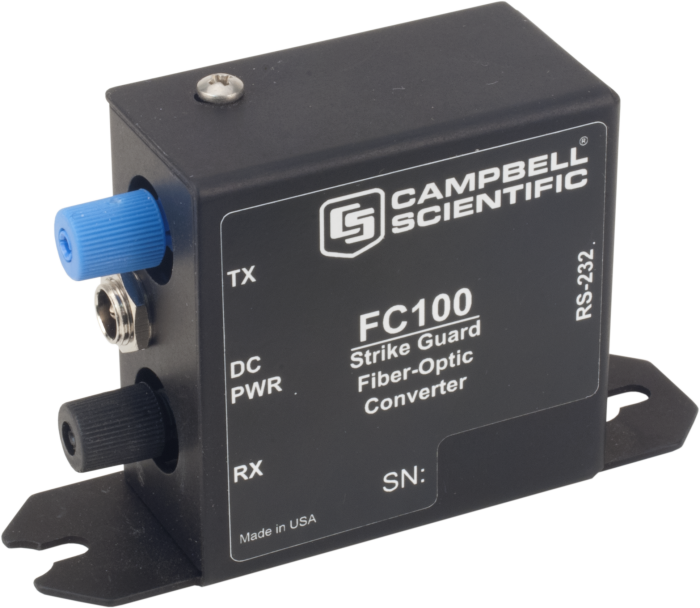

FC100 Fiber Optic Converter thumbnail 2

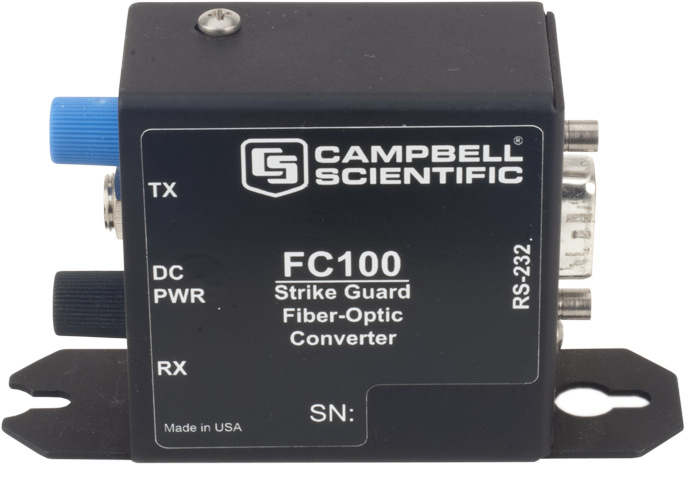

FC100 Fiber Optic Converter thumbnail 3

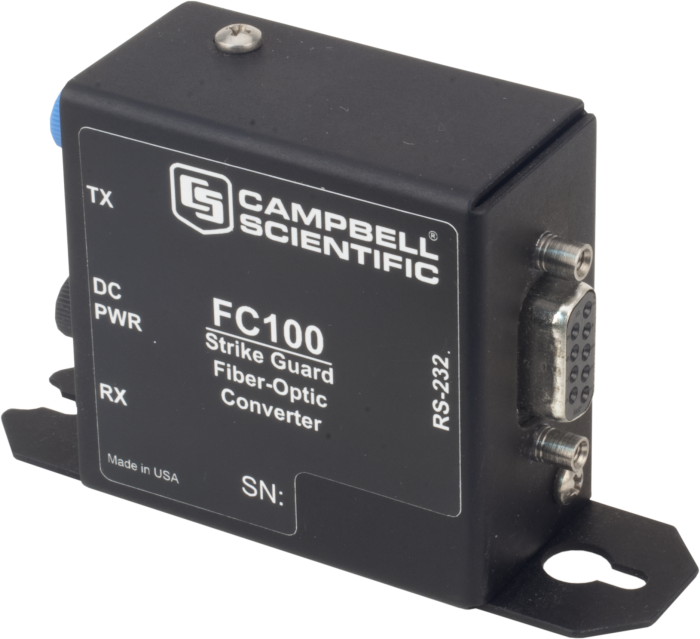

FC100 Fiber Optic Converter thumbnail 4

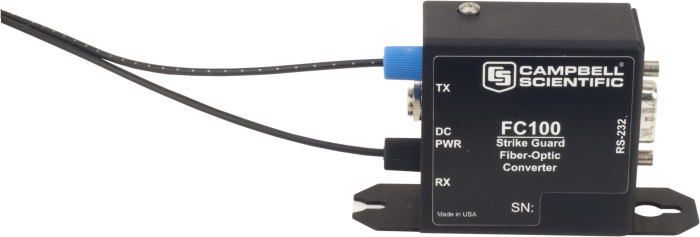

FC100 Fiber Optic Converter thumbnail 5

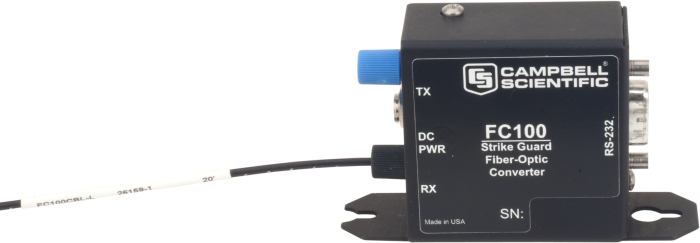

FC100 Fiber Optic Converter thumbnail 6

Campbell Scientific

FC100 Fiber Optic Converter

ClimateMeteorological Station & Sensors
The FC100 is typically used with the SG000 Strike Guard Lightning Detector as part of the CS110 and LW110 lightning warning systems. The SG000 outputs its data signal via fiber-optic cable, and the FC100 is installed at the end of the fiber-optic cable and before the data logger. The FC100 converts a fiber-optic data signal into an RS-232 signal for a lightning-proof connection between the sensor and the data logger.
Quantity
1

Overview

  • The FC100 is typically used with the SG000 Strike Guard Lightning Detector as part of the CS110 and LW110 lightning warning systems.
  • The SG000 outputs its data signal via fiber-optic cable, and the FC100 is installed at the end of the fiber-optic cable and before the data logger.
  • The FC100 converts a fiber-optic data signal into an RS-232 signal for a lightning-proof connection between the sensor and the data logger.
  • Lightning-proof and lightning-safe serial communication
  • Robust design for long, trouble-free operation
  • Instant termination without connectors, crimping, polishing, or epoxy

Specification

Electrical Connector 9-pin, D sub, DTE compatible
Baud Rates 1,200 to 19,200 bps (at 100 m guaranteed with FC100CBL-L cable)
Power 12 Vdc (via pn 14291 or pn 15966)
Current 5 mA (average)
Mounting Holes 7.62 cm (3 in.) apart
