Hansatech Instruments

FMS 2 Chlorophyll Fluorimeter

Soil & CropsPhotosynthesis Chlorophyll & Respiration

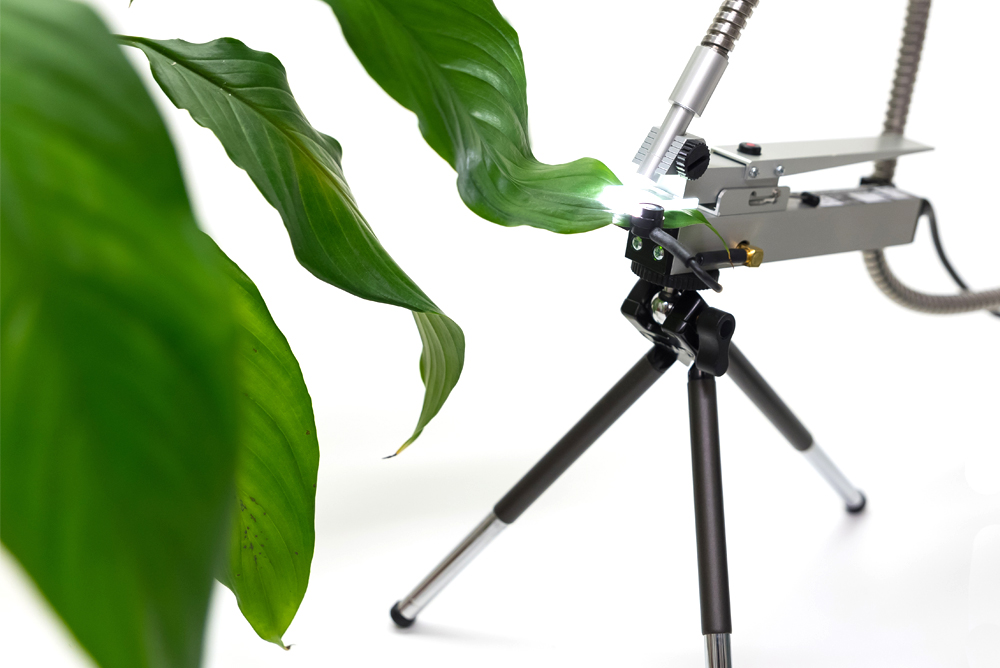

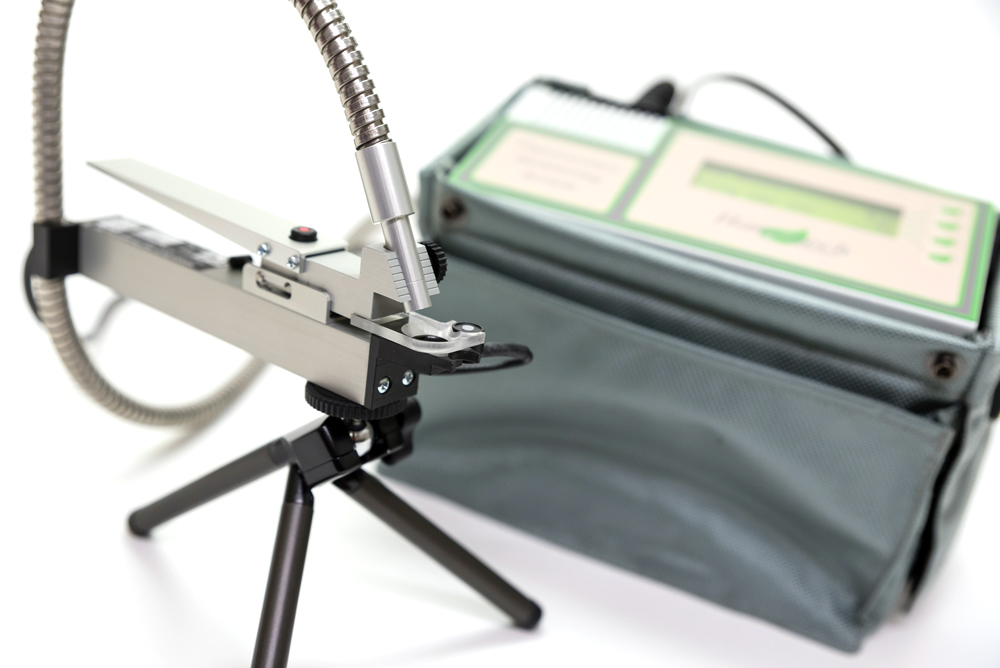

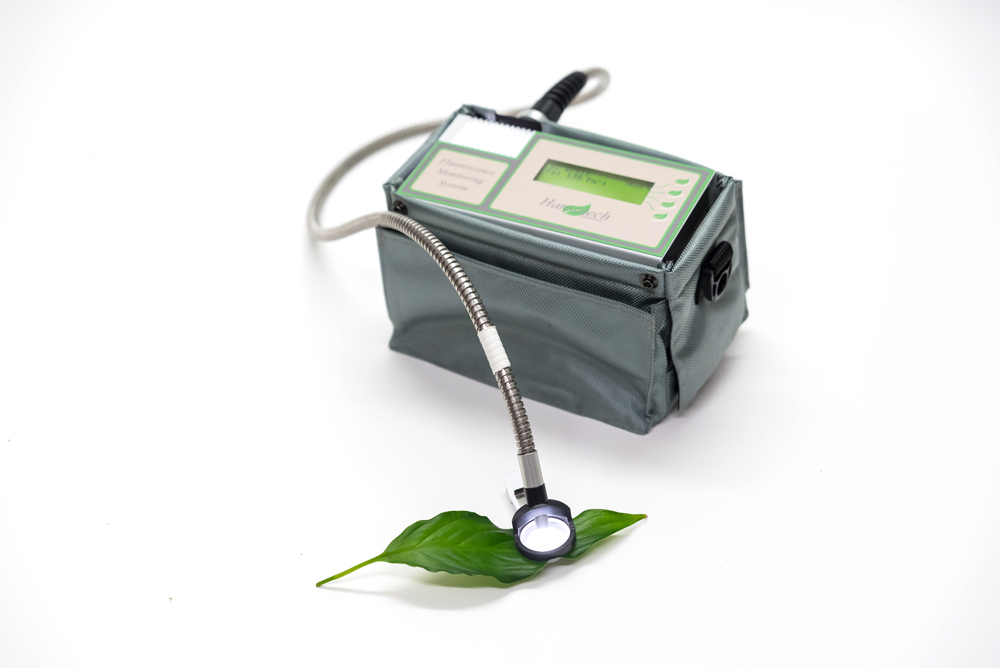

The FMS 2+ chlorophyll fluorimeter consists of a control unit housing all of the electronics, optics and light sources necessary to derive most common chlorophyll fluorescence parameters. These are optically linked to the sample by a statistically randomised fibre-optic cable that is positioned in the FMS/PTL PAR/temperature leafclip. The fibre-optic cable is also suitable for insertion into a range of sample containers such as oxygen electrode chambers, older gas-analysis chambers, petri dishes and microtitre plates.

Quantity

Overview

Upgraded model with LED light sources replacing older halogen bulbs
USB connectivity replacing older RS232 communications
Pulse-modulated system with compact, field-portable Design
Integral LED light sources for modulation beam, actinic & saturating pulses

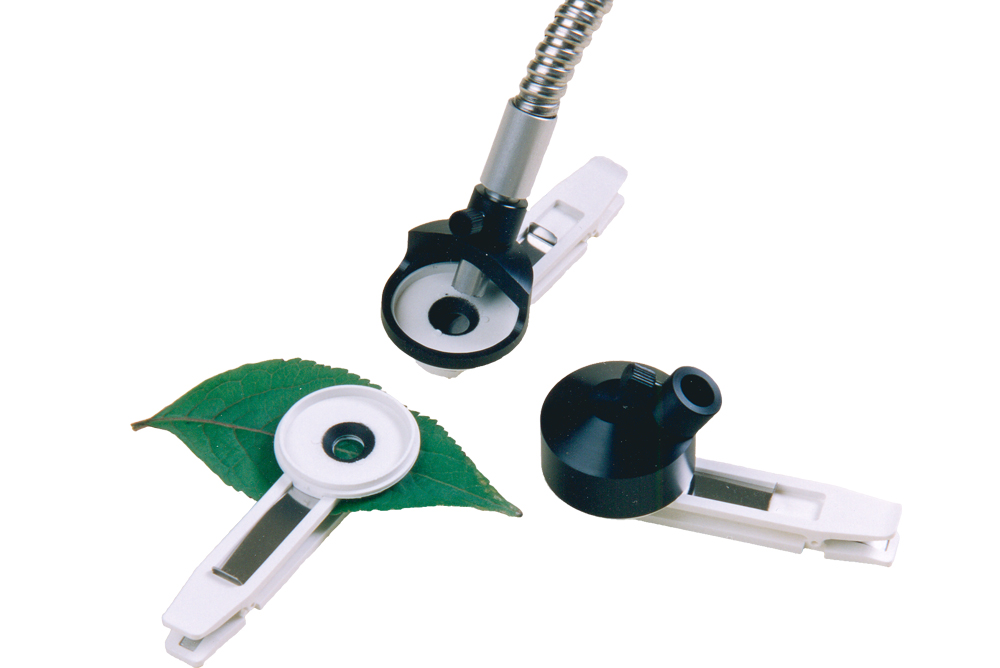

Leafclip with integral PAR/temperature sensor

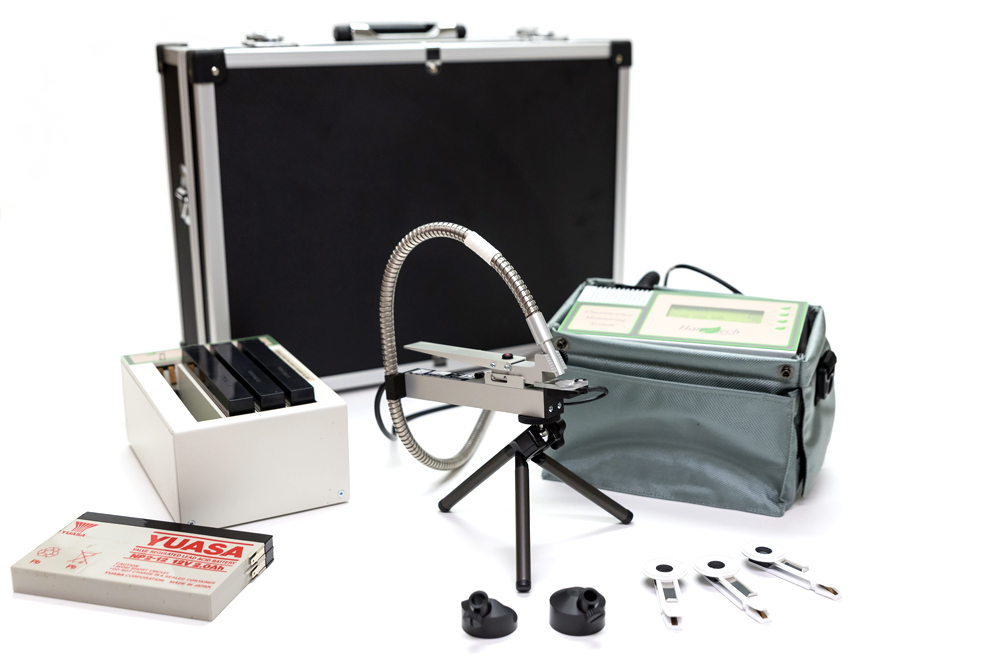

Field-swappable multi-battery system
Temperature compensated electronics for stable Fo measurement
Programmable by user-friendly iconised script editor
Windows® data acquisition & data analysis software

Specification

Suitability	Field and lab-based measurement assays
Light sources	Modulation beam: Temperature compensated 594nm amber LED with 4-step frequency control (optional 470nm blue LED) Ultra-bright white LED: Actinic >3,500 μmol m^-2 s^-1, saturating >13,000 μmol m^-2 s^-1 at sample surface Far-red: 735nm LED
Detector	PIN photodiode with >700 nm filter
Detection method	Rapid peak-pulse tracking
Sampling rate	Variable 10 Hz to 20 kHz depending upon instrument mode
Electronics	16-bit 165 microprocessor 8 A/D channels 12-bit resolution 4 external digital I/O lines Single 12-bit buffered DAC (0 mV – 4095 mV)
Storage	256 Kb backed up RAM storing up to 2,430 full trace or 12,850 parameter only data sets
Display	20 x 4 LCD display
