G400 Gas Mixing System

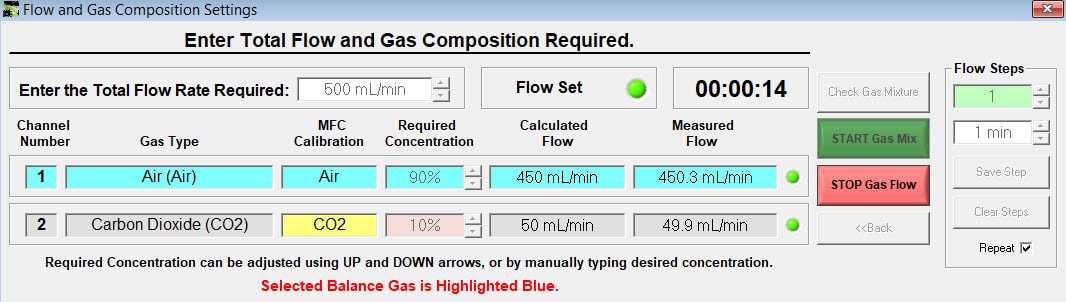

Users may program a series of gas combinations and timings. If any selection is out of range the software warns the user.  Each mass flow controller comes with calibrations for 130 different gases or gas mixtures.  These may be changed in software as requirements change. Contact QUBIT with your specific requirements.  Let us know the number of gases, types of gases, concentration ranges of the mixtures and the total final flow rate required, and we will design your Gas Mixing System.

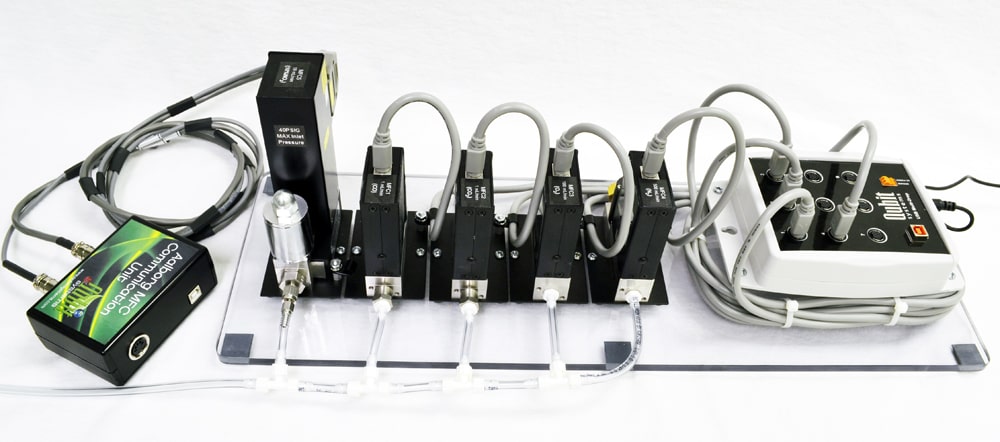

QUBIT’s G400 Gas Mixing Systems are used to supply specific gas mixture in bioreactors, multicultivators, incubators and growth chambers.  One Gas Mixing System may supply gas to multiple units.

• Combine 2 to 9 gases automatically.
• Instantaneous provision of required mixture with a mouse click.
• No calibration input required.
• Intuitive command structure.
• Automated flow implementation based on ratio and total flow.
• Error messages prevent selection out of range.
• Program multiple gas mixtures and timings.
• Store and retrieve settings.

Features

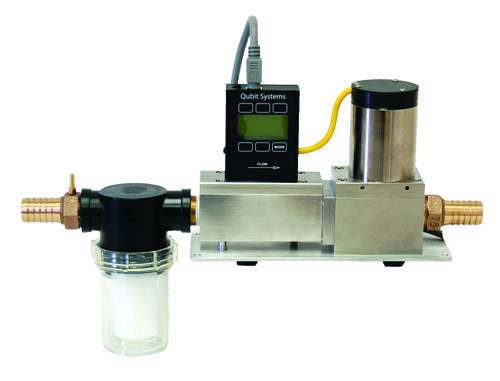

• Combine up to 9 gases using Qubit’s Mass Flow Controllers.
• Mass Flow Controller Ranges from 0.5 SCCM to +200 SLM.
• Mass Flow Controller accuracy 0.2 % full scale or 0.6% of reading.
• Multiple Alternate Gases may be used with each controller.
• 130 Different gas flow calibrations stored per controller.
• Pure or mixed gases used as input gas.
• Manual or software control of mixing.
• PC interface provided for software control.
