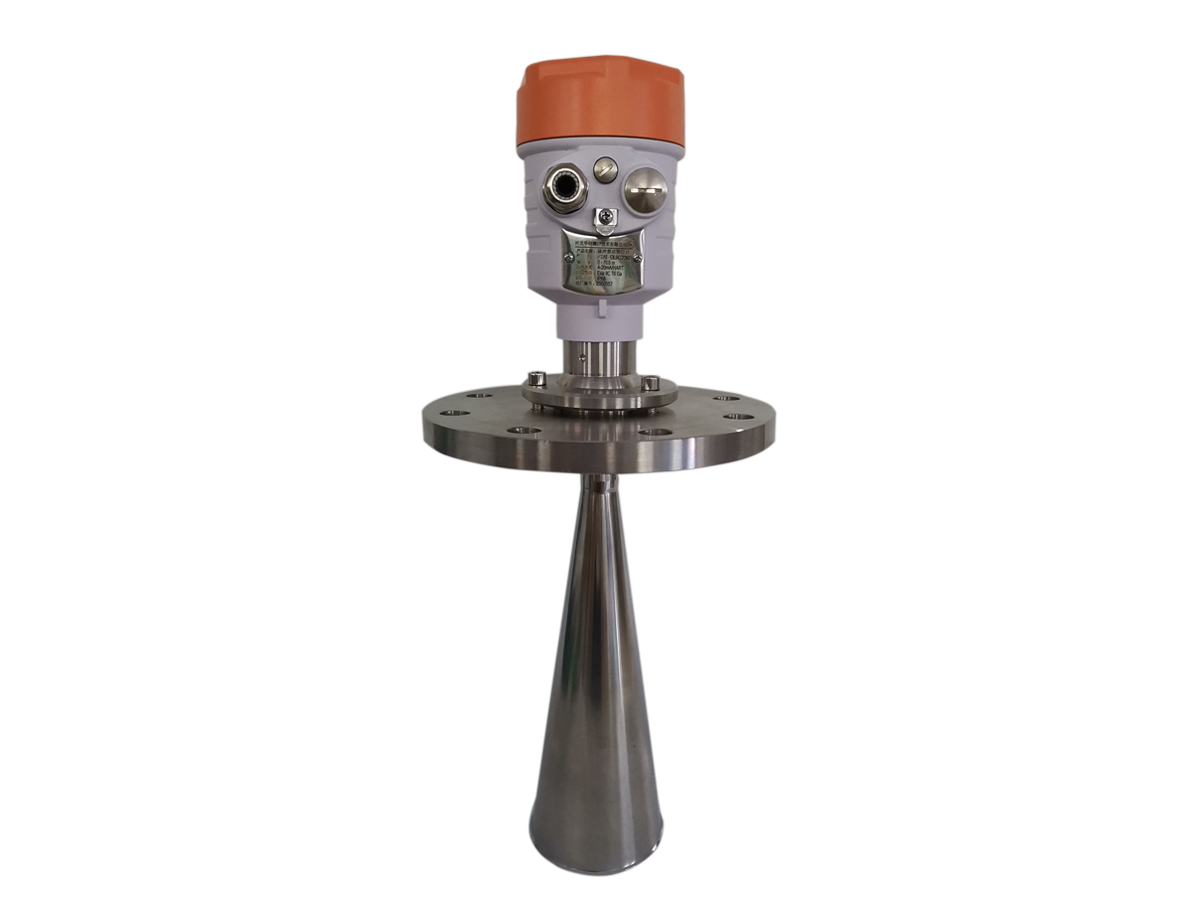

HCDAR-63 Non-Contact Radar Level Sensor thumbnail 1

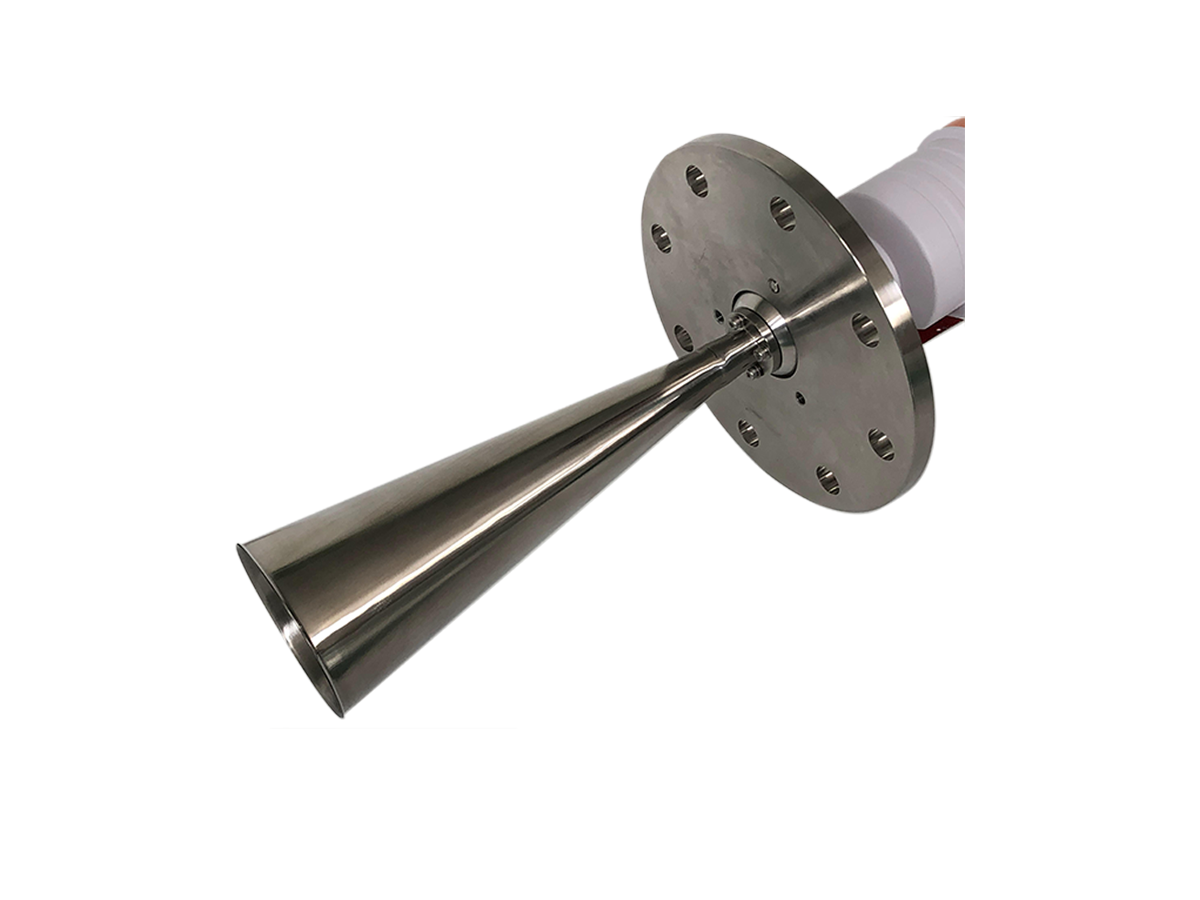

HCDAR-63 Non-Contact Radar Level Sensor thumbnail 2

HCCK

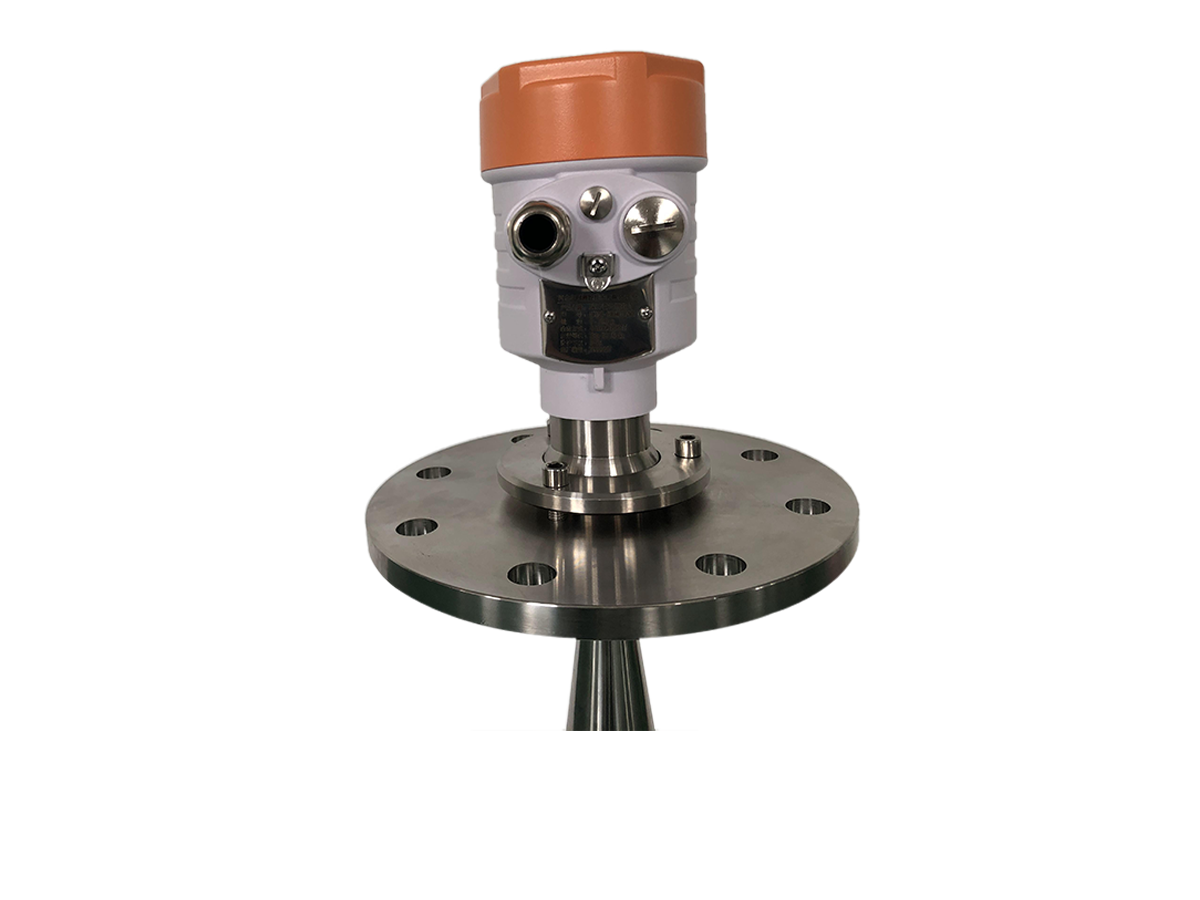

HCDAR-63 Non-Contact Radar Level Sensor

WaterLevel Measurement & Monitoring

HCDAR-63 series is 26G high frequency radar level measuring instrument, output 4-20mA/RS485 signal, the maximum range up to 70 meters. The horn antenna is further optimized and can add the air purge function. The new microprocessor can carry out signal analysis and processing at a higher rate. The sensor is stable and reliable for measuring all kinds of solid particles and powder. The universal flange can be configured to adjust the angle according to the material heap angle to obtain better echo signal.

Quantity

Overview

This series of HCDAR-6X adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 70 meters. Antenna is optimized further processing, the new microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

Advantages:

Small beam angle, energy concentrated, stronger ability anti-interference, the accuracy and reliability are greatly improved.
Small size antenna, convenient for installing.
Smaller measuring blind zone, works well for small tank
Shorter wavelength, more suitable for measuring the level of small particle materials
Non-contact measurement, no abrasion, no pollution.
Signal output has two options: two-wire 4-20mA @HART or four-wire RS485 @MODBUS protocol , four-wire power supply can reach 12V DC as low as possible.

Specification

Application	Solid Material, Solid Powder, All kinds Of Dust Environment
Measuring Range	0-70m
Process Connection	Thread, flange
Medium Temperature	-40 to 350 ℃
Process Pressure	-0.1 to 2.0 MPa
Accuracy	±15mm
Signal Output	4～20mA HART/RS485 MODBUS
Explosion Proof Grade	Ex ia IIC T1-T6 Ga/Ex d IIC T6 Gb
Protection Grade	IP68
Frequency Range	26 GHz
