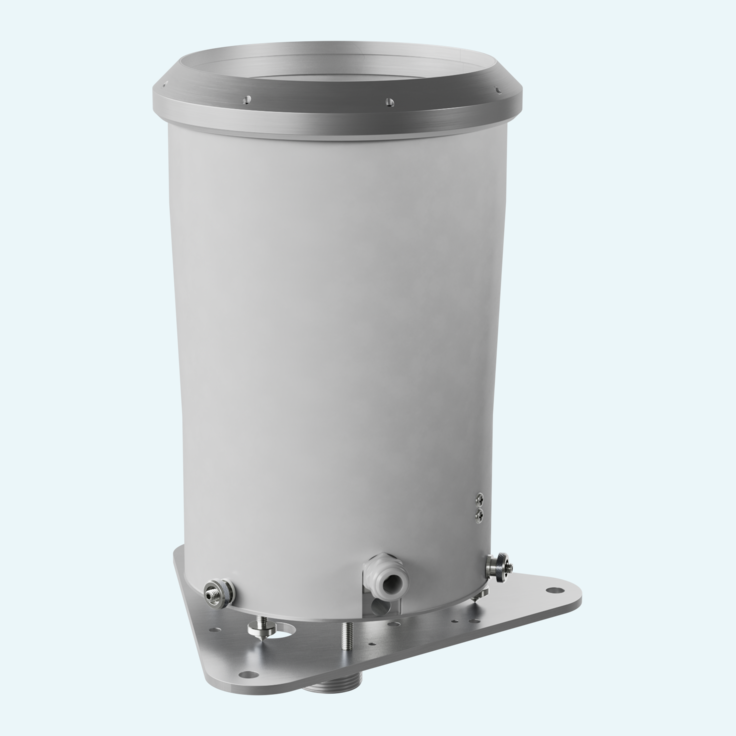

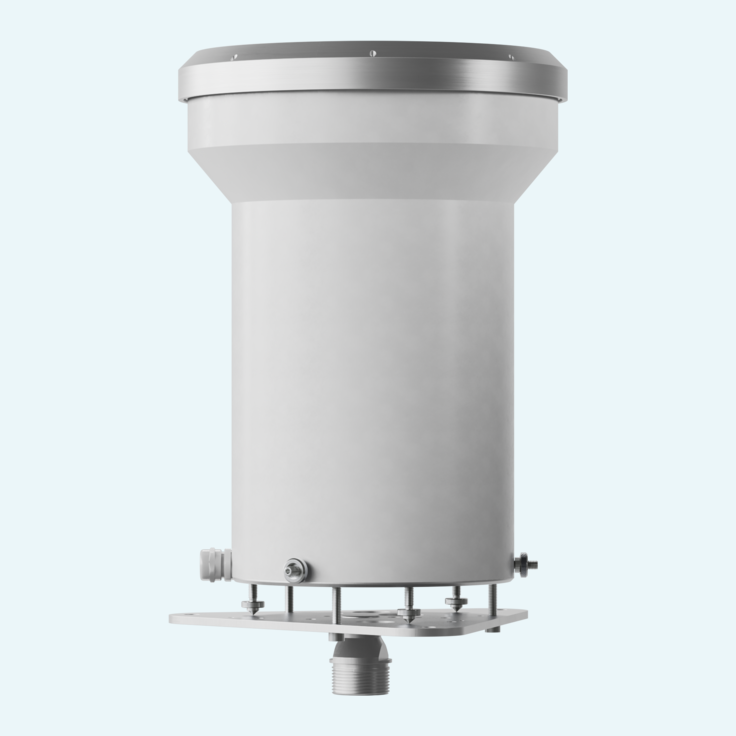

HD2013 Tipping Bucket Rain Gauge


Tipping bucket rain gauge for precipitation measurement and long-term environmental monitoring.

  • Measures liquid precipitation as standard; heated versions support mixed and solid precipitation down to -20 °C

  • Typical accuracy <±2% from 0…200 mm/h using correction curves

  • Contact, 4…20 mA, 0…10 Vdc or SDI-12 outputs, depending on version

  • Removable filter, corrosion-resistant materials and built-in bubble level

  • Ground-mounted installation or optional support bracket and mast

Quantity
1

Overview

The Senseca HD2013 Tipping Bucket Rain Gauge is a precipitation measuring instrument that uses the tipping bucket principle to measure rainfall. Liquid precipitation is measured as standard, while heated versions can measure liquid, mixed and solid precipitation down to -20 °C. It offers typical accuracy of <±2% from 0…200 mm/h when correction curves are applied.

The rain gauge features a rugged metal base, an aluminum collector cylinder, corrosion-resistant materials and a removable filter to prevent debris from entering the collector. A non-adherent treatment on the collector cone supports consistent water flow, while the built-in bubble level helps ensure correct horizontal installation. The instrument is supplied pre-calibrated, with the calibration value indicated on its label. Depending on the version, outputs include a voltage-free contact, 4…20 mA, 0…10 Vdc or SDI-12. Heated models operate at 12 Vdc or 24 Vdc, depending on the version, with heating activated around +4 °C to help prevent snow and ice accumulation. Installation is possible on the ground using adjustable support feet or above ground with an optional support bracket and mast.

Typical Applications

  • Rainfall measurement in weather stations

  • Precipitation monitoring for environmental studies

  • Rainfall data collection for hydrological monitoring

  • Liquid, mixed and solid precipitation measurement using heated versions

Key Features

  • Tipping bucket principle for rainfall measurement

  • Typical accuracy <±2% from 0…200 mm/h using correction curves

  • Heated versions measure liquid, mixed and solid precipitation down to -20 °C

  • Standard voltage-free contact output; optional 4…20 mA, 0…10 Vdc or SDI-12 outputs

  • Rugged metal base, aluminum collector cylinder and corrosion-resistant materials

  • Removable filter and non-adherent collector cone treatment for improved water flow

  • Built-in bubble level for correct horizontal positioning

  • Supplied pre-calibrated with the calibration value indicated on the instrument label

  • Adjustable support feet for ground installation or optional support bracket and mast for raised installation

Benefits

  • Provides rainfall data for long-term environmental monitoring

  • Supports accurate rainfall measurement using correction curves

  • Enables measurement of liquid, mixed and solid precipitation with heated versions

  • Allows integration with data loggers through multiple output options

  • Helps keep debris out of the collector with a removable filter

  • Promotes consistent water flow through the non-adherent collector cone treatment

  • Facilitates correct horizontal positioning with a built-in bubble level

  • Simplifies commissioning with factory calibration

  • Offers flexible installation using adjustable support feet or an optional support bracket and mast

Specifications

MEASUREMENT

Measuring Principle Tipping bucket
Measured Parameter Liquid precipitation; heated versions can measure liquid, mixed and solid precipitation
Measurement Accuracy Typically less than ±2% from 0 to 200 mm/h when using correction curves
Calibration Supplied calibrated, with the calibration value indicated on the product label

OUTPUT

Standard Output Voltage-free contact
Optional Outputs 4–20 mA, 0–10 V and SDI-12, depending on version
Correction Curves Can be stored in versions with analog outputs and SDI-12

HEATING

Heated Versions Available for measuring liquid, mixed and solid precipitation
Heating Power Supply 12 V DC or 24 V DC, depending on version
Heating Activation Heating activates at approximately +4 °C
Low-Temperature Measurement Heated versions support precipitation measurement down to −20 °C

CONSTRUCTION

Base Rugged metal base
Collector Aluminium collector cylinder
Material Resistance Corrosion-resistant construction materials
Filter Removable filter
Collector Surface Non-adherent surface treatment on the collection cone
Level Indicator Internal bubble level

INSTALLATION AND CALIBRATION

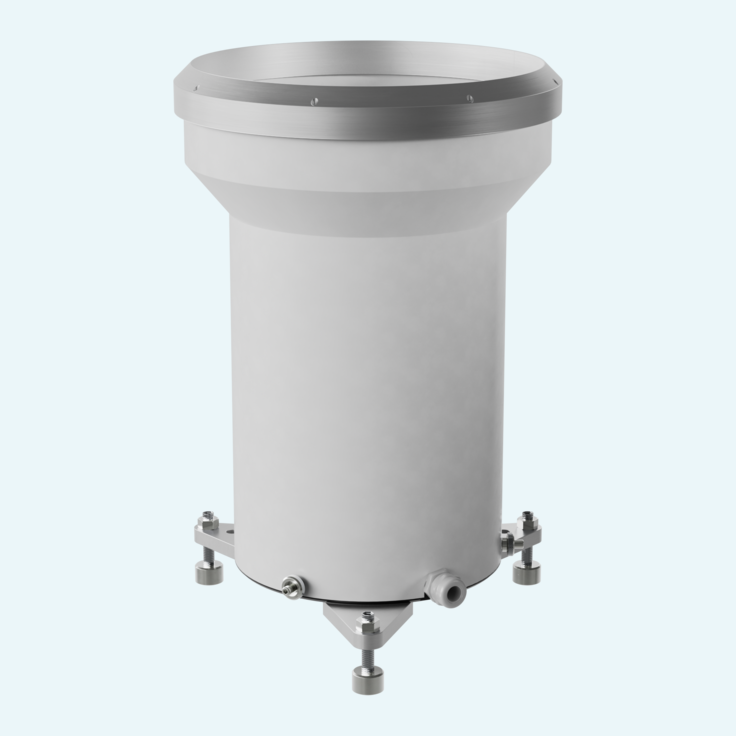

Ground Installation Can be installed on the ground using adjustable feet
Raised Installation Optional mounting bracket and mast available
Calibration Reference Calibration value provided on the product label
