HD2402 Photo-Radiometer
Portable photo-radiometer and datalogger for artificial optical radiation assessment.
- Six sensors: lux, UV, UVA, blue, IR and thermopile
- Supports Directive 2006/25/EC assessments
- Integrated laser pointer and standalone logging
Overview
The Senseca HD2402 is a portable photo-radiometer with an integrated datalogger, designed for reliable measurements in compliance with regulations on exposure to non-coherent (artificial) optical radiation. It supports photobiological safety assessments in industrial, healthcare and research environments under European Directive 2006/25/EC and Legislative Decree 81/2008, helping to identify and characterise potentially hazardous incoherent light sources.

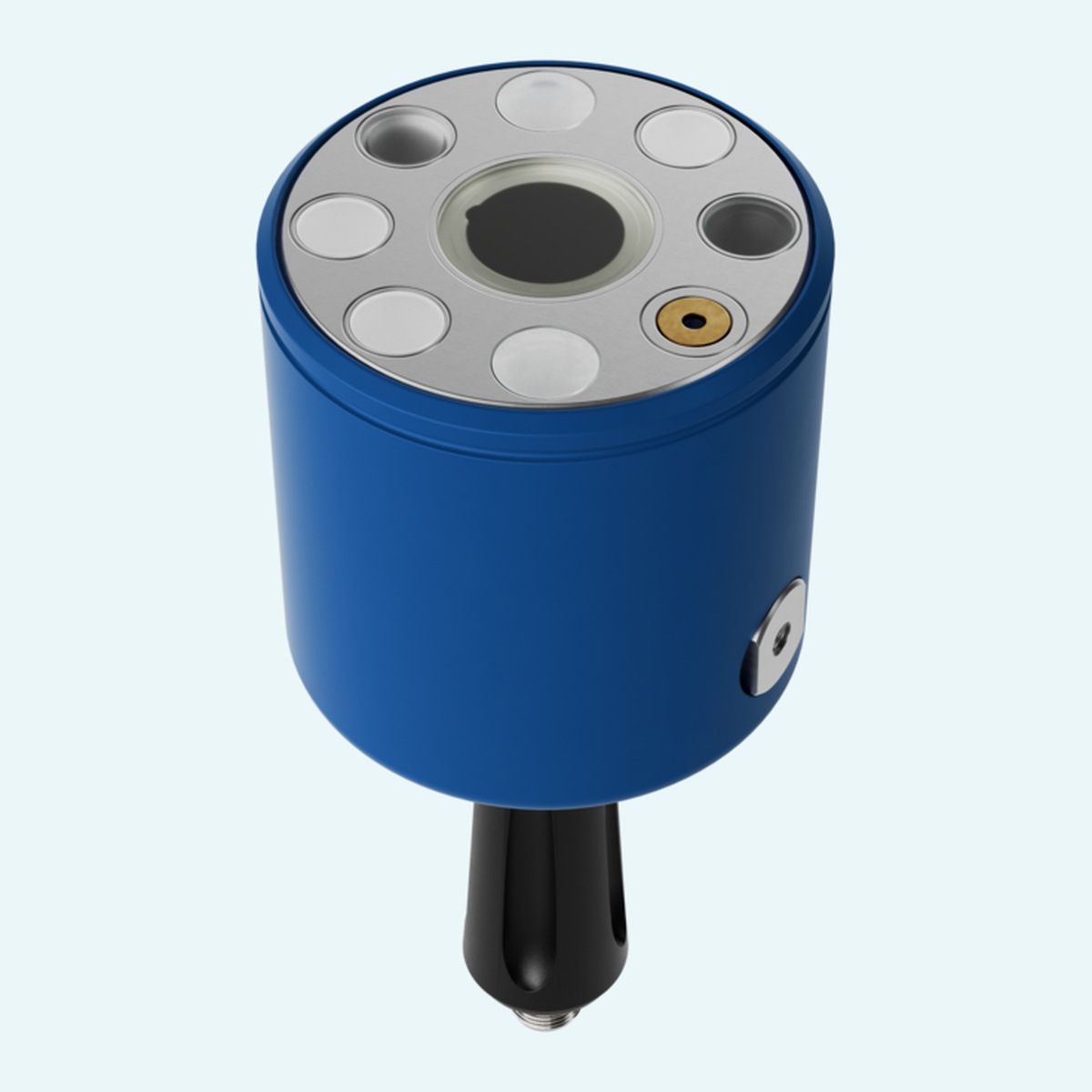

Six optical sensors cover illuminance, UV, UVA, blue light and IR bands, plus a thermopile for infrared irradiance from 400 to 2800 nm. An integrated laser pointer helps target the light source. Configured through the DeltaLog13 software, the HD2402 logs data on its own for unattended campaigns, or shows values in real time when connected to a PC.
Typical applications
- Artificial optical radiation (AOR) exposure assessment
- Photobiological safety assessments to Directive 2006/25/EC
- Occupational health and safety in industrial workplaces
- Healthcare environments
- Research environments
- Long-term, unattended monitoring campaigns
Key Features
- Six optical sensors: lux, UV, UVA, blue, IR and thermopile
- Spectral coverage from 220 nm to 2800 nm
- Integrated laser pointer for targeting the light source
- Integrated datalogger: 96,000 stored data (~26 hours continuous)
- Real-time acquisition when connected to a PC
- Manual start/stop button for recording
- Rear status LED shows active data acquisition
- DeltaLog13 software for setup, download and analysis
Benefits
- Full UV, visible, blue and IR coverage for AOR compliance in one instrument
- Records on its own once configured, ideal for long campaigns
- Easy to use, even for non-expert users
- Final report table with green, yellow and red risk indicators
Specifications
MEASUREMENT RANGES |
|
Illuminance (380…780 nm) | 0…399.9 lux; 0…3.999·10³ lux; 0…39.99·10³ lux; 0…399.9·10³ lux |
UV irradiance (220…400 nm, weighting S(λ)) | 0…39.99·10⁻³ W/m²; 0…399.9·10⁻³ W/m²; 0…3.999 W/m²; 0…39.99 W/m² |
UVA irradiance (315…400 nm) | 0…3.999 W/m²; 0…39.99 W/m²; 0…399.9 W/m²; 0…3.999·10³ W/m² |
Blue irradiance (400…700 nm, weighting B(λ)) | 0…399.9·10⁻³ W/m²; 0…3.999 W/m²; 0…39.99 W/m²; 0…399.9 W/m² |
IR irradiance (700…1300 nm, weighting R(λ)) | 0…3.999 W/m²; 0…39.99 W/m²; 0…399.9 W/m²; 0…3.999·10³ W/m² |
IR irradiance, thermopile (400…2800 nm) | 0…3.999·10³ W/m² |
DATALOGGER |
|
Memory capacity | 96,000 stored data (~26 hours continuous acquisition) |
Storage interval | Fixed 1 second |
Connection to PC | USB port through CP24H adapter cable (M12 – USB-A) |
Software | DeltaLog13 |
POWER REQUIREMENT |
|
Power supply | 5 Vdc / 1 A (mains adapter SWD05) |
ENVIRONMENTAL |
|
Operating conditions | -5…50 °C, 0…85% RH no condensation |
Storage temperature | -25…65 °C |
MECHANICAL |
|

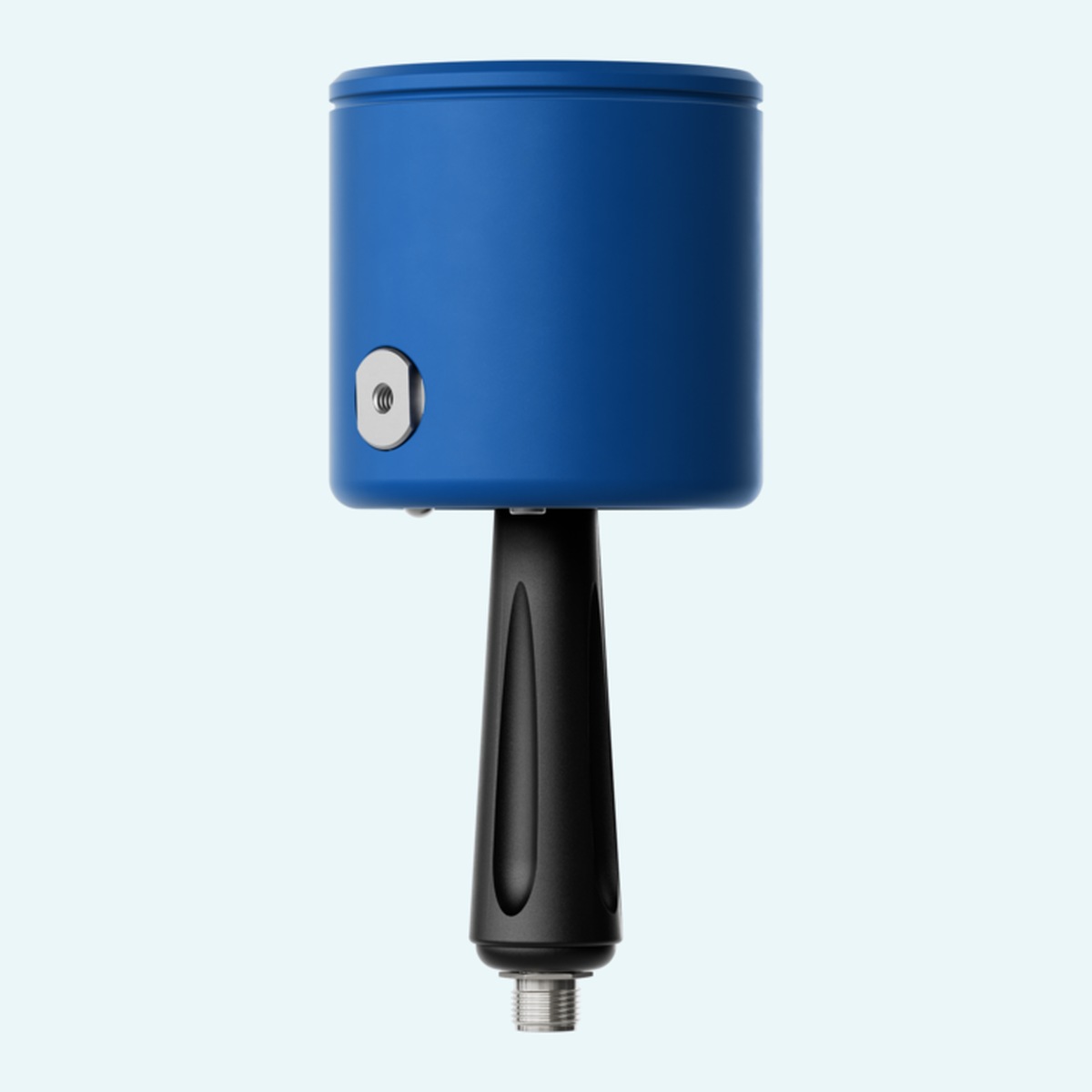

Dimensions | Ø 76 mm, 163 mm long (with M12x1 connector) |
Weight | 500 g approx. |
Materials | Aluminium alloy / rubber protection sleeve |
ORDERING CODES |
|
HD2402 | Multi-sensor photo-radiometer. Supplied with CH20-ROA hardware key for software enablement, CP24H connection cable, SWD05 power supply unit, VTRAP30 tripod, instruction manual, carrying case and compliance report. |
Drawing

Downloads
| HD2402 Datasheet (EN) | DownloadHD2402 Datasheet (EN) |
|---|---|
| HD2402 User Manual (EN) | DownloadHD2402 User Manual (EN) |
