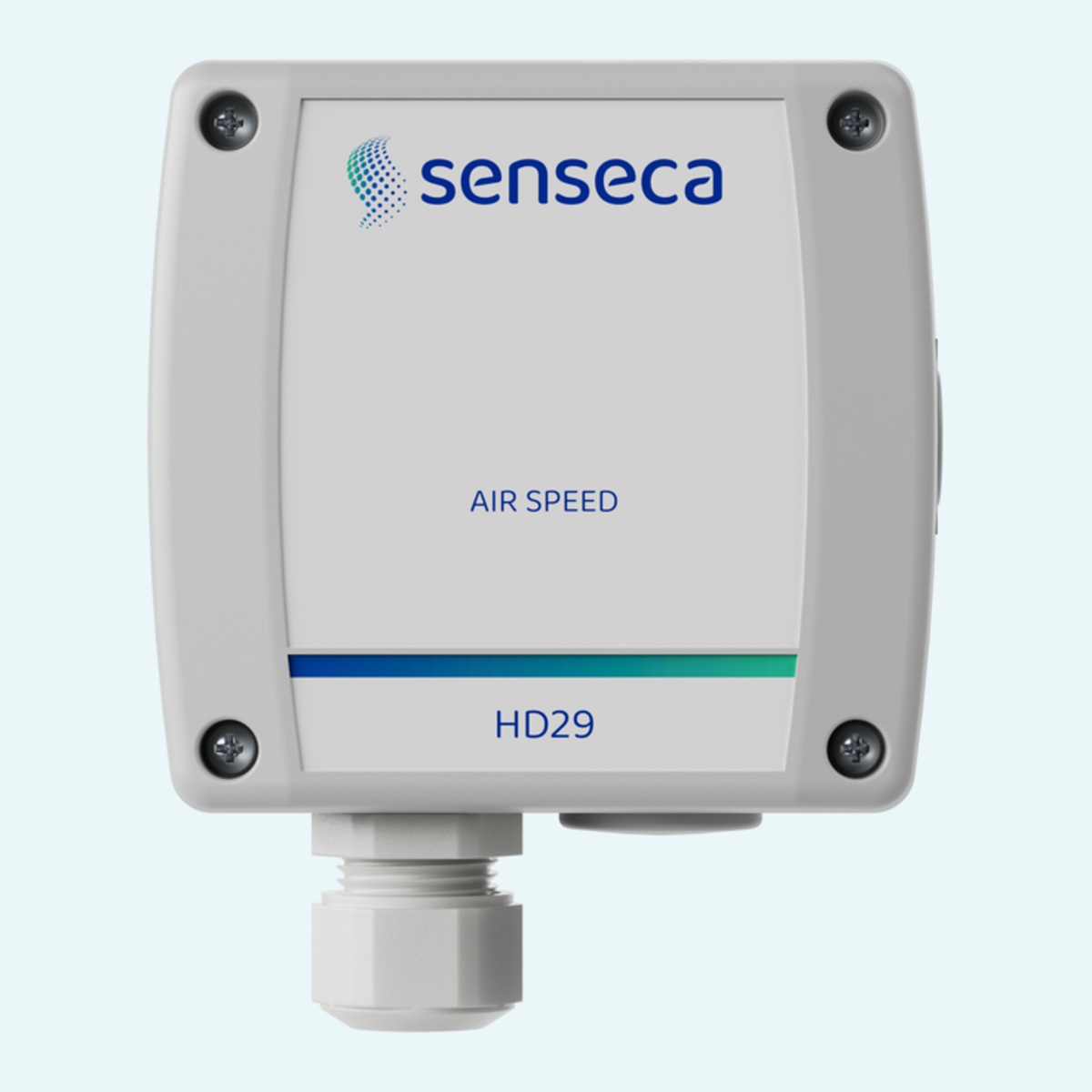

HD29 Air Speed Transmitter


Air speed transmitter for HVAC and BEMS, with optional temperature and humidity.

  • Air speed 0.05…20 m/s, thermal sensor
  • 4…20 mA, 0…10 Vdc or RS485 Modbus output
  • Stainless steel probe, IP65 housing
Quantity
1

Overview

The Senseca HD29 series are active transmitters for air speed, with optional temperature and relative humidity, for HVAC and BEMS systems. They are built for the pharmaceutical sector, museums, clean rooms, industrial facilities and households, as well as crowded spaces such as cafeterias, gymnasiums and auditoriums, and agricultural uses such as livestock farms.

A thermal air speed sensor covers 0.05…20 m/s, with an NTC temperature sensor and capacitive RH sensor on the 370 and 371 models. Outputs are active 4…20 mA (HD29A…), 0…10 Vdc (HD29V…) or RS485 Modbus-RTU / ASCII (HD29S…). The AISI304 stainless steel probe is available fixed to the housing or connected by cable, with a graduated scale on the stem for accurate positioning in ducts. Transmitters are factory calibrated and housed in an IP65 enclosure.

Typical applications

  • HVAC and BEMS air speed monitoring
  • Pharmaceutical facilities and clean rooms
  • Museums
  • Industrial facilities
  • Cafeterias, gymnasiums and auditoriums
  • Livestock farms
  • Households

Key Features

  • Air speed 0.05…20 m/s, with optional temperature and RH
  • 4 configurable speed ranges on analog models
  • Active 4…20 mA, 0…10 Vdc or RS485 Modbus-RTU / ASCII output
  • FAST or SLOW response time to suit turbulence
  • Fixed duct probe or probe with 2, 5 or 10 m cable
  • AISI304 stainless steel stem with graduated scale
  • Configured by DIP switch or digital command
  • IP65 housing, factory calibrated

Benefits

  • Accurate, reliable air speed, temperature and humidity readings over time
  • Rugged stainless steel probe for demanding conditions
  • Flexible installation with fixed or cable-connected probes
  • Ready to use out of the box, no adjustment needed

Specifications

SENSORS



Air speed

Thermal

Temperature

NTC

Relative humidity

Capacitive





MEASURING RANGE



Air speed (HD29A…, HD29V…)

Configurable: 0.05…1 m/s; 0.1…2 m/s; 0.2…10 m/s; 0.2…20 m/s

Air speed (HD29S…)

0.05…20 m/s

Temperature

-10…+60 °C

Relative humidity

0…100%





ACCURACY



Air speed (@ 50% RH, 1013 hPa)

±(0.1 + 3% of reading) m/s up to 1 m/s; ±(0.15 + 3%) m/s up to 2 m/s; ±(0.5 + 3%) m/s up to 10 m/s; ±(0.7 + 3%) m/s up to 20 m/s

Temperature

±0.3 °C

Relative humidity

±1.5% (10…90%) / ±2% (remaining range) @ T = 15…35 °C; ±(1.5 + 1.5% of reading)% @ remaining T range

Resolution (HD29S…)

0.01 m/s; 0.1 °C; 0.1% RH

Air temperature compensation for speed

0…+80 °C





OUTPUTS AND POWER



Output

Active 4…20 mA (HD29A…); 0…10 Vdc (HD29V…); RS485 Modbus-RTU or ASCII proprietary protocol (HD29S…)

Power supply

24 Vac ±10% or 18…40 Vdc (HD29A…, HD29V…); 18…30 Vdc (HD29S…)

Power consumption

< 100 mA (+ output current in HD29A… models)

Electrical connections

Screw terminal block, max 1.5 mm², PG9 cable gland





ENVIRONMENTAL



Operating conditions

-10…+60 °C (housing); -30…+100 °C (probe); speed sensor: clean air, RH < 80%

Storage temperature

-10…+70 °C

Protection degree

IP65





MECHANICAL



Materials

Housing: ABS; front labels: polycarbonate; probe stem: stainless steel

Probe stem length (fixed probe, TO1 / TO2 / TO3)

HD29x300: 150 / 250 / 350 mm; HD29x370: 180 / 280 / 380 mm; HD29x371: 215 / 415 / 565 mm

Probe stem length (cable probe, TC1 / TC2 / TC3)

HD29x300: 145 / 245 / 345 mm; HD29x370: 175 / 275 / 375 mm; HD29x371: 215 / 415 / 565 mm





ORDERING CODES



Type of output

A = active 4…20 mA; V = 0…10 V; S = RS485

Measured quantities

300 = air speed; 370 = air speed and temperature; 371 = air speed, temperature and RH

Probe type

TO1 / TO2 / TO3 = horizontal fixed probe (short / medium / long stem); TC1 / TC2 / TC3 = probe with cable (short / medium / long stem)

Cable length (TC models only)

02 = 2 m; 05 = 5 m; 10 = 10 m

Note

Fixing accessories and PC connecting cable must be ordered separately
