HD403TS / HD4V3TS Hotwire Air Speed Transmitter


Hotwire air speed transmitter for ventilation ducts and clean rooms.

  • Ranges 0.1…5.00 m/s or 0.20…40 m/s
  • 4…20 mA (HD403TS) or 0…10 Vdc (HD4V3TS) output
  • Directional, omnidirectional, flexible or tripod probe
Quantity
1

Overview

The Senseca HD403TS and HD4V3TS are active hotwire air speed transmitters for measuring and controlling air speed in ventilation ducts, clean rooms and extractor fans, and for indoor air quality (IAQ) monitoring. They use a hotwire sensor in a directional or omnidirectional probe version.

The HD403TS series has a 4…20 mA output and the HD4V3TS series a 0…10 Vdc output. Two measuring ranges are available: 0.20…40 m/s for the directional probe models (…TS1, …TS3) and 0.1…5.00 m/s for the omnidirectional probe models (…TS2, …TS4). The transmitters are factory calibrated, the response time is selectable by jumper, and the electronics are housed in an IP67 case.

Typical applications

  • Ventilation ducts
  • Clean rooms
  • Extractor fans
  • Indoor air quality (IAQ) monitoring

Key Features

  • Hotwire air speed sensor
  • Directional, omnidirectional, flexible directional or tripod-mounted probe
  • Measuring range 0.20…40 m/s (directional) or 0.1…5.00 m/s (omnidirectional)
  • 4…20 mA output (HD403TS) or 0…10 Vdc output (HD4V3TS)
  • Response time 0.2 s (fast) or 2.0 s (slow), selected by jumper
  • IP67 electronics housing
  • Factory calibrated, no further adjustment required
  • 2 m standard cable

Benefits

  • Ready to use: factory calibrated with no adjustment needed
  • Current or voltage output to suit your control system
  • Probe options for duct, flexible or free-standing installation
  • Fast or slow response to suit steady or turbulent flow

Specifications

AIR SPEED



Measuring range (…TS1, …TS3)

0.20…40.0 m/s

Measuring range (…TS2, …TS4)

0.1…5.00 m/s

Accuracy

±(0.2 m/s + 3% f.s.)

Response time (selected by jumper)

0.2 s (fast); 2.0 s (slow)





OUTPUTS AND POWER



HD403TS… output

4…20 mA (RL < 500 Ω)

HD403TS… power supply

12…40 Vdc or 24 Vac

HD4V3TS… output

0…10 Vdc (RL > 10 kΩ)

HD4V3TS… power supply

16…40 Vdc or 24 Vac

Connection

3-wire cable (VEL, GND, +Vcc)





ENVIRONMENTAL



Operating temperature (electronics)

0…+60 °C

Operating temperature (probe)

0…+80 °C

Compensation temperature

0…+80 °C

Storage temperature

-10…+80 °C

Sensor working conditions

Clean air, RH < 80%

Electronics protection class

IP67





MECHANICAL



Case dimensions

60 x 66 x 35 mm (without probe)

Standard cable length

2 m

Directional probe (…TS1)

235 mm, Ø 8 mm

Omnidirectional probe (…TS2)

250 mm, Ø 8 mm

Flexible directional probe (…TS3)

330 mm, Ø 8 mm

Omnidirectional probe with tripod (…TS4)

Ø 100 mm sphere, 276 mm high on VTRAP30 tripod





ORDERING CODES



HD403TS1 / HD4V3TS1

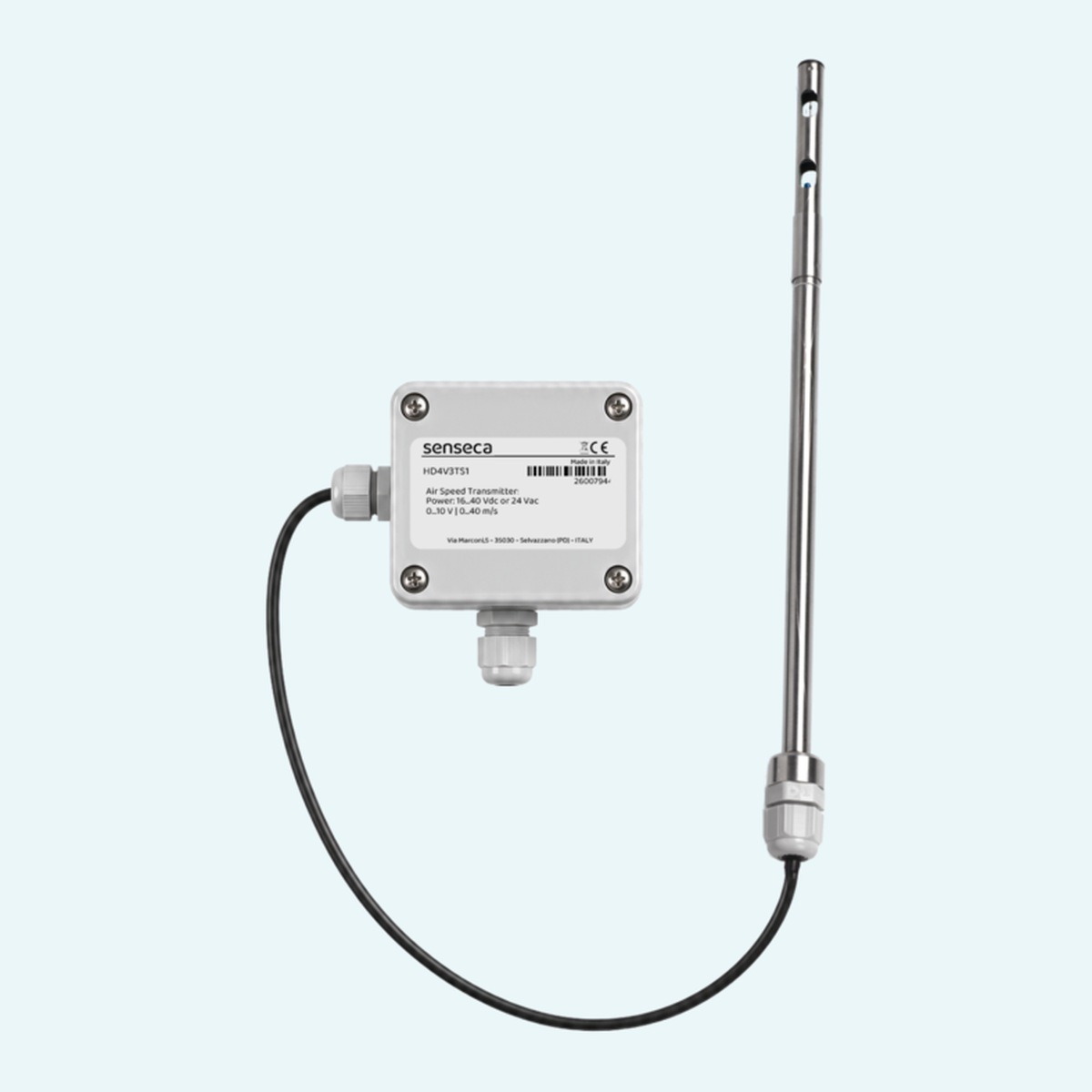

Directional probe, 4…20 mA / 0…10 Vdc

HD403TS2 / HD4V3TS2

Omnidirectional probe, 4…20 mA / 0…10 Vdc

HD403TS3 / HD4V3TS3

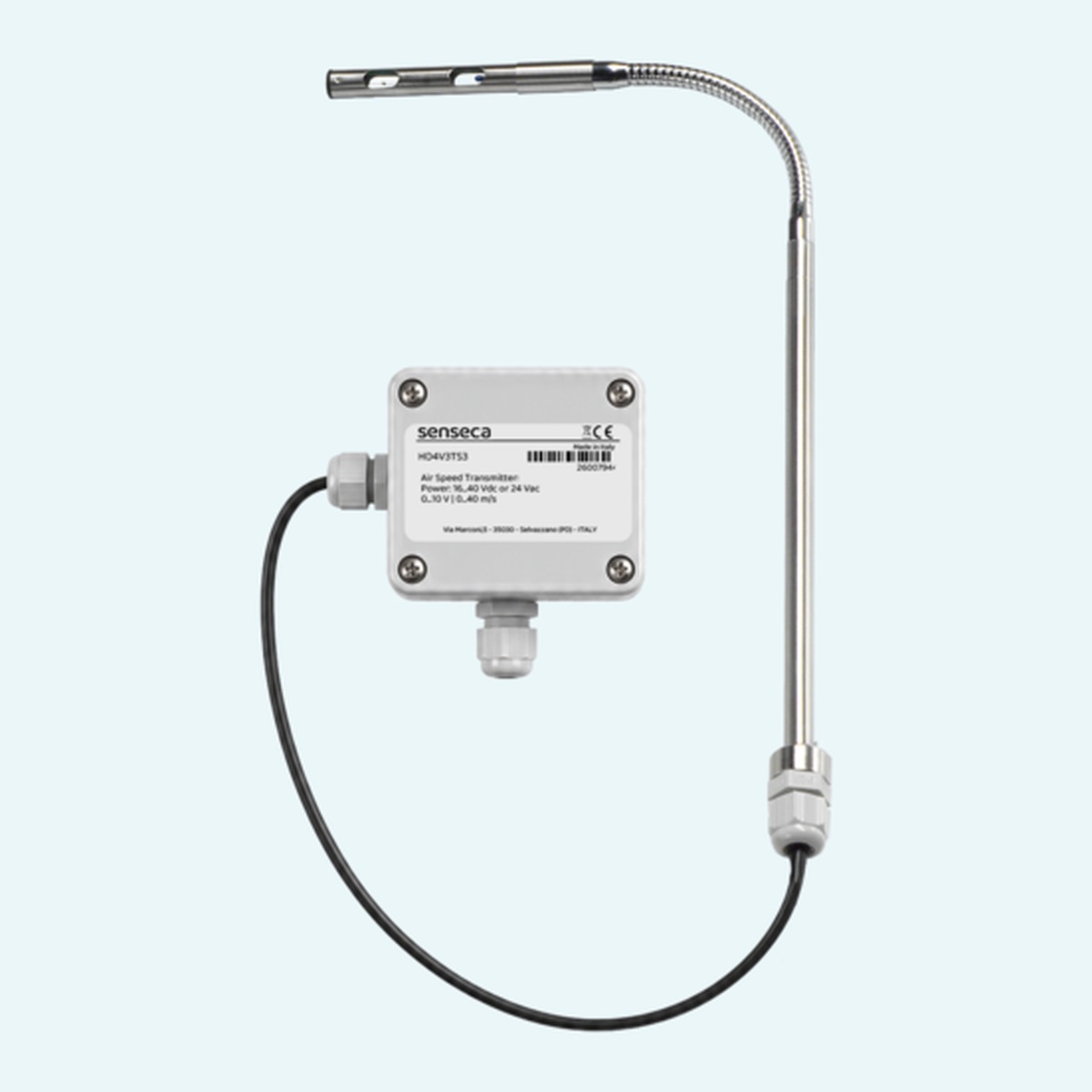

Flexible directional probe, 4…20 mA / 0…10 Vdc

HD403TS4 / HD4V3TS4

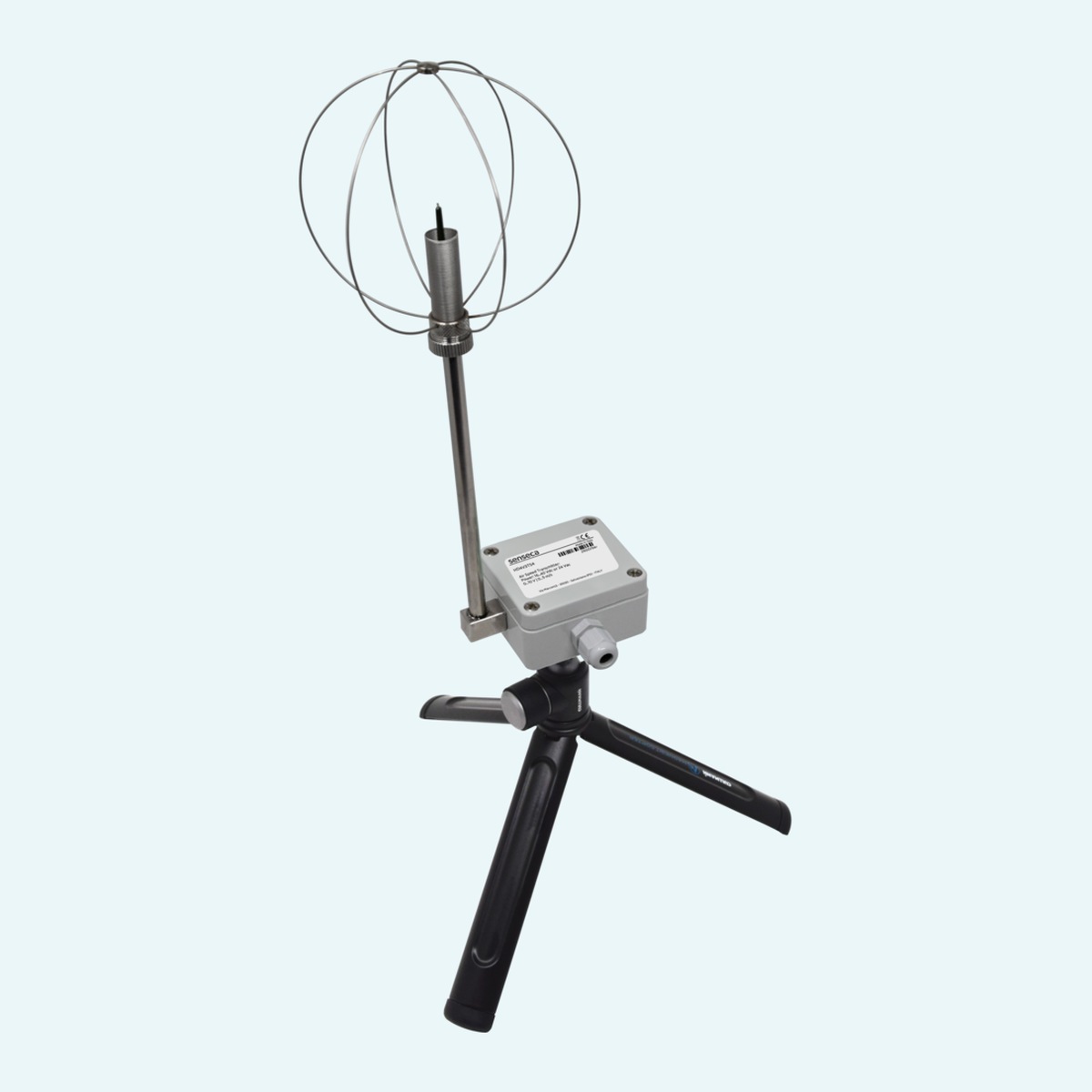

Omnidirectional probe with tripod, 4…20 mA / 0…10 Vdc





OPERATIONAL



Calibration

Factory calibrated

Warranty

24 months from date of invoice

Drawing

HD403TS-HD4V3TS-Air-Velocity-Transmitter 4

Downloads

HD403T-HD4V3T Family Datasheet (EN) DownloadHD403T-HD4V3T Family Datasheet (EN)
