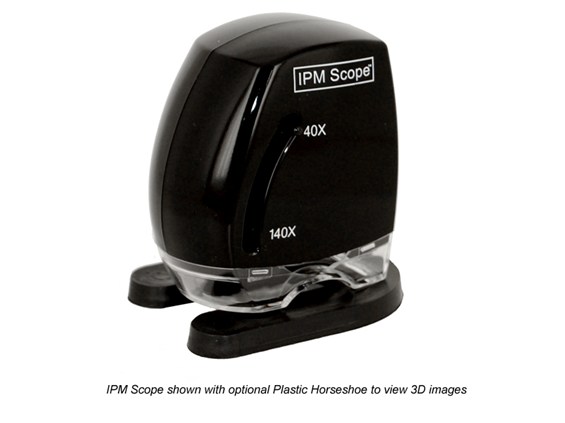

Spectrum Technologies

IPM Scope

Soil & CropsImage Analysis System

The IPM Scope combines a digital camera, precision optics and LED lighting into a powerful handheld microscope and imaging software package. Zoom in on fine details of plant disease symptoms, or insects. Instead of straining to look into a tiny eyepiece, place the IPM Scope over the leaf and view the magnified image right on your computer screen.

Quantity

Overview

Features:

View live images on the computer screen
Measures 40X and 140X magnification
Completely portable when connected to a laptop computer
Archive still images or send files via e-mail
Add labels, markers, time stamps and measurement scale
Draw directly on the live image
Combines a digital camera, precision optics and LED lighting into a powerful handheld microscope
Connects to your computer’s USB port
Includes software required to capture and archive your still images
Software allows you to customize your images with labels, markers, time stamps and measurement scale
Video software upgrade provides the ability to capture live videos and time lapse sequences of insect movement

	Regular IPM Scope	IPM Scope Megapixel
Image Sensor	1/3” CMOS	1/3” CMOS
Pixels	640 x 480	1600 x 1200
Power	USB port	USB 2.0 Port
Light Source	Super-bright LEDs	Super-bright LEDs
Field of View	@40X: 7.5 x 10 mm @140X: 1.8 x 2.5 mm	@12X 20 X 25 mm @40X: 8 x 10 mm @140X: 2.5 x 3 mm
Resolution	4 microns @ 140x magnification	<2 microns @ 140x magnification
