Photon Systems Instruments (PSI)

LED Light Source SL 3500

Soil & CropsPhotosynthesis Chlorophyll & Respiration

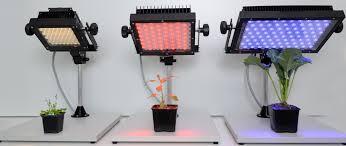

LED Lights SL 3500 are arrays of high-performance light emitting diodes (LEDs) that are easily controllable in timing (from microseconds to hours) and intensity (from 1 % to 100 % of total output).

Quantity

Overview

High light output up to 3,000 µmol.m^-2.s^-1 at the distance of 20 cm
Uniform light distribution over the desired area
Precise intensity control in the range of 1 % to 100 %
Minimum undesirable heating effects to experimental material
Hardware or software control of the light regime and intensity
Different color versions
Standard colors available: white cold, white warm, blue royal, blue, green red-orange, red
Tri-color versions available in 20 x 20 cm and 20 x 30 cm sizes
Long lifetime of LEDs (min. 60,000 hours)

Specification

PPFD	Up to 3,000 µmol.m^-2.s^-1 at the distance of 20 cm
Light Sources	Light emitting diodes (LEDs): 455 nm, 530 nm, 617 nm, cool white (4,500 - 10,000 K) and others
Custom-Designed Protocols (Optional)	Variable timing and scripts
Communication Port	I2C communication (used for Light Controller LC 100 and Light Studio Controller)
Standard Accessory	Stand with a holder
Power Input	From 75 to 500 W (depends on the version and LED color)
Electrical	90-240 V
