Aquaread

LeveLine-Mini-CTD

WaterLevel Measurement & MonitoringWater Quality MeasurementData Logger (Water)

The LeveLine-Mini can be purchased with a conductivity sensor included to give level, temperature, conductivity and salinity readings. This sensor comes with a connector on the back end of the probe so it can be connected to the Leveline PC kit for calibration using the LeveLink PC software.

Quantity

Overview

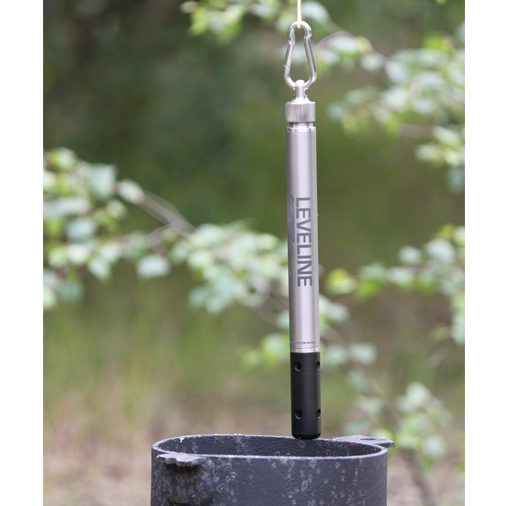

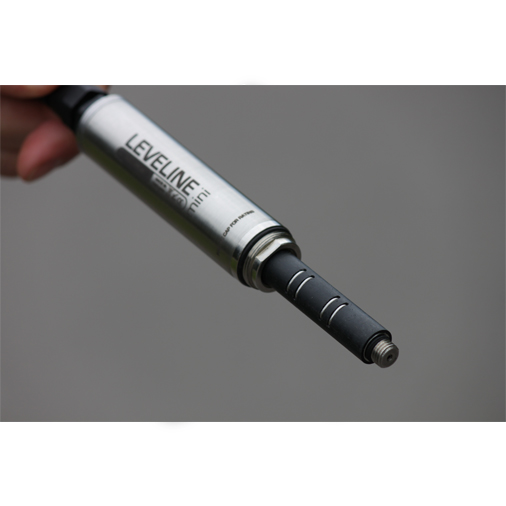

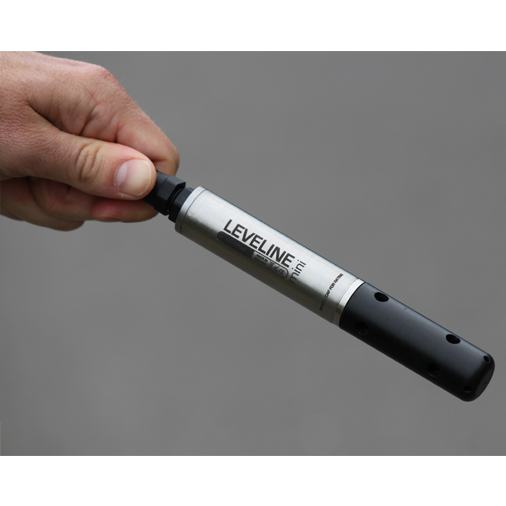

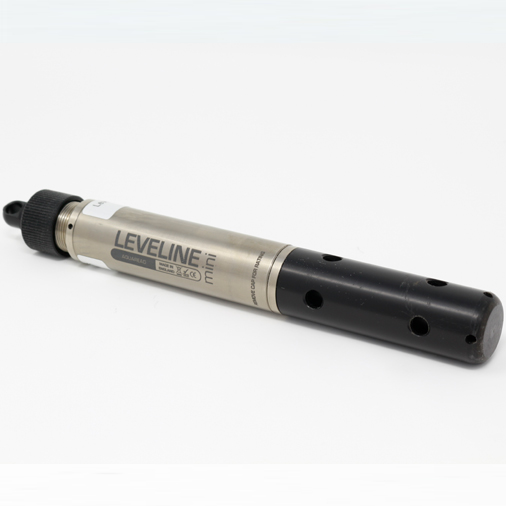

The LeveLine-Mini-CTD adds conductivity and salinity measurements to the small SDI-12 ready sensor. Like the standard LeveLine-Mini, the CTD version is housed in a titanium body making it suitable for deployment in both fresh and salt waters. It also features the same titanium connector as the larger LeveLine loggers. The connector allows the unit to be connected to your PC or to the GPS LeveLine Meter to calibrate the conductivity sensor.

The LeveLine-Mini-CTD is available in both absolute and gauge versions. If your chosen datalogger / telemetry device includes a built-in air pressure sensor, we recommend the absolute version as the logging device can utilise the air pressure reading for compensation. If an air pressure sensor is unavailable then the gauge version is best suited for telemetric logging.

Gauge sensors require vented cables and desiccant cartridges to remove any moisture from the vent to prevent blocking and inaccurate compensation
