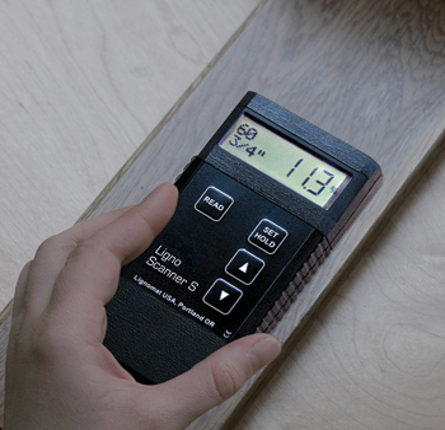

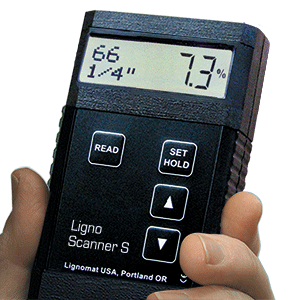

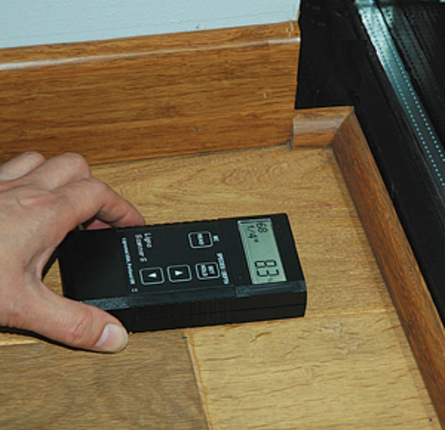

Ligno-Scanner S Pinless Moisture Meter
Climate
Moisture Meters
The Ligno-Scanner S gives true wood moisture readings in percent with built-in corrections for different species.
Quantity
1
Enquire Now
Add to Enquiry Cart
Overview
Specification
Downloads
Related Products
Overview
Quickly scan large number of boards without leaving pinholes
No effort is required to push pins into hardwood
Pinless meters can read lower moisture values in hardwood than pin meters
Specification
Measuring Range
5-60% dependent upon species setting*
Display
0.1% resolution for the entire range.
Species Corrections
71 wod group settings, or simpy use the specifi graviy of the wood, betwee 0.3 and 1.0 (setting 30-100)
Measuring Depth
1/4″ measuring depth
Reference Scale
0-99 for non-wood building materials
Size
Pocket-size 2″ x 5.5″x0.5″, Measuring pad 1 5/8″ x 2 5/8″
Weight
8 ounces (200g), made out of high-impact plastic
