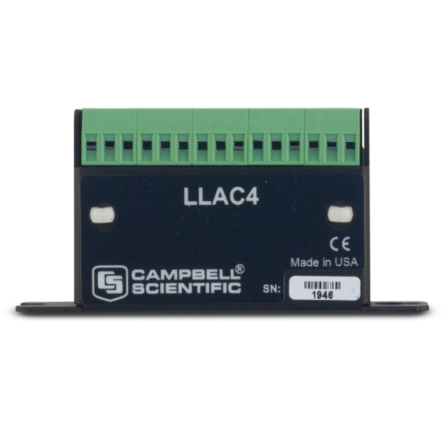

LLAC4 4-Channel Low-Level AC-Conversion Module

ClimateCommunications

The LLAC4 enables four data logger control ports to emulate pulse-counting channels by converting the low-level ac signals to logic levels read by the control ports. To use the LLAC4, the data logger control ports must accept high frequency pulses. The LLAC4 typically measures anemometers but can measure other sensors that output pulse counting signals.

Quantity

Overview

The LLAC4 is a small peripheral that you can use to increase the number of low-level ac signals that your data logger can monitor.
The LLAC4 is often used to measure up to four anemometers, and it is especially useful for wind profiling applications.
Ideal for applications that require high numbers of pulse channels, but fewer control ports, such as in wind prospecting

Specification

Function	Increases the number of low-level ac signals that a data logger can monitor.
Number of Channels	4
Power	0.1 mA (@ 12 Vdc)
Input Hysteresis	16 mV (@ 1 Hz)
AC Coupling Removal of DC Offset	AC Coupling Removal of DC Offset
Maximum AC Input Voltage	±20 V
Cable Length	0.6 m (2 ft)
Dimensions	5.4 x 8.0 x 2.5 cm (2.1 x 3.1 x 1.0 in.) without base mounting flanges 5.4 x 11.2 x 2.5 cm (2.1 x 4.5 x 1.0 in.) with base mounting flanges
Weight	92 g (3.2 oz)
