Senseca

LPPAR01 PAR Probe

Passive PAR probe for indoor photosynthetic photon flux monitoring.

  • Measures 0…5000 µmol·m-2s-1 over a 400…660 nm spectral range
  • Cosine-corrected diffuser for angular light measurement
  • No external power supply, individually calibrated
Quantity
1

Overview

The Senseca LPPAR01 is a PAR probe that measures the number of photons striking a surface per second and per unit area in the PAR (Photosynthetically Active Radiation) region. It is built for indoor applications that need constant monitoring of light, and it has a cosine-corrected diffuser.

The probe needs no external power supply. Light hitting the photodiode generates a photocurrent, which is converted into a potential difference through a shunt resistor and read by a voltmeter. The PAR value is then calculated with the probe's calibration factor. Each probe is individually calibrated, and its sensitivity factor is marked on the housing. The output signal can also be amplified or converted into a 4…20 mA or 0…10 Vdc signal.

Typical applications

  • Indoor photosynthetic photon flux (PAR) monitoring
  • Plant-focused light monitoring
  • Indoor applications that require constant monitoring of light in the PAR region

Key Features

  • Photon flux measurement from 0…5000 µmol·m-2s-1
  • Spectral range 400 nm…660 nm
  • Cosine-corrected diffuser
  • Typical sensitivity 30 µV/µmol·m-2s-1
  • Calibration accuracy <6%
  • Passive mV output, no external power supply needed
  • Individually calibrated, with the sensitivity factor marked on the housing
  • Compact Ø 30 mm x 38 mm body

Benefits

  • Measures photons, not just brightness, for plant-focused indoor light monitoring
  • Passive output with no external power supply, which keeps wiring simple
  • Cosine-corrected diffuser supports readings across different incidence angles
  • Individual calibration with the factor marked on the housing allows direct calculation of the PAR value

Specifications

MEASUREMENT



Typical sensitivity

30 µV/µmol·m-2s-1

Measuring range

0…5000 µmol·m-2s-1

Spectral range

400 nm…660 nm





ACCURACY



Calibration accuracy

<6%

Cosine response / directional error (f2)

<6%





OUTPUT



Output signal

Passive mV signal from the photodiode with shunt resistor

Output impedance

1 kΩ

Signal conversion

Can be amplified or converted into 4…20 mA or 0…10 Vdc

Reading instrument

Digital multimeter with input resistance >100 kΩ for 1% reading precision





POWER REQUIREMENT



Power supply

Not required (passive output)





ENVIRONMENTAL



Operating temperature

0…50°C

Application

Indoor use





MECHANICAL



Dimensions

Ø 30 mm x 38 mm height

Cable length

5 m

Construction

Photodiode, filter, diffuser, case and cable

Downloads

LPPAR01 Family Datasheet (EN) DownloadLPPAR01 Family Datasheet (EN)

Related Products

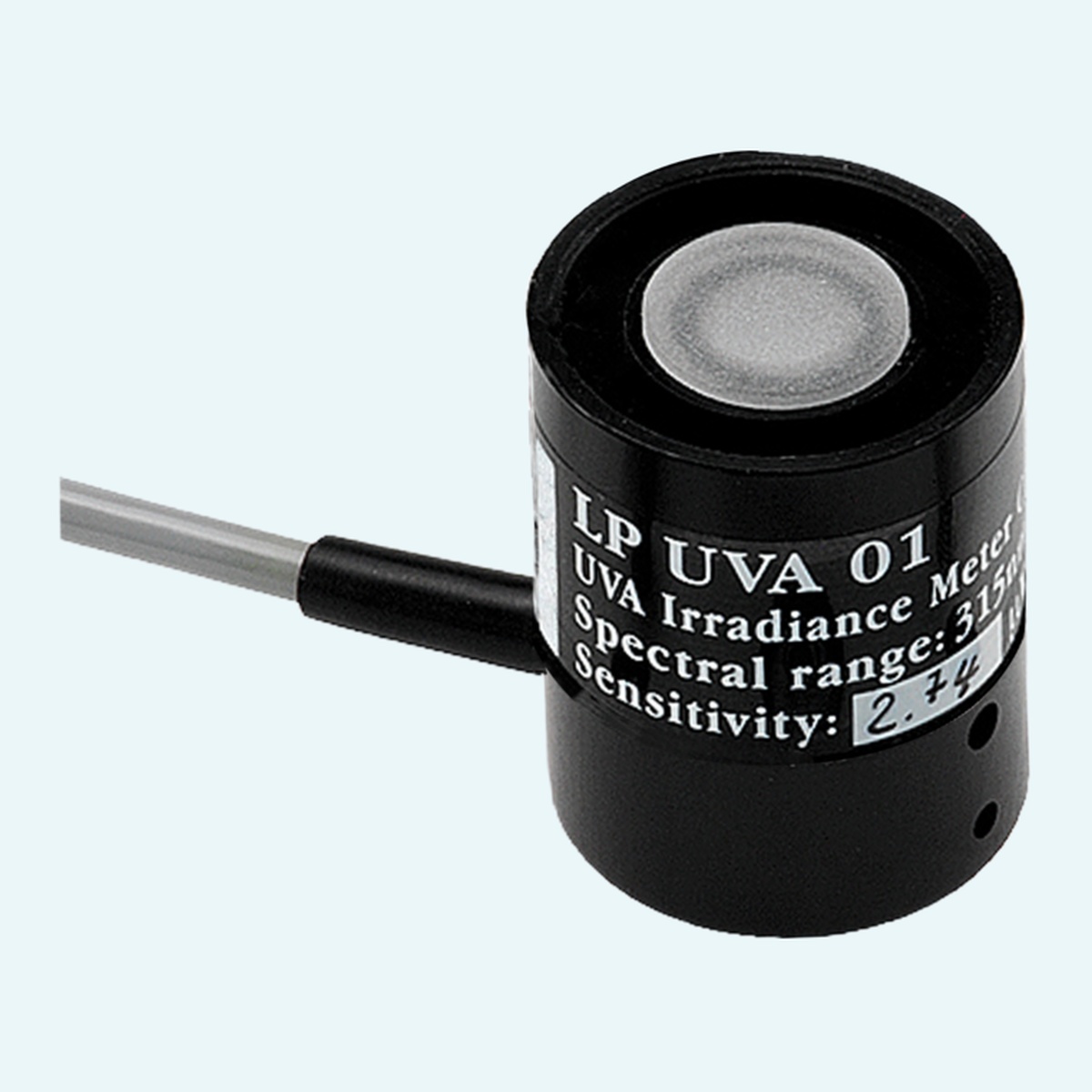

LPUVA01 UVA Radiometric Probe

Senseca

LPUVA01 UVA Radiometric Probe

UVA irradiance probe for indoor monitoring, measuring 0…200 mW/cm² in the 315–400 nm range with a passive mV output, blind to visible and infrared light.

Learn More
LPRAD01 Radiometric Probe

Senseca

LPRAD01 Radiometric Probe

Radiometric probe for indoor VIS-NIR irradiance, measuring 0…200 mW/cm² from about 400 to 1050 nm with a passive mV output.

Learn More

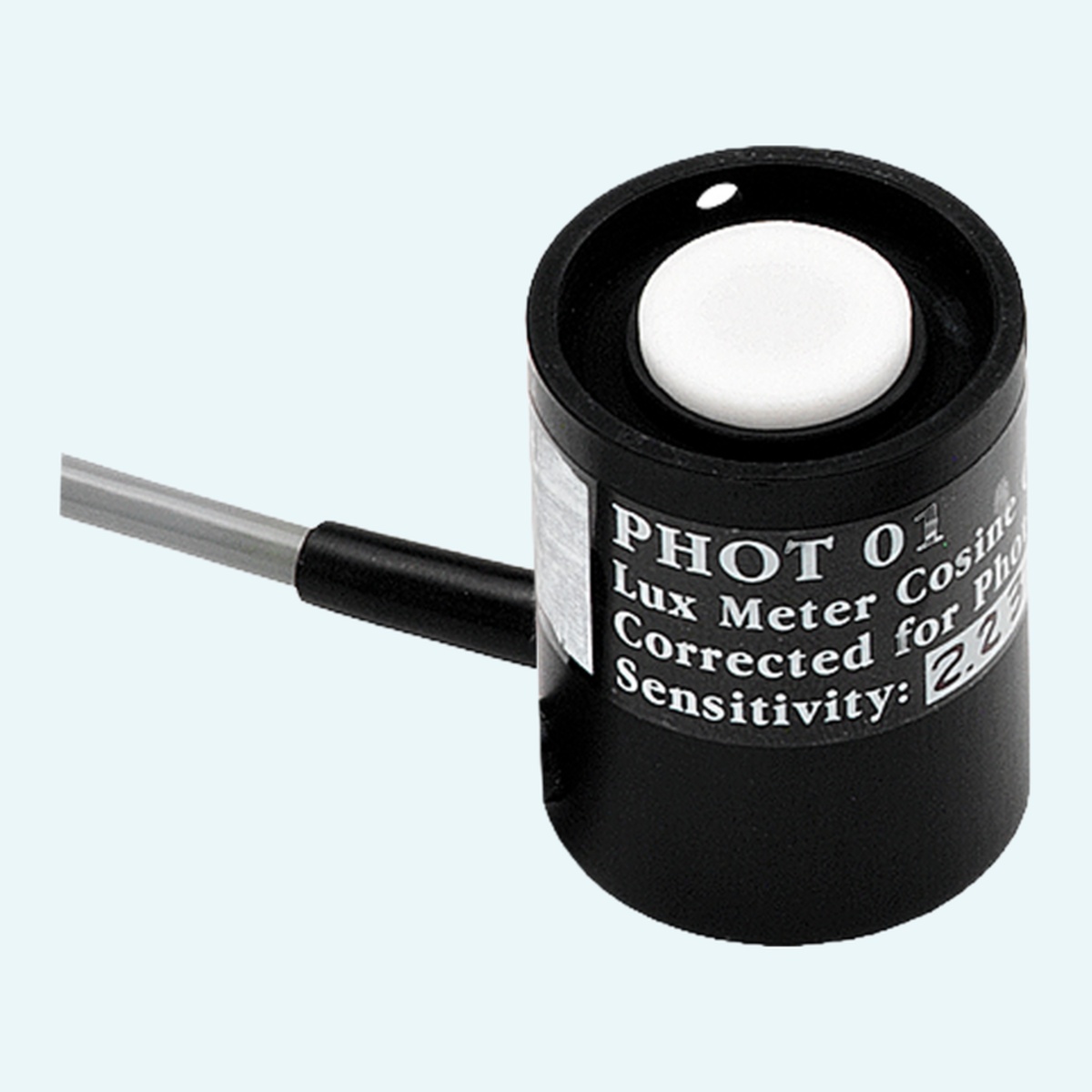

LPPHOT01 Photometric Probe
