Senseca

LPPHOT01 Photometric Probe

Class B photometric probe for indoor illuminance monitoring.

  • Measures illuminance from 0…200 klux with V(λ) spectral response
  • Cosine-corrected diffuser for angular light measurement
  • No external power supply, individually calibrated
Quantity
1

Overview

The Senseca LPPHOT01 is a class B luxmeter probe that measures illuminance, defined as the luminous flux (lumen) passing through a surface divided by the surface area (m2). Its spectral response follows the standard photopic curve V(λ), the same as the human eye, and it has a cosine-corrected diffuser. It is suitable for indoor applications that need constant monitoring of light.

The probe needs no external power supply. The photodiode signal is given in mV through a resistor shunting the photodiode ends, and the measured value is calculated with the calibration factor. Each probe is individually calibrated, with the sensitivity factor marked on the housing. Calibration is done against a luxmeter calibrated by a Primary Metrological Institute, using a standard illuminant A (a reference incandescent lamp at 2856 K). The output signal can also be amplified or converted into a 4…20 mA or 0…10 Vdc signal.

Typical applications

  • Indoor illuminance (lux) monitoring
  • Indoor applications that require constant monitoring of light

Key Features

  • Class B luxmeter probe for illuminance measurement
  • Measuring range 0…200 klux
  • V(λ) spectral response, matching the standard photopic curve
  • Cosine-corrected diffuser
  • Typical sensitivity 0.5…1.5 mV/klux
  • Calibration accuracy <4%
  • Passive mV output, no external power supply needed
  • Individually calibrated, with the sensitivity factor marked on the housing

Benefits

  • Readings follow the response of the human eye, thanks to the V(λ) spectral response
  • Wide range up to 200 klux for indoor illuminance monitoring
  • Passive output with no external power supply, which keeps wiring simple
  • Individual calibration, with the factor marked on the housing, allows direct calculation of the measured value

Specifications

MEASUREMENT



Luxmeter class

Class B

Typical sensitivity

0.5…1.5 mV/klux

Measuring range

0…200 klux (0…200000 lux)

Spectral range

V(λ)





ACCURACY



Calibration accuracy

<4%

V(λ) match error (f'1)

<6%

Cosine response / directional error (f2)

<3%

Linearity (f3)

<1%

Fatigue (f5)

<0.5%





OUTPUT



Output signal

Passive mV signal from the photodiode with shunt resistor

Output impedance

0.5…1 kΩ

Signal conversion

Can be amplified or converted into 4…20 mA or 0…10 Vdc





POWER REQUIREMENT



Power supply

Not required (passive output)





ENVIRONMENTAL



Operating temperature

0…50°C

Application

Indoor use





MECHANICAL



Dimensions

Ø 30 mm x 38 mm height

Downloads

LPPHOT01 Family Datasheet (EN) DownloadLPPHOT01 Family Datasheet (EN)

Related Products

LPUVA01 UVA Radiometric Probe

Senseca

LPUVA01 UVA Radiometric Probe

UVA irradiance probe for indoor monitoring, measuring 0…200 mW/cm² in the 315–400 nm range with a passive mV output, blind to visible and infrared light.

Learn More
LPRAD01 Radiometric Probe

Senseca

LPRAD01 Radiometric Probe

Radiometric probe for indoor VIS-NIR irradiance, measuring 0…200 mW/cm² from about 400 to 1050 nm with a passive mV output.

Learn More

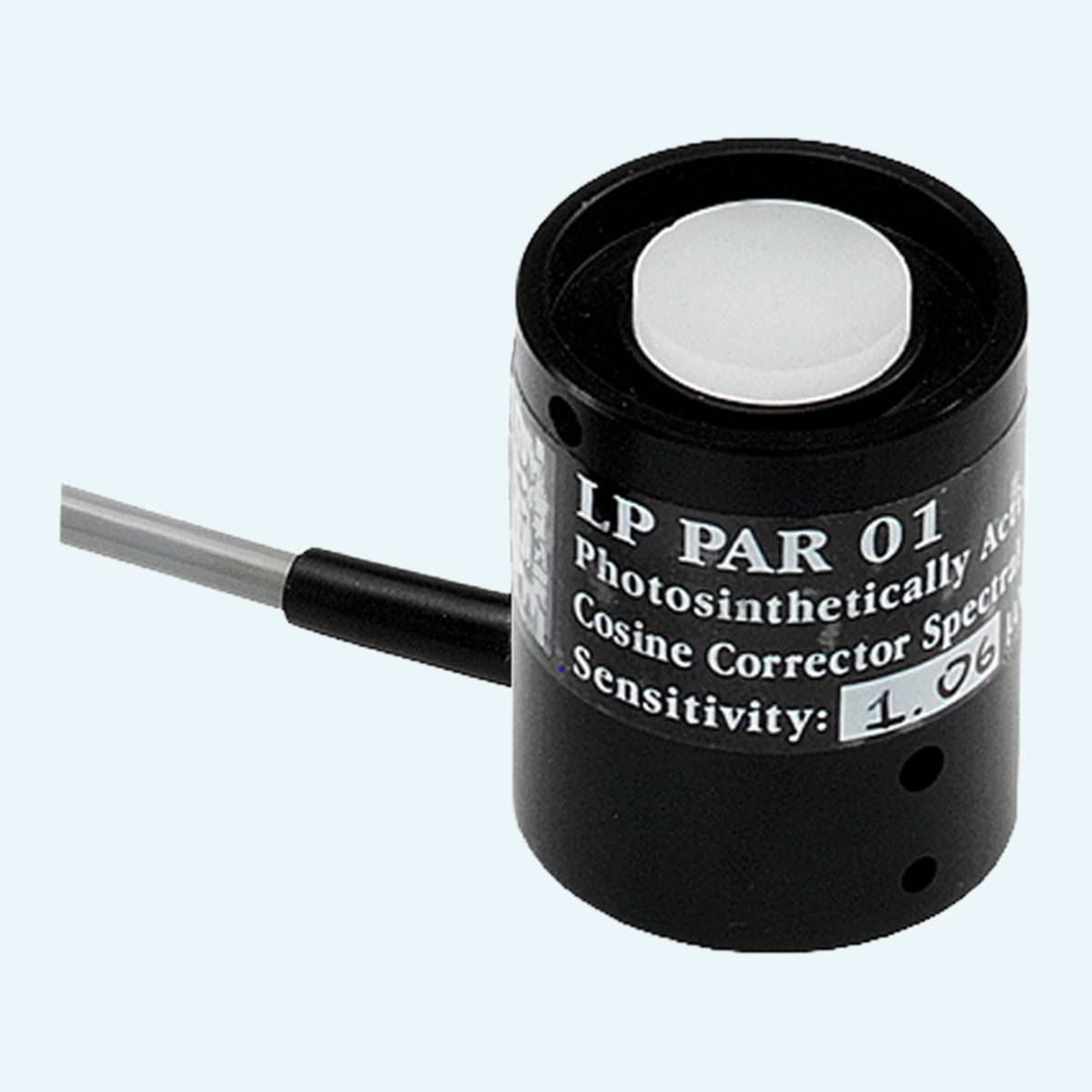

LPPAR01 PAR Probe
