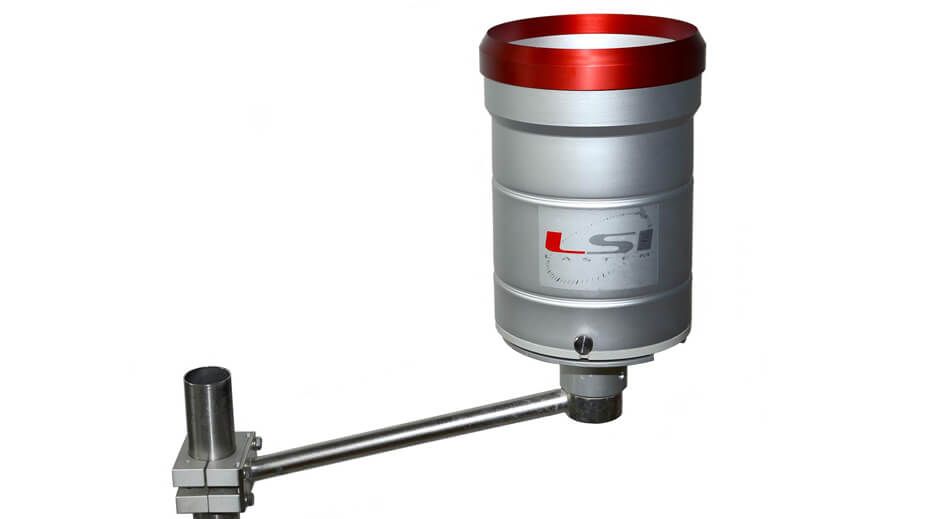

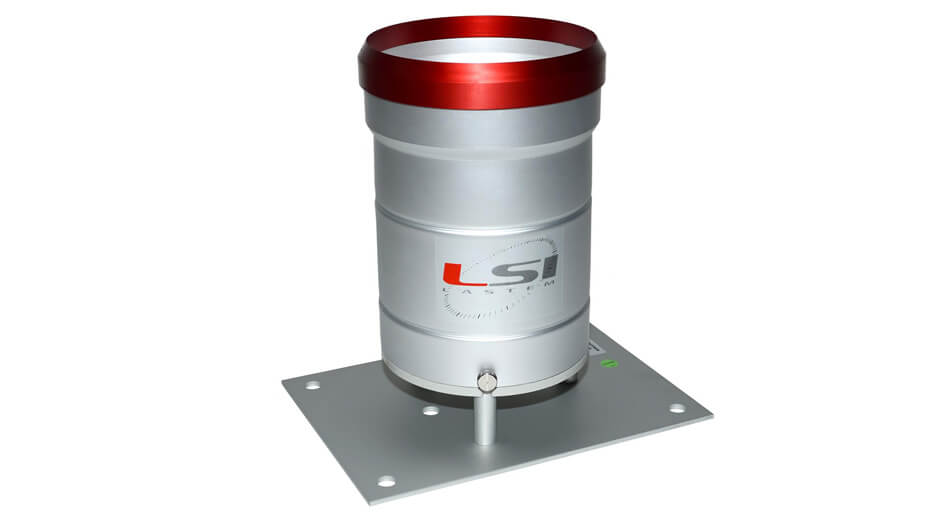

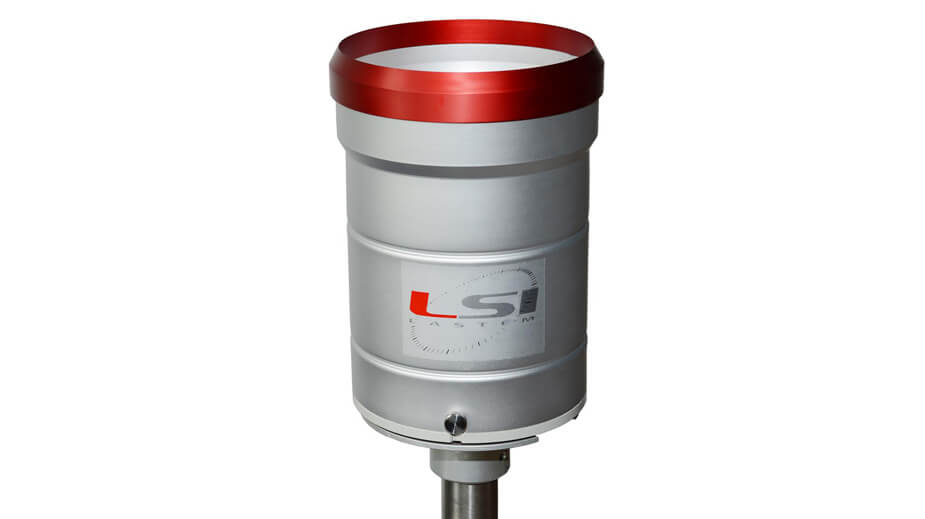

LSI Lastem Rain Gauge

ClimateMeteorological Station & Sensors

Wide range of sensors to measure the quantity and intensity of precipitation. Our rain gauges are composed of a precipitation collection funnel that conveys the water into a double-tank receiver connected to a magnet. The magnet activates a read relay which generates a pulse that can be counted from an external counter.

Class A models are available which, following calibration in an internal laboratory, comply with the European standard UNI EN 17277: 2020, which defines the accuracy for measuring intensity and how to calibrate the instrument and correct the data.

Quantity

Overview

Highlights

Design made in compliance to WMO Class A (UNI11452:2012) accuracy over intensity (see PN);
Syphone to adjust the water flow (see PN);
Allumium made for rugged installations;
Heated versions availability (see PN);
Inpulse output and external optional devices for 4-20 mA or Modbus outputs (XLA003.1/003.2).

Available Models

	DQA230	DQA231	DQA230.1	DQA231.1	DQA235	DQA236	DQA230A.3
Class A	Yes	Yes	Yes	Yes	Yes	Yes	No

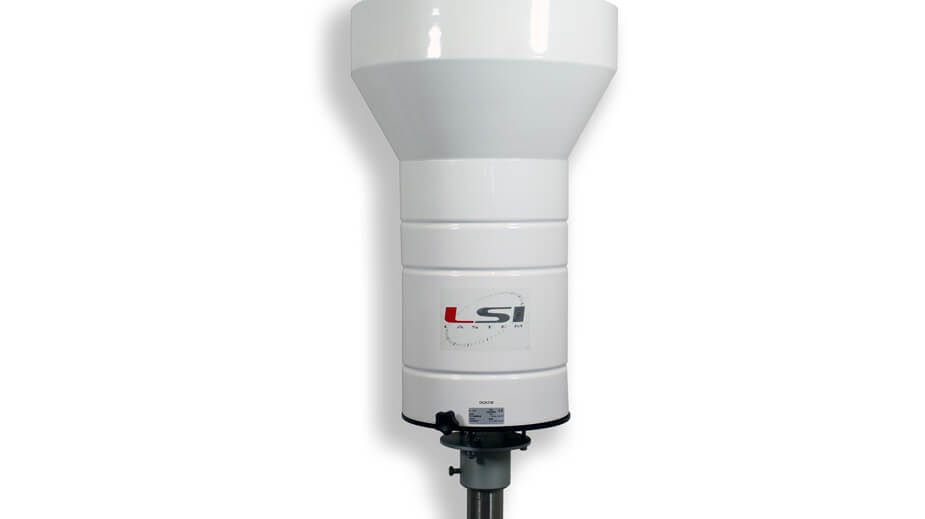

Diameter	203 mm	203 mm	203 mm	203 mm	360 mm	360 mm	203 mm
Collector Area	323 cmq	323 cmq	323 cmq	323 cmq	1000 cmq	1000 cmq	323 cmq
