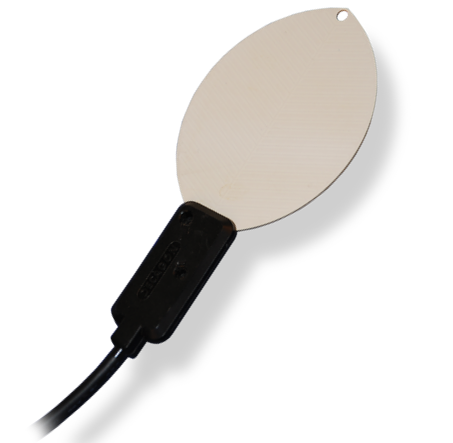

LWS-L Leaf-Wetness Sensor

ClimateSoil & CropsMeteorological Station & SensorsPhotosysnthesis Chlorophyll & Respiration

The LWS, manufactured by METER Environment, can detect small amounts of water or ice on the sensor surface for leaf wetness applications. Because the LWS measures the dielectric constant of the sensor’s upper surface, it can detect the presence of water or ice anywhere on the sensor’s surface.
Quantity
1

Overview

  • Imitates characteristics of a leaf
  • Does not require painting or calibration of individual sensors
  • Detects trace amounts of water or ice on the leaf surface

Specification

Measurement Description Dry, frosted, wet
Signal Type/Output Analog voltage
Measurement Time 10 ms
Power 2.5 Vdc @ 2 mA to 5 Vdc @ 7 mA
Output 250 to 1500 mV (millivolt reading relates to moisture state)
