Geolux

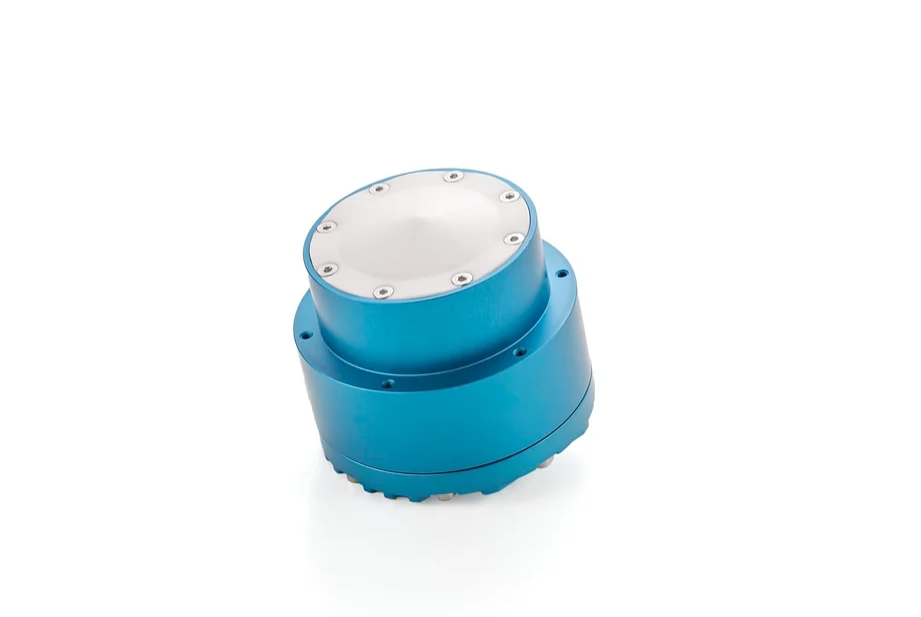

LX-80 Radar Level Sensor
Geolux LX-80 series of instruments are advanced contactless radar level meters designed for precise distance measurement from the instrument to the surface of the various fluids. More info.↗
Overview
Product Highlights
- Contactless water level measurement
- The narrowest beam measurement angle on the market (2.5°)
- RS-232, RS-485 Modbus, SDI-12, analog 4-20 mA interfaces in all models
- Remote configuration of all instrument parameters through any digital communication interface
- Robust small size IP68 aluminum or stainless steel enclosure
Applications
- Water level monitoring for rivers, channels and lakes
- Early flood warning
- Water reservoir monitoring and irrigation control
- Observing the level of various fluids in the chemical industry
- Fluid and solid level tracking in the food industry
- Monitoring levels in waste water, industrial applications, and tanks
Specification
General Specifications
| Radar Type | W-band 77-81 GHz FMCW radar |
|---|---|
| Beam Angle | 5° |
| Detection Distance | 8 m / 15 m / 30 m |
| Resolution | 0.5mm |
| Accuracy | +/- 2 mm |
| Sampling Frequency | 1 sps / 10 sps optional |
| IP Rating | IP68 |
Electrical & Mechanical

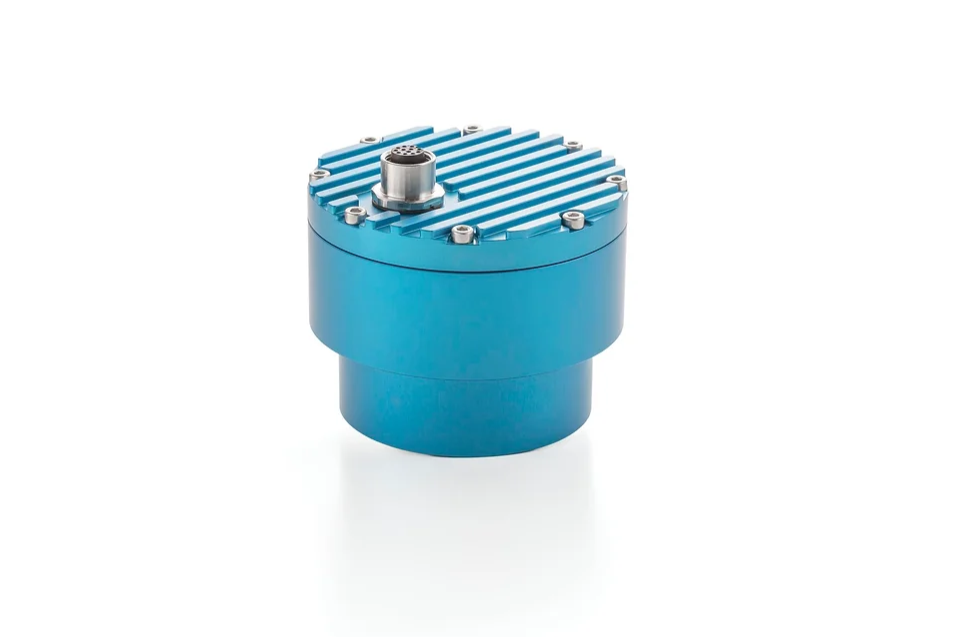

| Connector | M12 circular 12 pin |
|---|---|
| Input Voltage | 9 to 27 VDC |
| Power Consumption | 0.36 W; standby 0.15 W; sleep 0.03 W; extended 0.6 W |
| Enclosure Dimensions | Φ 65 mm x H 78 mm |
Interface
| Serial Interface | 1 x serial RS-485 half-duplex 1 x serial RS-232 (two wire interface) |
|---|---|
| Serial Baud Rate | 9600 bps to 115200 bps |
| Serial Protocols | Modbus, GLX-NMEA |
| Analog Interface | 4 - 20 mA |
| Other Interfaces | SDI-12 |
Downloads
| LX-80-8_Datasheet_web | DownloadLX-80-8_Datasheet_web |
|---|
