Gill Instruments
MaxiMet GMX500
Measures wind speed & direction (via ultrasonic sensor, no moving parts)
- Electronic compass for alignment / orientation
- Optionally GPS for true wind & positional data
- Temperature, humidity, pressure onboard
Overview
The Gill MaxiMet GMX500 is a compact, all-in-one weather station that measures wind speed and direction, temperature, humidity, and barometric pressure using solid-state sensors. It features an ultrasonic anemometer, optional GPS and compass, multiple communication protocols (like RS485, Modbus, NMEA), and is built for reliable, low-maintenance operation in harsh outdoor environments. With an IP66-rated housing and optional heating, it's ideal for agriculture, environmental monitoring, smart cities, and remote installations.
Typical applications
- Control systems including smart buildings, agriculture and industry
- Solar farms
- Road and rail
- Ports and harbours
- Reporting systems for transport and safety
- Low power/solar powered deployments and IoT applications
Key Features
- Five measured parameters: Wind speed & direction, temperature, humidity, pressure, optional heating, optional GPS function
- Multiple additional derived parameters based on combining measured parameters, such as gust, average wind speed and dew point
- High quality, accurate, solid-state sensors
- 2-axis compass
- Optional integrated GPS capability available to provide location, GPS timestamp and a calculation of true wind if the platform is moving
- Optional low power heating
Benefits
- High quality measurement data due to careful sensor selection and extensive design testing and verification
- Easy to set-up and integrate using comprehensive software to select the reported and derived parameters and measurement units required
- Easy to install and long operational life, due to a compact, robust design and the selection of low maintenance sensors
- Suitable for use with battery or solar systems in low power mode
Specifications
WIND SPEED |
|
| Range | 0-60 m/s |
| Accuracy |
0-10 m/s 0.3 m/s RMSE 10-40 m/s 3% RMSE 40-60 m/s 5% RMSE |
| Resolution | 0.01 m/s |
| Starting threshold | 0.01 m/s |
| Units of measurement | m/s, km/h, mph, kts, ft/min |
WIND DIRECTION |
|
| Range | 0-360° |
| Accuracy |
0.5 m/s-40 m/s ±3 ° 40-60 m/s ±5 |
| Resolution | 1° |
| Units of measurement | degrees |
OUTPUTS |
|
| Digital comms modes |
RS232, RS422 RS485, SDI-12 |
| Protocols |
ASCII, SDI-12 v1.3, NMEA 0183 MODBUS (RTU and ASCII) |
| Data outputs rates | 1/s, 1/min, 1/hour, or polled |
POWER SUPPLY |
|
| Input voltage | 5-30 VDC (10-30 VDC for heated models) |
| Average current consumption @ 12 VDC |
26 mA continuous mode (std unit) 400 mA total with heating +9 mA with GPS option 1.3 mA eco-power mode (no GPS, 1/hr) |
MECHANICAL |
|
| Construction | UV stabilized thermoplastic |
| Fittings | Fit to 44.45 mm (1.75 in) pole or mast |
| Weight | 0.7 kg |
| Connector type | 9-way clipper connector |
ENVIRONMENTAL |
|
| Protection class | IP66 |
| Operating temp. | -35°C to +70°C |
| Storage temp. | -40°C to +70°C with heating option |
STANDARD EQUIPMENT (supplied with product) |
| MaxiMet product |
| Mating connector |
| MetSet software*, to set-up and configure MaxiMet (comms mode, measurement units, reporting intervals, derived parameters, etc.) |
| MetView software*, to view reported parameters |
| MaxiMet User Manual* |
| * Downloadable from Gill Instruments website |
OPTIONS |
|
| GPS | Available as an option. Enables reporting of location, height, real time clock, true wind (for vehicle mounting applications |
| Heating | Available as an option for operation in extremely low temperatures |
WARRANTY |
|
| Warranty | 24 months |
AIR TEMPERATURE |
|
| Range | -40°C to +70°C with heating |
| Accuracy | ±0.3°C |
| Resolution | 0.1°C |
| Units of measurement |
°C, °F, K |
RELATIVE HUMIDITY |
|
| Range | 0-100% RH |
| Accuracy | typically, ±2% RH across full range |
| Resolution | 0.1% RH |
| Units of measurement | % RH, g/m3 |
BAROMETRIC PRESSURE |
|
| Range | 300-1250 hPa |
| Accuracy 900-1100 hPa, 25-40°C |
Absolute (typically) ±0.4 hPa Relative (typically) ±0.08 hPa |
| Resolution | 0.1 hPa |
| Units of measurement | hPa, mbar, mmHg, inHg |

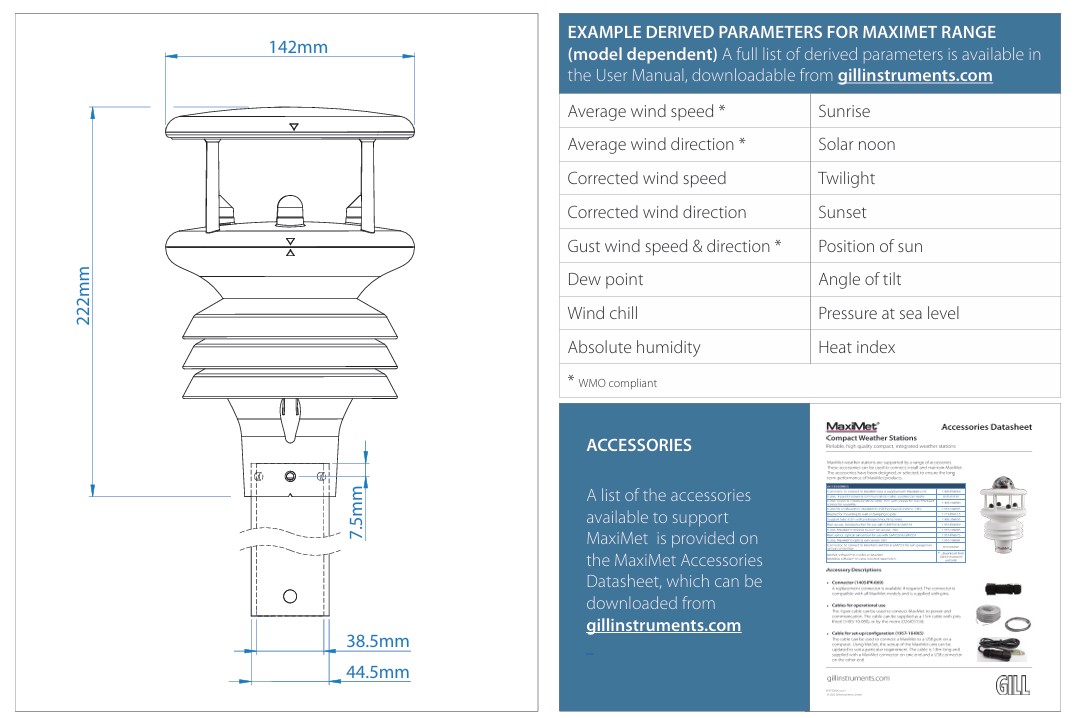

Drawing
Downloads
| 1957-008-MaxiMet-GMX500-issue-12 | Download1957-008-MaxiMet-GMX500-issue-12 |
|---|
