Gill Instruments
MaxiMet GMX600
Measures 6 parameters including precipitation
- Top multi-parameter weather stations 2024
- Best weather station with rain and wind sensors
- Compact weather stations for remote sites
Overview
The MaxiMet GMX600 is an all‑in‑one weather station that combines measurements of wind speed & direction, precipitation, temperature, humidity, and barometric pressure in one rugged unit. It uses ultrasonic wind sensors (no moving parts) and an optical rain gauge for precipitation, with optional GPS for true wind and location data. It supports various digital output protocols (RS‑232, RS‑485, SDI‑12, NMEA, Modbus, ASCII) and offers selectable data rates (1/sec, 1/min, 1/hr) with a low power “eco” mode. The GMX600 is designed for durability, featuring a naturally aspirated, UV‑stable radiation shield, IP66 protection, operation from about ‑40 °C to +70 °C (with heating option), and weighs around 0.8 kg.
Typical applications
- Control systems including smart buildings, agriculture and industry
- Solar farms
- Road and rail
- Ports and harbours
- Reporting systems for transport and safety
- Low power/solar powered deployments and IoT applications
Key Features
- Six measured parameters: Wind speed & direction, temperature, humidity, pressure, rainfall (optical sensor), optional heating, optional GPS function
- Multiple additional derived parameters based on combining measured parameters, such as gust, average wind speed and dew point
- High quality, accurate, solid-state sensors
- 2-axis compass
- Optional integrated GPS capability available to provide location, GPS timestamp and a calculation of true wind if the platform is moving
- Optional low power heating
Benefits
- High quality measurement data due to careful sensor selection and extensive design testing and verification
- Easy to set-up and integrate using comprehensive software to select the reported and derived parameters and measurement units required
- Easy to install and long operational life, due to a compact, robust design and the selection of low maintenance sensors
- Suitable for use with battery or solar systems in low power mode
Specifications
WIND SPEED |
|
| Range | 0-60 m/s |
| Accuracy |
0-10 m/s 0.3 m/s RMSE 10-40 m/s 3% RMSE 40-60 m/s 5% RMSE |
| Resolution | 0.01 m/s |
| Starting threshold | 0.01 m/s |
| Units of measurement | m/s, km/h, mph, kts, ft/min |
WIND DIRECTION |
|
| Range | 0-360° |
| Accuracy |
0.5 m/s-40 m/s ±3° 40-60 m/s ±5° |
| Resolution | 1° |
| Units of measurement | degrees |
OUTPUTS |
|
| Digital comms modes |
RS232, RS422 RS485, SDI-12 |
| Protocols |
ASCII, SDI-12 v1.3, NMEA 0183 MODBUS (RTU and ASCII) |
| Data outputs rates | 1/s, 1/min, 1/hour, or polled |
POWER SUPPLY |
|
| Input voltage | 5-30 VDC (10-30 VDC for heated models) |
| Average current consumption @ 12 VDC |
67 mA continuous mode (std unit) 400 mA total with heating option +9 mA with GPS option 1.3 mA eco-power mode (no GPS, 1/hr) |
MECHANICAL |
|
| Construction | UV stabilized thermoplastic |
| Fittings | Fit to 44.45 mm (1.75 in) pole or mast |
| Weight | 0.8 kg |
| Connector type | 9-way clipper connector |
ENVIRONMENTAL |
|
| Protection class | IP66 |
| Operating temp. |
-35°C to +70°C -40°C to +70°C with heating option |
| Storage temp. | -40°C to +70°C |
STANDARD EQUIPMENT (supplied with product) |
| MaxiMet product |
| Mating connector |
| MetSet software*, to set-up and configure MaxiMet (comms mode, measurement units, reporting intervals, derived parameters, etc.) |
| MetView software*, to view reported parameters |
| MaxiMet User Manual* |
| * Downloadable from Gill Instruments website |
OPTIONS |
|
| GPS | Available as an option. Enables reporting of location, height, real time clock, true wind (for vehicle mounting applications |
| Heating | Available as an option for operation in extremely low temperatures |
WARRANTY |
|
| Warranty | 24 months |
AIR TEMPERATURE |
|
| Range | -40°C to +70°C with heating |
| Accuracy | ±0.3°C |
| Resolution | 0.1°C |
| Units of measurement |
°C, °F, K |
RELATIVE HUMIDITY |
|
| Range | 0-100% RH |
| Accuracy | typically, ±2% RH across full range |
| Resolution | 0.1% RH |
| Units of measurement | % RH, g/m3 |
BAROMETRIC PRESSURE |
|
| Range | 300-1250 hPa |
| Accuracy 900-1100 hPa, 25-40°C |
Absolute (typically) ±0.4 hPa Relative (typically) ±0.08 hPa |
| Resolution | 0.1 hPa |
| Units of measurement | hPa, mbar, mmHg, inHg |
PRECIPITATION |
|
| Measurement type | Optical |
| Range | 0-300 mm/hr |
| Resolution | 0.08 mm |
| Units of measurement | mm/hr, mm total, in/hr, in total |

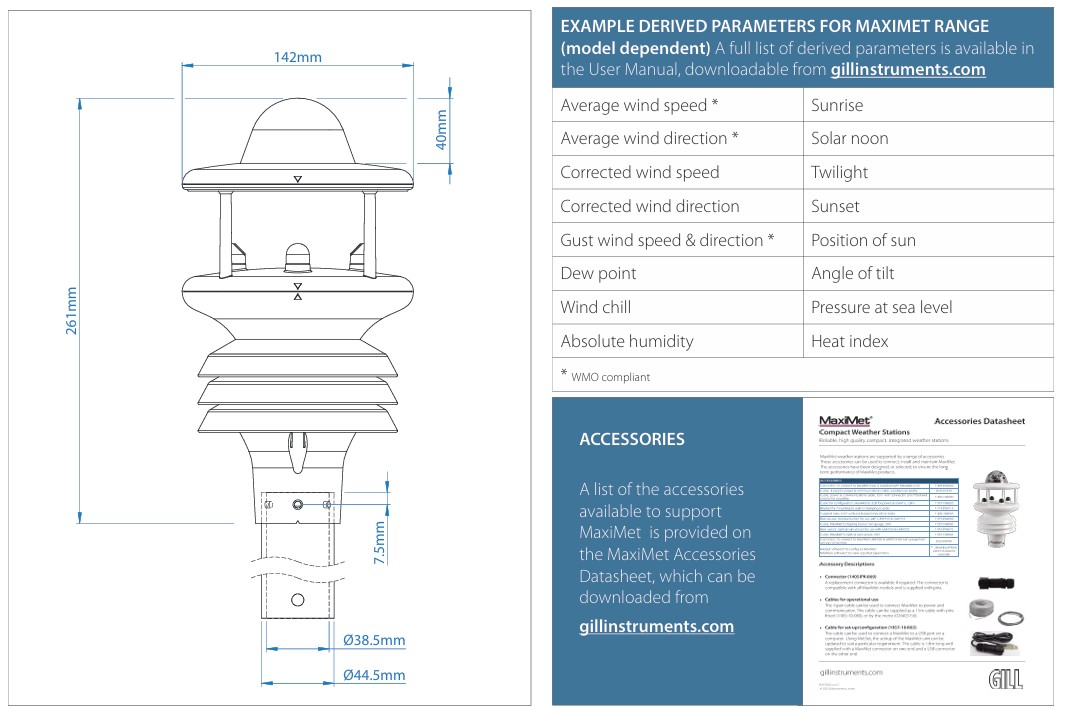

Drawing
Downloads
| 1957-010-MaxiMet-GMX600-Issue-13 | Download1957-010-MaxiMet-GMX600-Issue-13 |
|---|
