The MaxiMet Marine GMX560 is a high-performance, compact weather station designed for marine environments. It measures wind speed and direction using ultrasonic sensors, along with temperature, humidity, barometric pressure, and includes a 6-axis compass and optional GPS for true wind calculations. With IP66 protection, no moving parts, multiple output protocols (RS232, RS485, Modbus, NMEA, SDI-12), and low power consumption, it is ideal for ships, buoys, offshore platforms, and harsh coastal applications.



Gill Instruments

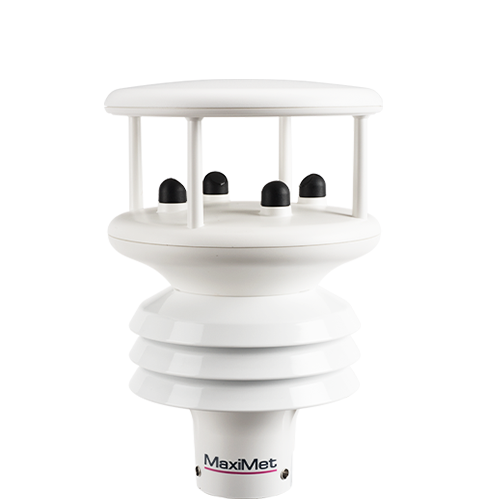

MaxiMet Marine GMX560
Combines IP68 environmental protection with high quality sensors for marine environments
- Best marine weather station with GPS
- Buoy-based weather monitoring system
- Remote maritime environmental sensor
Overview
Typical applications

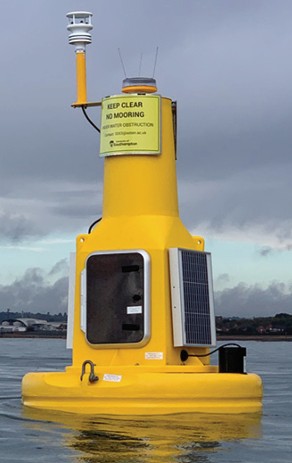

- Marine environments including Marine buoys, Unmanned surface vessels
- Helidecks
- Offshore wind farms
- Low power deployments and IoT applications
Key Features
- MaxiMet Marine GMX560 provides 5 measured parameters: Wind speed & direction, temperature, humidity, pressure, optional heating, optional GPS function
- IP68 and IP66 environmental protection
- IP68 and IP66 environmental protection. y 6-axis compass
- High quality, accurate, solid-state sensors
- Compact design with robust construction
- Multiple additional derived parameters
- Optional integrated GPS capability available to provide location, GPS timestamp and calculation of true wind if the platform is moving
- Commonly available connector suitable for corrosive environment
- Optional low power heating
Benefits
- Based on the GMX500, highly deployed in harsh marine applications, and now with additional environmental protection including temporary submersion
- 6-axis compass compensates for tilt and provides pitch & roll data
- No moving parts increases reliability and reduces maintenance requirements
- Multiple output protocols offer a range of integration options
- Easy to set up, integrate and install
Specifications
WIND SPEED |
|
| Range | 0-60 m/s |
| Accuracy |
0-10 m/s 0.3 m/s RMSE 10-40 m/s 3% RMSE 40-60 m/s 5% RMSE |
| Resolution | 0.01 m/s |
| Starting threshold | 0.01 m/s |
| Units of measurement | m/s, km/h, mph, kts, ft/min |
WIND DIRECTION |
|
| Range | 0-360° |
| Accuracy |
0.5 m/s-40 m/s ±3 ° 40-60 m/s ±5 |
| Resolution | 1° |
| Units of measurement | degrees |
OUTPUTS |
|
| Digital comms modes |
RS232, RS422 RS485, SDI-12 |
| Protocols |
ASCII, SDI-12 v1.3, NMEA 0183 MODBUS (RTU and ASCII) |
| Data outputs rates | 1/s, 1/min, 1/hour, or polled |
POWER SUPPLY |
|
| Input voltage | 5-30 VDC (10-30 VDC for heated models) |
| Average current consumption @ 12 VDC |
28 mA continuous mode (std unit) 400 mA total with heating option +9 mA with GPS option 1.3 mA eco-power mode (no GPS, 1/hr) |
MECHANICAL |
|
| Construction | UV stabilized thermoplastic |
| Fittings | Fit to 44.45 mm (1.75 in) pole or mast |
| Weight | 0.7 kg |
| Connector type | M12 8-way |
ENVIRONMENTAL |
|
| Protection class | IP66 & IP68 |
| Operating temp. |
-35°C to +70°C -40°C to +70°C with heating option |
| Storage temp. | -40°C to +70°C |
STANDARD EQUIPMENT (supplied with product) |
| MaxiMet product |
| Mating connector |
| MetSet software*, to set-up and configure MaxiMet (comms mode, measurement units, reporting intervals, derived parameters, etc.) |
| MetView software*, to view reported parameters |
| MaxiMet User Manual* |
| * Downloadable from Gill Instruments website |
OPTIONS |
|
| GPS | Available as an option. Enables reporting of location, height, real time clock, true wind (for vehicle mounting applications |
| Heating | Available as an option for operation in extremely low temperatures |
WARRANTY |
|
| Warranty | 24 months |
AIR TEMPERATURE |
|
| Range | -40°C to +70°C with heating |
| Accuracy | ±0.3°C |
| Resolution | 0.1°C |
| Units of measurement |
°C, °F, K |
RELATIVE HUMIDITY |
|
| Range | 0-100% RH |
| Accuracy | typically, ±2% RH across full range |
| Resolution | 0.1% RH |
| Units of measurement | % RH, g/m3 |
BAROMETRIC PRESSURE |
|
| Range | 300-1250 hPa |
| Accuracy 900-1100 hPa, 25-40°C |
Absolute (typically) ±0.4 hPa Relative (typically) ±0.08 hPa |
| Resolution | 0.1 hPa |
| Units of measurement | hPa, mbar, mmHg, inHg |

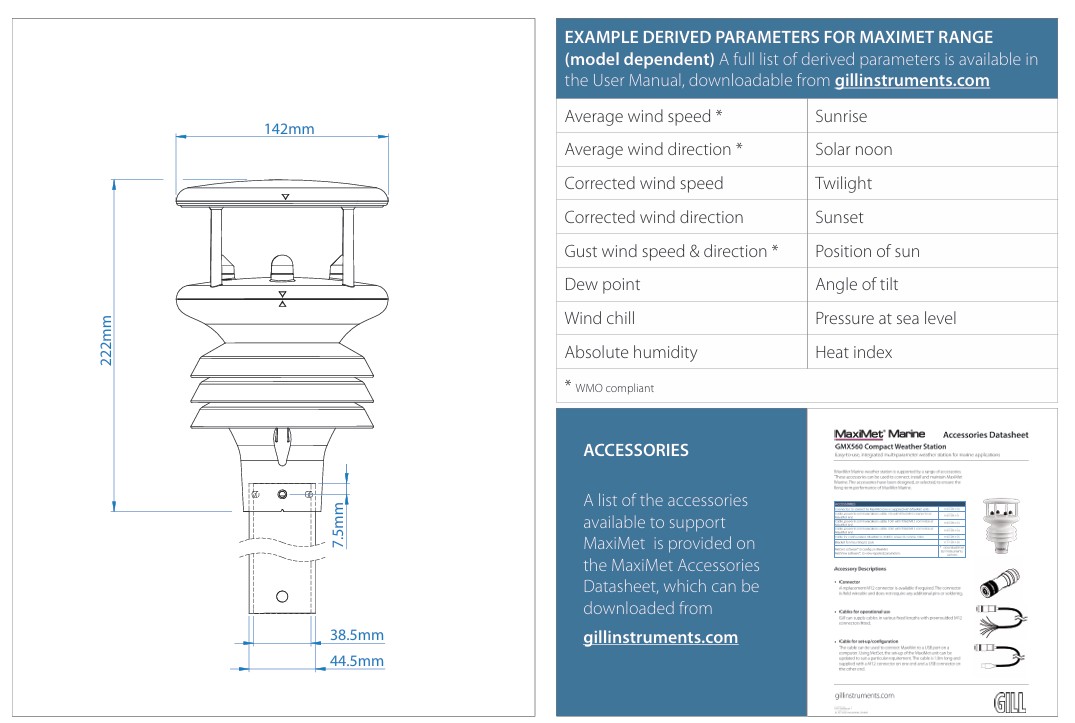

Drawing
Downloads
| 1957-028-MaxiMet-GMX560-Issue-4 | Download1957-028-MaxiMet-GMX560-Issue-4 |
|---|
