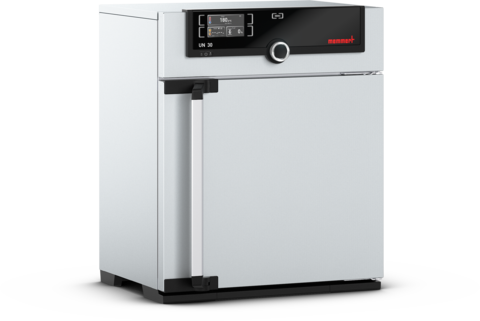

Memmert Universal Oven UN 30

Soil & CropsGeneral Laboratory Equipment

The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

Quantity

Overview

Precise drying, heating, ageing, burn-in and hardening in research, science, industry and quality assurance.
The universally applicable lab oven U is Memmert’s classic appliance for temperature control in science, research and material tests in the industry.
The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

Specifications

GENERAL SPECIFICATIONS

Working temperature range	at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
Setting accuracy temperature	up to 99.9 °C: 0.1 / from 100 °C: 0.5
Setting temperature range	+20 to +300°C
Temperature sensor	1 Pt100 sensor DIN class A in 4-wire-circuit
Volume	32 L
Dimensions	w(A) x h(B) x d(C): 400 x 320 x 250 mm
Max. number of internals	3
Net weight	approx. 45 kg
Voltage Electrical load	230 V, 50/60 Hz approx. 1600 W
Voltage Electrical load	115 V, 50/60 Hz approx. 1600 W
