Gill Instruments

MetConnect THP

ClimateMeteorological Station & Sensors

Combining temperature, humidity, pressure and measurements from user selected sensors

Weather station with external sensor inputs
Environmental monitoring station MetConnect THP
Meteorological base station for research

Quantity

Overview

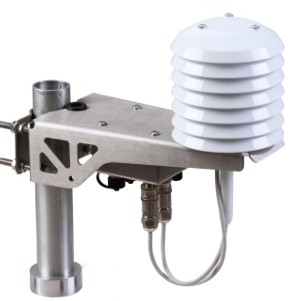

The MetConnect THP by Gill Instruments is a rugged, multi‑parameter base weather station that integrates sensors for temperature, humidity, and barometric pressure, while also offering inputs for external sensors (such as a remote wind sensor, rain gauge, PT100 temperature probe, and two analogue inputs) It supports a range of communication protocols including RS‑232, RS‑422, RS‑485, SDI‑12, and Modbus, outputting synchronized data via a single string. Designed for harsh environments, it has IP66/67 protection, stainless steel housing, UV‑stable parts, and operates over a wide temperature range (‑35 °C to +70 °C) while maintaining low power consumption.

Typical applications

Ports, marinas, data buoys, and commercial shipping
Meteorological measurement requiring separated sensors
Solar Park management including wind, rain and solar intensity
Agricultural research combining rain, moisture and sunlight

Key Features

High quality integrated sensors including temperature, humidity and pressure
Inputs for wind, rainfall, PRT (temp) and two analogue sensors
Time synchronized data available via multiple output protocols
Compact, robust design using 316 stainless steel and IP66/67 rating
Customer support available including set-up and display software

Benefits

Easy to configure for a wide range of applications with high quality sensors and the ability to connect additional instruments
Easy installation due to the compact, integrated physical design
Easy set-up with the support of downloadable set-up software
Easy integration with receiving controllers and loggers via a range of output protocols, and single combined data output
High levels of environmental protection and easy maintenance provided by stainless steel construction and field replaceable sensors

Specifications


POWER SUPPLY
Input voltage	5-30V DC
Current @ 12V DC	<70mA @ 12Vdc

CONNECTIVITY
Connectors	M12 8-way connectors on all inputs and outputs

OUTPUTS
Digital comms modes	RS232 RS422 RS485 (2 wire pt to pt) MODBUS SDI-12
Protocols	ASCII, SDI-12 v1.3 MODBUS (RTU and ASCIl) NMEA0183
Data outputs rates	1 measurement per second 1 measurement per 2 seconds 1 measurement per 4 seconds polled

MECHANICAL
Bracket and Hub Box	Stainless steel 316 construction
Installation Fittings	Fit to 30mm to 58mm pole or mast
Weight	3.0 kg

ENVIRONMENTAL & REGULATORY
Protection class	Hub Box and Pressure Sensor: IP66 & IP67 Temperature & Humidity Sensor: IP66
EMC	EN61326:2013
Operating temp.	-35°C to + 70°C
Storage temp	-40°C to +70°C
Regional markings	CE, UKCA, FCC Part 15
RoHS compliant	Yes
Origin	UK (United Kingdom)

SOFTWARE
MetSet	Downloadable, free of charge software to set-up MetConnect products
MetView	Downloadable, free of charge software to display and log the measurement data produced by MetConnect products

WARRANTY
Warranty	12 months

AIR TEMPERATURE
Range	-35°C TO +70°C
Accuracy	0.2°C (-35°C to +70°C)
Resolution	0.1°C
Units of measurement	°C, °F,

RELATIVE HUMIDITY
Range	0-100% RH
Accuracy	1.5% RH @ 25°C (0-80%RH) Typical 2% (-35°C to 70°C, 0-100%RH)
Resolution	1% RH
Units of measurement	% RH

BAROMETRIC PRESSURE
Range	300-1100 hPa
Accuracy	+/- 0.5 hPa @ 0 to 50°C
Resolution	0.1 hPa
Units of measurement	hPa, mbar, mmHg, inHg

ADDITIONAL INPUTS
Wind	For Gill Instruments anemometer (contact Gill Instruments for details)
Contact closure	For tipping bucket rain gauge
Pt100 Temp probe	4 wire Pt100 conforms to IEC 60751
Analogue 1	0-5V or 4-20mA loop or self-powered
Analogue 2	0-5V or 4-20mA loop or self-powered
Note: 5V power is available on additional sensor input connectors
