Eijkelkamp

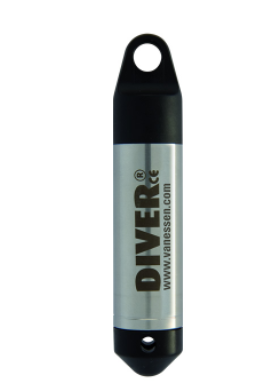

Micro Diver

WaterLevel Measurement & Monitoring

The Micro-Diver® is a submersible datalogger for long-term, uninterrupted, real-time water level monitoring using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory. The Diver is ideal for ground and surface water level applications.

Quantity

Overview

Features

Compact size: Ø 18 mm – length 88 mm
48,000 records of time stamp, pressure and temperature
30-Point Pressure Factory Calibration
Pre-programmed and user defined pumping tests

Benefits

Fits ¾ inch drive points and piezometers
Event based, averaging and pumping tests sample methods to conserve memory
Cost effective frequent, long-term measuring
Reliable and accurate data
No need to search through extraneous data
Fits any application

Specification

General

Length	88mm
Diameter	18mm
Memory	48,000 measurements
Housing	Stainless steel 316L
Weight	45g
Battery Life	10 years (dependent on usage)
Sample Interval	0.5 second to 99 hours
Sample Methods	Fixed, event dependent, averaging, and pumping test
