ML-01 Si-Pyranometer

ClimateMeteorological Station & Sensors

The compact, industrial-grade ML-01 silicon pyranometer is made for high-quality irradiance measurements. It's Class C, Fast Response, light, tough and easy to integrate into any project or application.

Quantity

Overview

The compact, industrial-grade ML-01 silicon pyranometer is made for high-quality irradiance measurements. ISO 9060:2018 Class C, fast response, light but tough, the ML-01 features a mono-silicon detector with a UV-resistant cone-shaped diffuser that helps to minimise soiling and water deposition, delivering an excellent cosine response, even at low solar elevation angles.

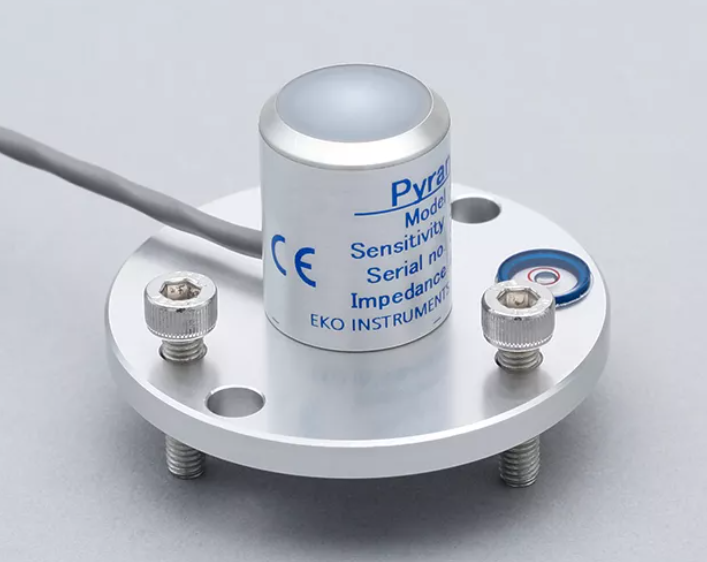

The sensor can be mounted in the horizontal position for global horizontal measurement applications with a standard removable mounting plate with a spirit level and levelling feet.

Made in Japan and manufactured to EKO's strict quality standards, the ML-01 comes with an optional mounting plate, a 2-year warranty, 2-year recommended recalibration interval, and unique calibration, compliant with international standards, for a cost-effective alternative to larger thermopile-based sensors, easy to integrate into any project or application; solar, agricultural, automotive and more.

Key Features

Small, Tough, & Easy to Integrate in Any Application
Excellent Cosine Response at Low Solar Elevation Angles
Low Temperature Dependency, Suited to Hot & Cold Conditions
Fast Response Photodiode Detector for Always Accurate Measurements
Mono-Silicon Detector with UV Resistant Diffuser & Removable Mounting Plate

Comparison

Comparison of EKO Instruments Pyranometers

	MS-40	MS-40S	MS-60	MS-80	MS-80S	MS-80SH	ML-01 SI
ISO 9060:2018	Class C	Class C	Class B	Class A	Class A	Class A	Class C
Response Time 95%	< 18 Sec	< 18 Sec	< 18 Sec	< 0.5 Sec	< 0.5 Sec	< 0.5 Sec	< 1 msec
Wavelength Range	285 - 3000 nm						400 to 1100 nm
Directional response (at 1000W/m² \| 0 to 80°)	± 20 W/m²	± 20 W/m²	± 18 W/m²	± 10 W/m²	± 10 W/m²	± 10 W/m²	< 10 W/m²
Signal Output	N/A	Modbus 485 RTU / 4-20mA / 0-1V	N/A	±10µV/W/m²	Modbus 485 RTU / 4-20mA / 0-1V	Modbus 485 RTU / SDI-12	Analog (mV)
Ingress protection	IP67						Equivalent to IP67 (IEC60529, JIS C0920)
Power Consumption	0W	<0.2W (Digital), <0.7W(Analog)	N/A	0W	<0.2W (Digital), <0.7W(Analog)	< 1.4 W	N/A
Pyranometer Type	Thermopile Pyranometer						Si-Pyranometer
IEC 61724-1:2021	IEC Class C	IEC Class C	-	IEC Class A	-	IEC Class A	IEC Class C
