SEBA Hydrometrie

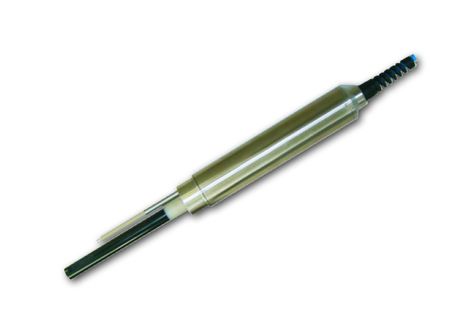

MPS-D3 Multiparameter Sensor

WaterWater Quality MeasurementData Logger (Water)

Robust, pluggable multi-parameter sensor of 1.4404 stainless steel, accommodating up to three sensors

Quantity

Overview

Individually configurable:
Depending on the measurement task, the MPS-D3 can be equipped with up to three water-quality sensors (parameters: pressure, temperature and conductivity).

Robust:
Standard version of 1.4404 stainless steel, optionally available in titanium for extreme operating conditions, e.g. for swelling pressure measurements of up to 80 bar.

Variable:

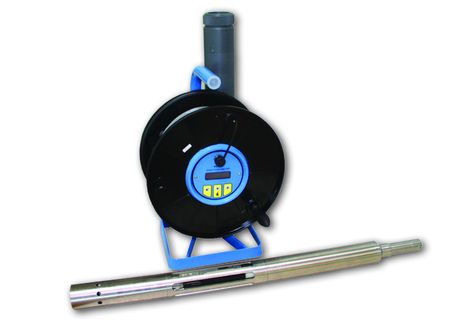

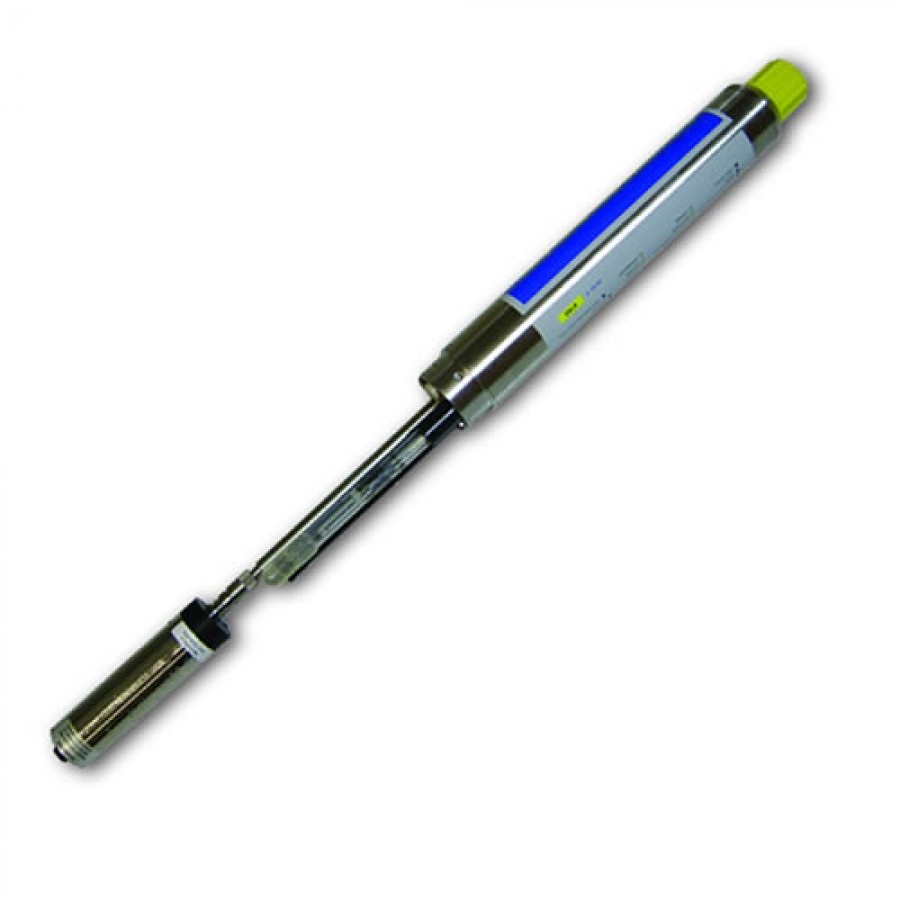

The proven and robust SEBA-connect feature of the MPS-D3 allows both the connection to mobile handsets (SEBA KLL-Q-2 Type electric water level gauge (KLL), Checker-2) or to stationary data collectors with (UniLogCom, LogCom/FlashCom) and without data transmission (Qualilog8).

Specification

Water Level

Sensor	Relative pressure probe
Measuring Principle	Capacitive with ceramic measurement cell
Measuring Range	0-2 / 1 /4/ 5/ 20/ 40/ 100 / 200m Water column or according to specification
Measuring Accuracy	± 0.1% FS
Long Term Stability	± 0.1% / year

Water Temperature

Sensor	NTC30 with polynomial linearization
Measuring Principle	NTC resistor
Measuring Range	-5 - + 50 ° C
Measuring Accuracy	0.1 ° C
Pressure Range	0 - 50 bar

Conductivity

Sensor	4-electrode measuring cell
Measuring Range	0-200mS / cm (total) automatic
Measuring Accuracy	± 1μS / cm at measuring range 0-200μS / cm; +/- 0.5% with measuring range 0.2-200mS
Pressure Range	0 - 50 bar
