EKO Instruments

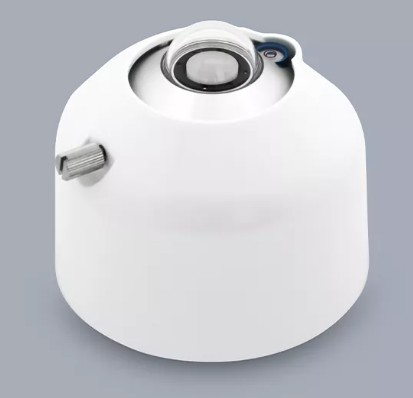

MS-10S UVA Radiometer

ClimateMeteorological Station & Sensors

Setting a new standard in UV irradiance monitoring, the MS-10S UVA and MS-11S UVB radiometers with integrated transducers deliver precise temperature correction, outstanding stability, superior UV measurement range and unbeatable response times.

Quantity

Overview

Part of EKO’s elite S-Series range of solar monitoring solutions, the MS-10S and MS-11S also include a unique 4-channel smart interface compatible with 99% of data loggers, DAQ, and SCADA systems. And internal diagnostic sensors for remote visibility over internal temperature, humidity, tilt and roll angle, ensuring optimum performance with reduced maintenance costs.

With a compact and lightweight design based on EKO’s universal sensor platform, the MS-10S and MS-11S are easy to manage, tough, reliable, and an industry-leading option for material testing, medical research and industrial field monitoring applications.

Key Features

Smart 4-channel Analog & Digital Interface
Level A EMI/EMC electronics surge filter & protection
Internal Diagnostics for temperature, tilt & roll

Comparison

Comparison of EKO Instruments Radiometers

	MS-10S UVA Radiometer	MS-11S UVB Radiometer
Measurement Range	0 to 150 W/m²	0 to 10 W/m²
Spectral Range	315 to 400 nm	280 to 315 nm
Response Time 95%	< 0.2 Sec	< 0.2 Sec
Output	Modbus 485 RTU, 4-20 mA, or 0-1 V (100 Ω)	Modbus 485 RTU, 4-20 mA, or 0-1 V (100 Ω)
Power Consumption	< 0.2 W	< 0.2 W
