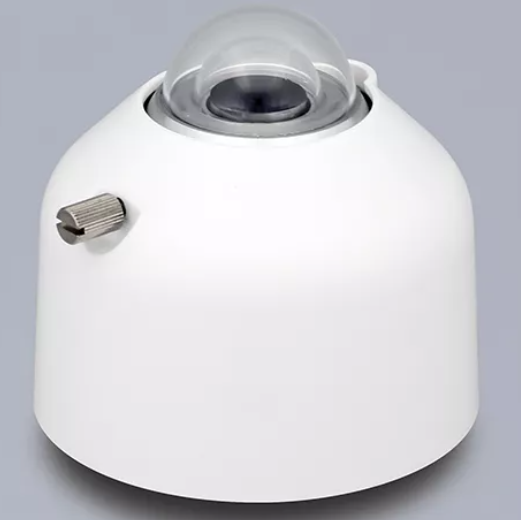

MS-60 Pyranometer

ClimateMeteorological Station & Sensors

The MS-60 is an ISO 9060:2018 Class B pyranometer with analog output and double dome construction for lower offsets and cosine errors.

Quantity

Overview

The MS-60 is an ISO 9060:2018 Class B analog output pyranometer compatible with the optional MV-01 ventilator & heater.

The MS-60 adheres to EKO's universal sensor design and includes a double dome construction for lower offsets and cosine errors. It is manufactured consistently and in keeping with our strict quality inspection and performance criteria.

EKO provides unique calibration, compliant with the international standards defined by ISO/IEC17025/9847. The sensor also has a 5-year warranty with a 2-year recommended recalibration interval, and it isn't necessary to change the desiccant.

Key Features

ISO 9060:2018 Class B
Spectrally flat
Analog output
ISO 17025 certified calibration
Optional MV-01 Ventilator & Heater

Comparison

Comparison of EKO Instruments Pyranometers

	MS-40	MS-40S	MS-60	MS-80	MS-80S	MS-80SH	ML-01 SI
ISO 9060:2018	Class C	Class C	Class B	Class A	Class A	Class A	Class C
Response Time 95%	< 18 Sec	< 18 Sec	< 18 Sec	< 0.5 Sec	< 0.5 Sec	< 0.5 Sec	< 1 msec
Wavelength Range	285 - 3000 nm						400 to 1100 nm
Directional response (at 1000W/m² \| 0 to 80°)	± 20 W/m²	± 20 W/m²	± 18 W/m²	± 10 W/m²	± 10 W/m²	± 10 W/m²	< 10 W/m²
Signal Output	N/A	Modbus 485 RTU / 4-20mA / 0-1V	N/A	±10µV/W/m²	Modbus 485 RTU / 4-20mA / 0-1V	Modbus 485 RTU / SDI-12	Analog (mV)
Ingress protection	IP67						Equivalent to IP67 (IEC60529, JIS C0920)
Power Consumption	0W	<0.2W (Digital), <0.7W(Analog)	N/A	0W	<0.2W (Digital), <0.7W(Analog)	< 1.4 W	N/A
Pyranometer Type	Thermopile Pyranometer						Si-Pyranometer
IEC 61724-1:2021	IEC Class C	IEC Class C	-	IEC Class A	-	IEC Class A	IEC Class C
