EKO Instruments

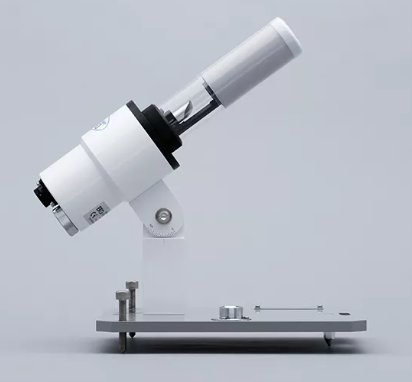

MS-90 DNI Sensor

ClimateMeteorological Station & Sensors

A revolutionary design with proven reliability, the MS-90 is made to measure Direct Normal Irradiance (DNI) without a sun tracker based on a unique rotating mirror design that reflects the sunbeam onto a thermal detector.

Quantity

Overview

A revolutionary design with proven reliability, the internal rotating mirror of the MS-90 DNI Sensor is based on the hugely successful MS-093 sunshine duration meter, deployed across Japan for over 10 years at over 800 AMeDaS network weather stations.

Designed to accurately measure Direct Normal Irradiance (DNI) without a sun tracker, the MS-90 is ideal for solar energy monitoring systems and meteorological networks.

Key Features

DNI measurement (<10% uncertainty)
Cost-effective, no sun-tracker required
Spectral range 300 – 2500nm
Low maintanence, with no external moving parts
Pulsed analog output 0-2V
Optional C-Box with GPS and Modbus output

Specifications

Specifications of EKO MS-90 DNI Sensor

DNI Measurement Uncertainty	<5% (@ > 700W/m2)
Operating Temperature Range	-20 to 50 °C
Wavelength Range	300 to 2700 nm
Power Consumption	400 to 470 mA
Geographic Application	Latitude (-58º to 58º ) / Longitude (0º to 360º
