Delmhorst

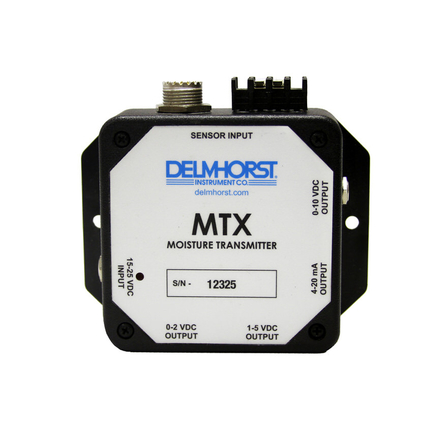

MTX Moisture Transmitters

ClimateMoisture Meters

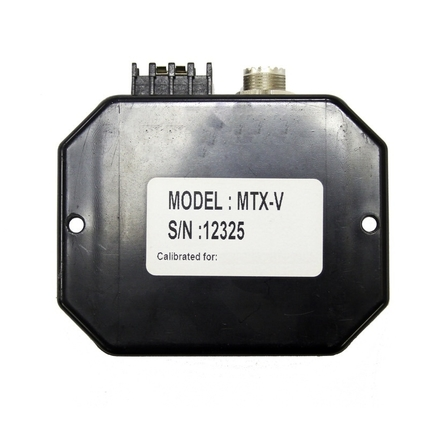

The Delmhorst Moisture Transmitters measure moisture in wood or other hygroscopic materials in conjunction with any Delmhorst electrode and generate either a current (MTX-C) or voltage output (MTX-V). The transmitters do not have a display, they use a 4-wire transmission method. DC voltage powers the unit using a separate wire from the voltage or current output wire.

Quantity

Overview

Moisture range - 6% - 60% wood (Douglas Fir)
One input
D.C. current 4 to 20mA or Voltage 1-5 VDC, or 0-2VDC
Power supply with D.C. voltage between 15 - 30 volts
Minimum supply current of 500mA
Operating temperature range of 32F - 158F / 0C - 70C
Dimensions - 3.25" X 3.25" X 1.25" (Mounting base 4.25" X 3.295")

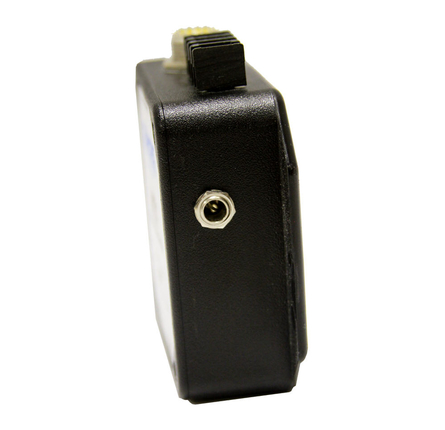

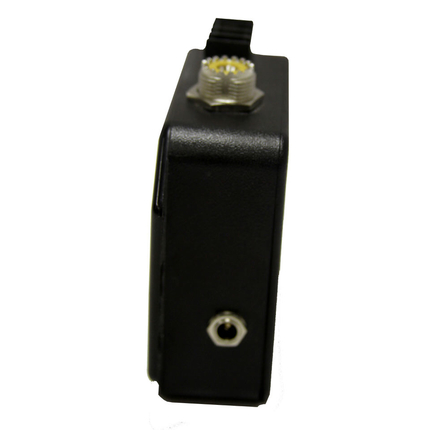

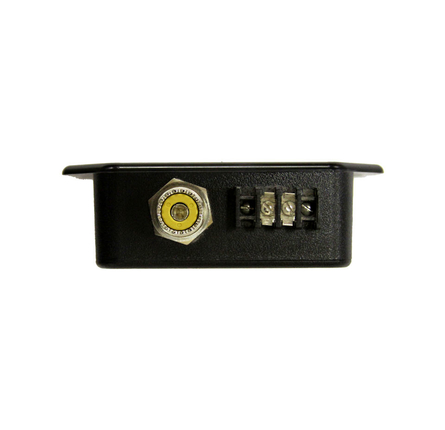

Terminals - 2.5 mm (Center Positive) power jack for Power Input, Terminal Strip, and UHF connector for Moisture Input

Specification

Moisture range	6% - 60% wood (Douglas Fir)
Power Supply	D.C. current 4 to 20mA or Voltage 1-5 VDC, or 0-2VDC
Operating temperature range	32F - 158F / 0C - 70C
Dimensions	3.25" X 3.25" X 1.25" (Mounting base 4.25" X 3.295")
Terminals	2.5 mm (Center Positive) power jack for Power Input, Terminal Strip, and UHF connector for Moisture Input
