SISGEO

Multipoint Settlement Gauges

InfrastructureDam Safety & ManagementGeotechnical Instrumentation

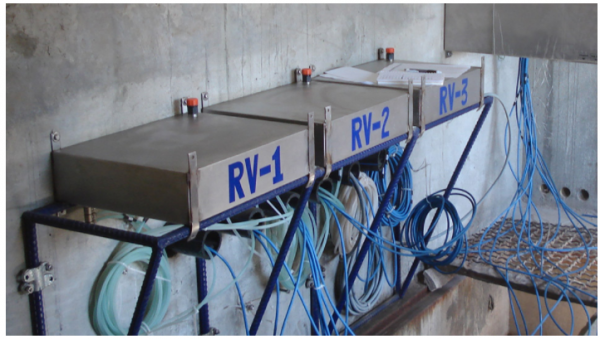

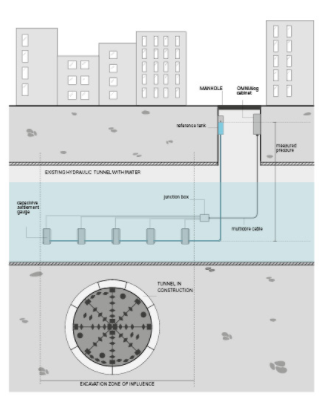

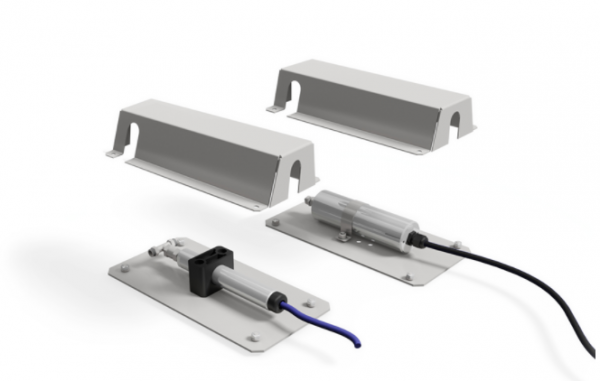

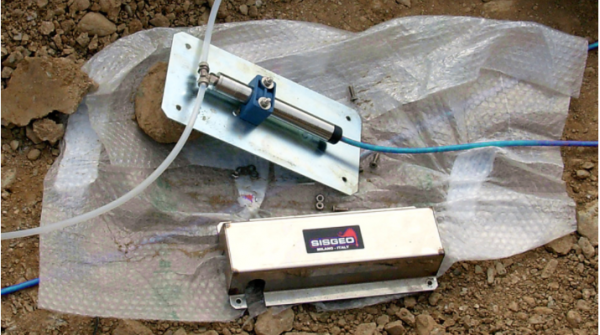

The Multipoint Settlement Gauges settlement systems consist of a number of hydraulic settlement gauge connected by tubing to a reference tank located on higher, stable ground. The settlement gauge is a pressure transducer with vibrating wire or capacitive technology, mounted on a plate with a protective cover. Depending on the requirement, the settlement system can be installed with just a single gauge or with multiple gauges. The typical application for the multipoint settlement systems is monitoring settlement in embankments, tunnels or other civil structures. More info.↗

Quantity

Specification

Technology	capacitive absolute pressure transducer with built-in thermistor	vibrating wire absolute pressure transducer with built-in thermistor
Ranges	20 kPa, 50 kPa, 100 kPa (2.90 psi, 7.25 psi, 14.5 psi) 2.01 m, 5.02 m, 10.05 m with Sisgeo liquid	170 kPa, 350 kPa, 700 kPa (25 psi, 50 psi, 100 psi) 17.08 m, 35.17 m, 70.34 m with Sisgeo liquid
Output signal	4-20 mA (pressure), Ohm (thermistor)	frequency (pressure), Ohm (thermistor)
Sensitivity	<0.006% FS	0.025% FS
Pol. MPE	<±0.1% FS	< ±0.25% FS
Sensor power supply	15 – 24 V DC
Typical frequency range		2250 - 3000 Hz
Materials	stainless steel pressure gauge, galvanized settlement plate, stainless steel protective cover	stainless steel pressure gauge, galvanized settlement plate, stainless steel protective cover

Overview

Automatic barometric compensation using vented pressure gauges.
Suitable for long term monitoring using vibrating wire gauges and enhanced data analysis using available Fieldstat software .
Can be applied to settlement monitoring in rockfill or earthfill dams, vertical displacement in tunnels and also settlement control under railway or road embankment.
