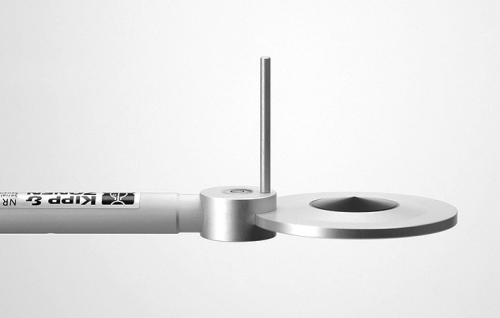

NR-LITE2-L Net Radiometer

ClimateMeteorological Station & Sensors

The NR-LITE2, manufactured by Kipp & Zonen and cabled for use with Campbell Scientific data loggers, is a rugged net radiometer that measures the energy balance between incoming short-wave and long-wave infrared radiation relative to surface-reflected short-wave and outgoing long-wave infrared radiation. It is directly connected to a Campbell Scientific data logger and is widely used in agriculture and hydrology applications.

Quantity

Overview

Compatible with most Campbell Scientific data loggers
Integrated bubble level ensures proper installation
Includes rod that deters birds from roosting on the radiometer
PTFE-coated absorbers are weather resistant without using a fragile plastic dome

Specification

Sensor	Two black conical absorbers—one facing upward and the other facing downward
Measurement Description	Measures incoming and outgoing short-wave and long-wave radiation
Spectral Range	0.2 to 100 µm
Response Time	< 20 s (nominal)
Sensitivity	10 µV W^-1 m² (nominal)
Output Range	±25 mV
Measurement Range	±2000 W m^-2
