Orion 910 Moisture Meter

ClimateMoisture Meters

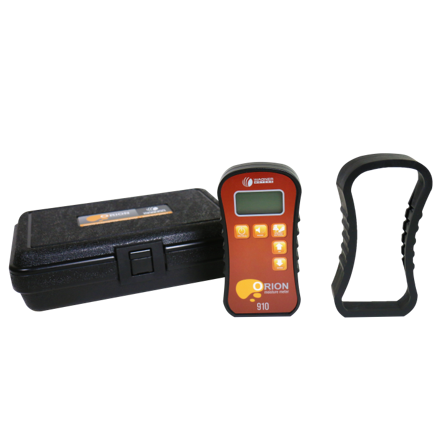

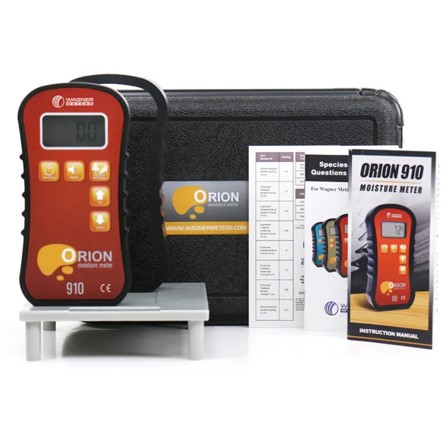

The Orion 910 Deep Depth Pinless Wood Moisture Meter Kit features the Orion 910, which is designed to build upon the capabilities of the popular Wagner MMC220 meter it replaces. The Orion 910 takes moisture readings in your wood or other material from the surface down to .75” (19mm) in depth. A flexible rubber boot makes the 910 durable enough to withstand your toughest jobs.

Quantity

Overview

Deep depth pinless moisture meter.
IntelliSense technology backed with a 7-year warranty.

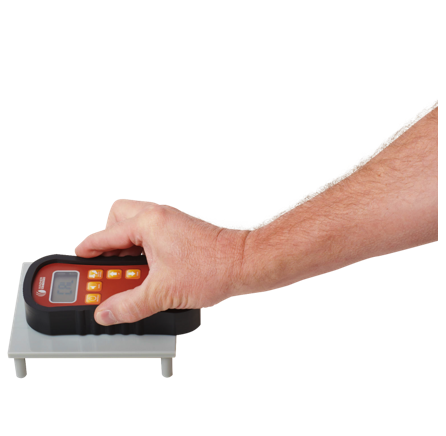

Includes an on-demand calibrator.
Easily set wood species to measure what you need.
Relative measurement mode to measure non-solid wood such as drywall.

Specification

Scanning Area	2.0 inches (50mm) x 2.5 inches (63mm)
Measurement Ranges	MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting) Relative Measurement Scale: 0-100
Specific Gravity Range	0.20-1.0 SG
Storage Temperature and Humidity	+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing
Operating Temperature Range	+32˚F to +110˚F (+0˚C to +43˚C)
Auto Power Shut-Down	60 seconds
Dimensions with Boot	Length: 5.75 inches (146mm) Width: 3.0 inches (76mm) Thickness: 1.0 inches (25mm)
