Orion 920 Moisture Meter

ClimateMoisture Meters

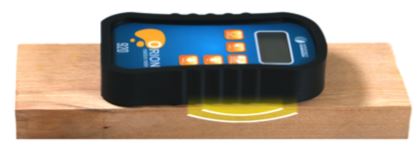

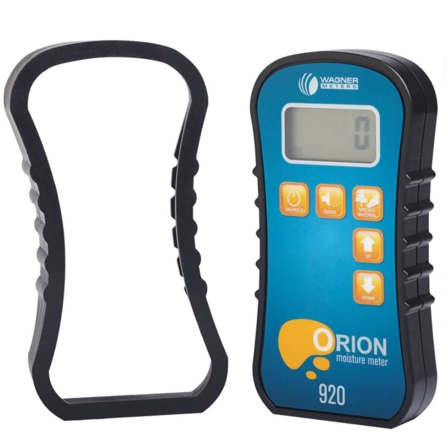

The Orion 920 Shallow Depth Pinless Wood Moisture Meter Kit features the Orion 920, carrying the Wagner tradition of superior accuracy forward with added capabilities and usefulness. The 920 takes moisture readings in your wood from the surface down to .25” (6.4mm) in depth. A flexible rubber boot makes the 920 durable enough to withstand your toughest jobs.

Quantity

Overview

Shallow depth pinless moisture meter.
IntelliSense technology backed with a 7-year warranty.

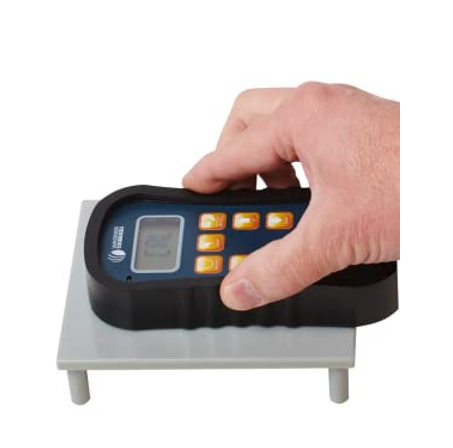

Includes an on-demand calibrator.
Easily set wood species to measure what you need.
Relative measurement mode to measure non-solid wood such as drywall.

Specification

Scanning Area	2.0 inches (50mm) x 2.5 inches (63mm)
Measurement Ranges	MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting) Relative Measurement Scale: 0-100
Specific Gravity Range for Wood Species	0.20-1.0 SG
Storage Temperature and Humidity	+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing
Operating Temperature Range	+32˚F to +110˚F (+0˚C to +43˚C)
Auto Power Shut-Down	60 seconds
Power	9V battery
