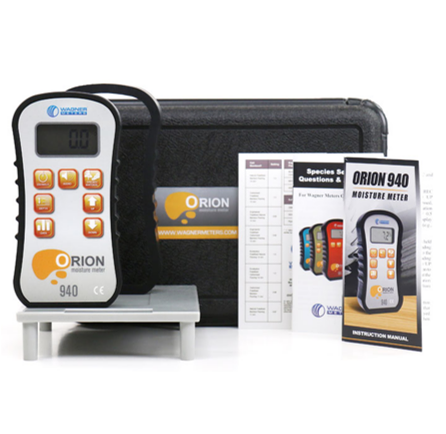

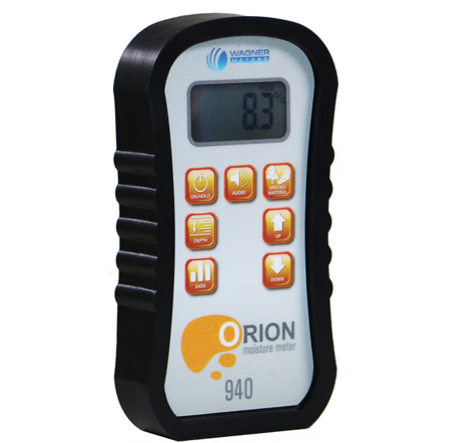

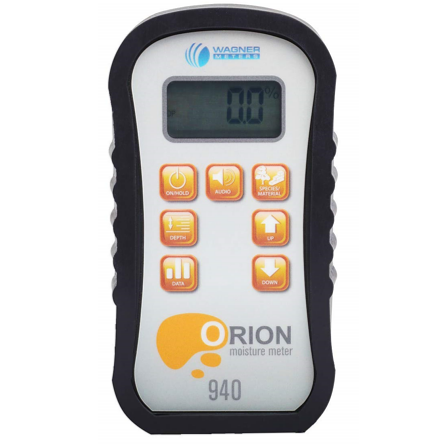

ORION 940 MOISTURE METER

ClimateMoisture Meters

Orion® 940 is best-suited for wood thicknesses from .25 inches (6mm) up to 1.5 inches (38mm). The meter can be used on non-solid wood products, and the Species Setting Booklet includes a few settings for some of these common materials

Quantity

Overview

Data collection & dual depth pinless moisture meter.
IntelliSense technology backed with a 7-year warranty.
Includes an on-demand calibrator.
Easily set wood species to measure what you need.
Relative measurement mode to measure non-solid wood such as drywall.

Specification

Scanning Area	2.0 inches (50mm) x 2.5 inches (63mm)
Measurement Ranges	MC for wood: 4.0% to 32.0% (range will vary slightly depending on species setting) Relative Measurement Scale: 0-100
Specific Gravity Range for Wood Species	0.20-1.0 SG
Storage Temperature and Humidity	+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing
Operating Temperature Range	+32˚F to +110˚F (+0˚C to +43˚C)
Internal Data Storage Capacity	100 saved readings
Auto Power Shut-Down	60 seconds
Power	9 volt battery
