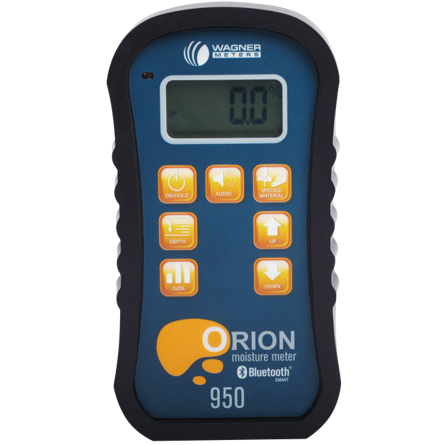

ORION 950 MOISTURE METER

ClimateMoisture Meters

Orion® 950 is best-suited for wood thicknesses from .25 inches (6mm) up to 1.5 inches (38mm). The meter can be used on non-solid wood products, and the Species Setting Booklet includes a few settings for some of these common materials.

Quantity

Overview

Smart data collection & dual depth pinless moisture meter. Bluetooth Enabled.
IntelliSense technology backed with a 7-year warranty.
Includes an on-demand calibrator.
Calculate EMC. Temperature and humidity sensor.
Relative measurement mode to measure non-solid wood such as drywall.

Specification

Measurement Ranges	Ambient Temperature: 32˚F to +110˚F (0˚C to +43˚C) Ambient Relative Humidity: 0% to 100% Equilibrium Moisture Content Measurement Range: 0-40.7% Dew Point: -85˚F to +110˚F (-65˚C to +43˚C) Absolute Humidity: 0 to 431.1 lb/ft (0 to 61.6 kg/m)
Specific Gravity Range for Wood Species	0.20-1.0 SG
Storage Temperature and Humidity	+50˚F to +90˚F (+10˚C to +32˚C), Maximum relative humidity of 95%, Non-condensing
Operating Temperature Range	+32˚F to +110˚F (+0˚C to +43˚C)
Scanning Area	2.0 inches (50mm) x 2.5 inches (63mm)
Power	9 volt battery
Internal Data Storage Capacity	100 saved readings
Auto Power Shut-Down	60 seconds
