OptiSciences

OS5p Chlorophyll Fluorometer

Soil & CropsPhotosynthesis Chlorophyll & Respiration
The New Standard in Portable Fluorometers
Quantity
1

Overview

  • Detection of Almost All Types of Plant Stress - The Most Advanced Portable System Available.
  • Wider Range of Automated Programmable Testing Protocols – More Than Any Other Portable Fluorometer
  • New Technology – Dramatic Innovations Improve Measurement Reliability
  • Rugged Field Portable – Designed for Extended Field Studies and Remote Locations

Specification

Modulated light

Two wavelengths;

  • Red: 660 nm LED with 690 nm short pass filter
  • Blue: 450 nm LED.
Detection Method Pulse modulation method
Test Duration Adjustable 2 sec. to 45 min., or 2 sec. to 16 hrs.
Time Resolution From 1.0 :s to 0.1s, sampling is automatically set for optimal use
Detector & Filters A sensitive PIN photodiode with a 700 ~ 750 nm band pass filter

Downloads

doc_1837_181004023717 Downloaddoc_1837_181004023717

Related Products

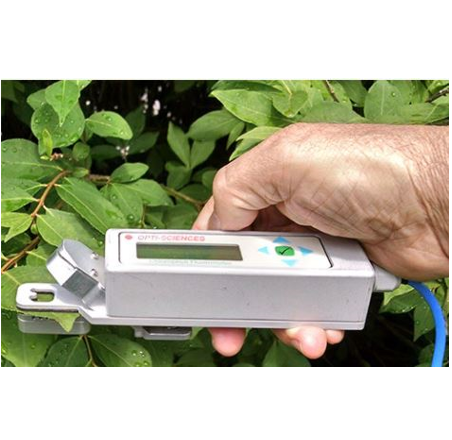

The Plant Stress Kit

OptiSciences

The Plant Stress Kit

The Y(II) meter was designed to provide an inexpensive way to measure the fast light adapted Y(II) or ΔF/FM' protocol and to make it available to more people…

Learn More

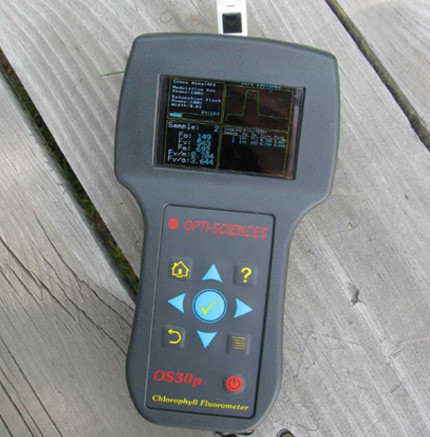

OS30p+- Hand Held Chlorophyll Fluorometer

OptiSciences

OS30p+- Hand Held Chlorophyll Fluorometer

The OS30p+ provides a graphic color display of both FV/FM protocol measurements & Strasser OJIP protocol measurements.

Learn More
CCM-200 plus Chlorophyll Content Meter

OptiSciences

CCM-200 plus Chlorophyll Content Meter

The CCM-200 plus Chlorophyll Content Meter is an updated version of the very successful CCM-200 instrument.

Learn More

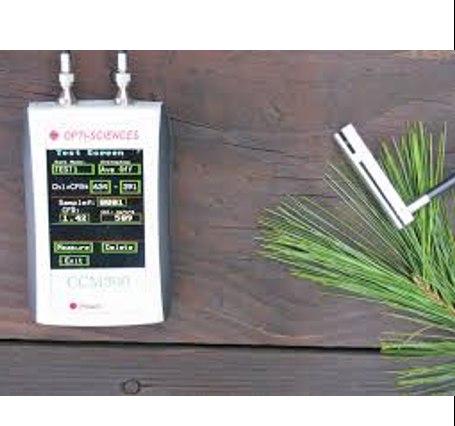

CCM-300 Chlorophyll Content Meter
