Qubit Systems
OX1LP Dissolved Oxygen

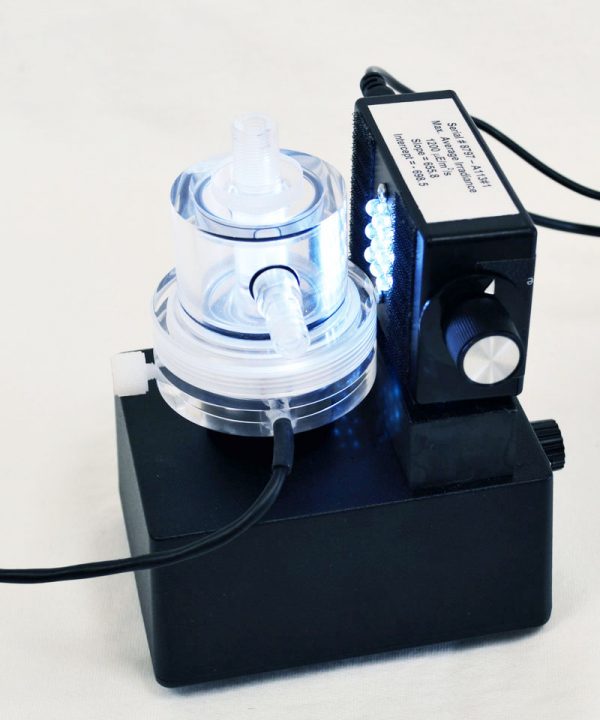

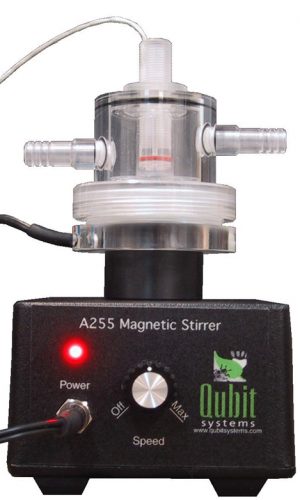

The OX1LP Dissolved Oxygen Packages are available with DO electrodes of different volumes from 100ul (flow-through) to 50 ml. The O2 electrode within the water-jacketed cuvette may be used for measurements of O2 consumption (or production) by biological samples or enzymatic reactions. Calibration is a simple 2-point process, and all the required accessories for calibration are supplied as part of the package.

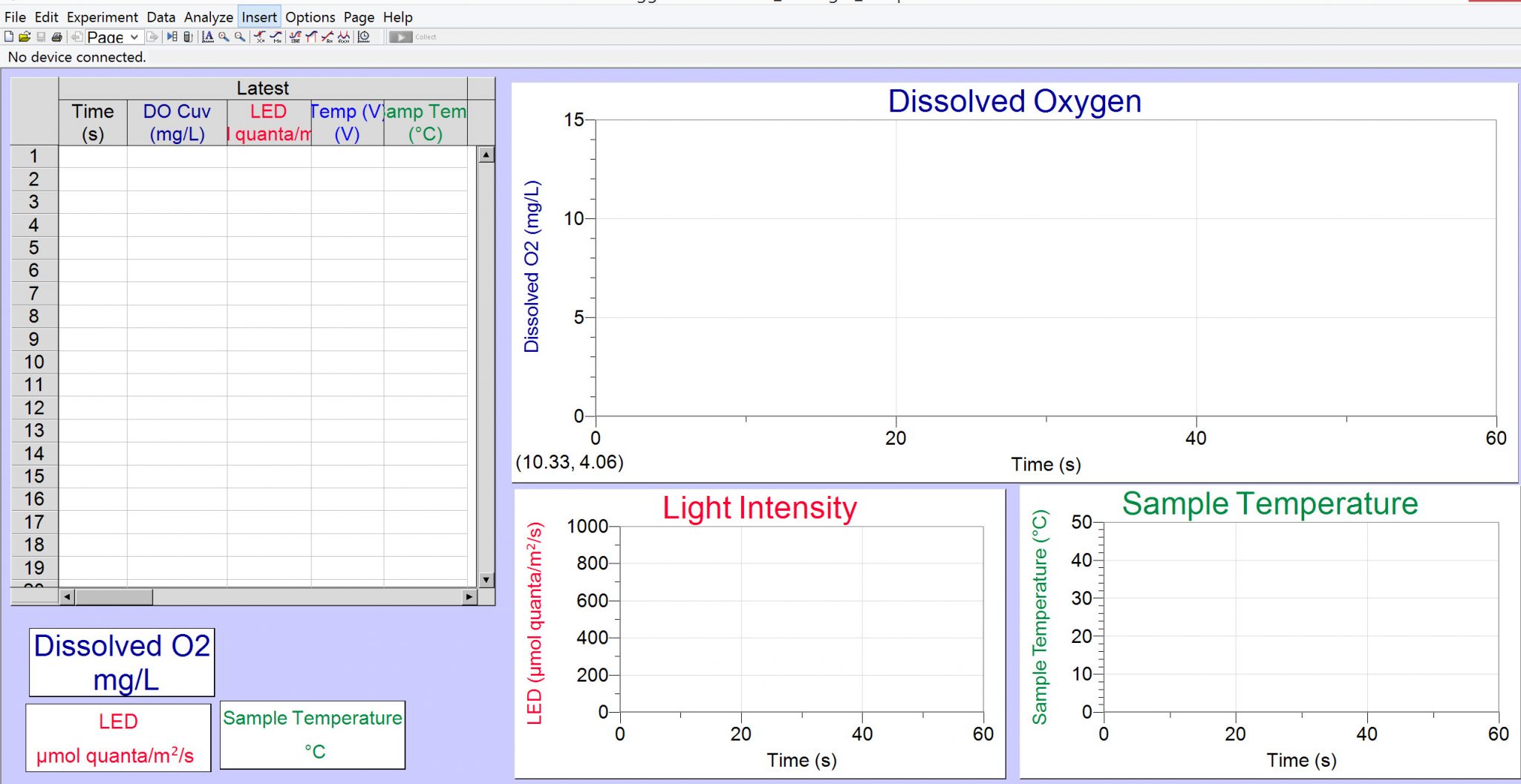

The Dissolved Oxygen Package provides excellent accuracy and a resolution of 0.03% O2 (where air saturated water = 100%). Dissolved O2 values may be expressed in any desired units (mg/L; % dissolved O2; ppm etc) based on a simple calibration procedure. The water jacket allows calibrations and experiments to be carried out at the same temperature, or a simple temperature correction can be made in software for measurements made at different temperatures.
Features
- Polarographic oxygen electrode system
- Different volume cuvette chambers available (1, 2.5, 4, 6, 30, 50ml)
- Water-jacketed cuvette allows temperature control with an optional water bath
- Includes all the accessories
- Easy assembly and calibration
