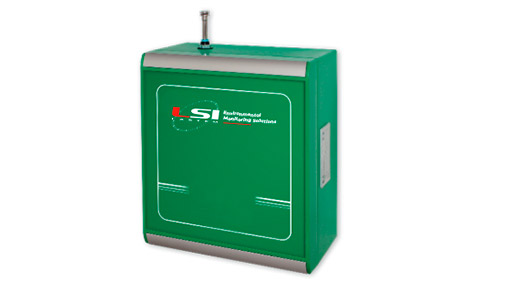

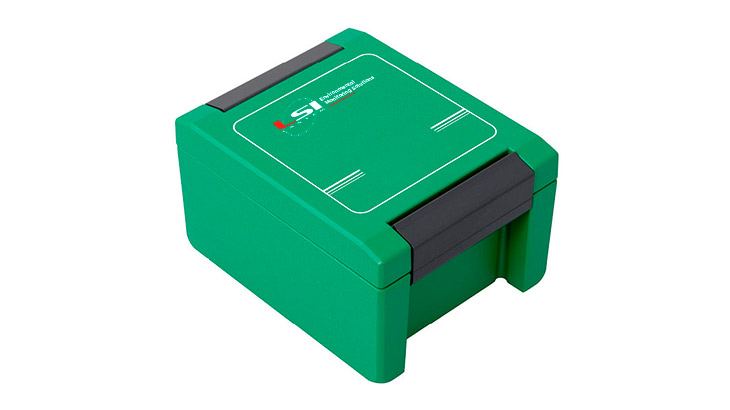

Particulate Matter Sensor

ClimateMeteorological Station & Sensors

The fine dust sensors are optical sensors for continuous measurement and control of fine dust contents, three particulate sizes are available: simultaneous PM10 and PM2.5, and separate PM 2.5 and PM10. The determination of the dust content is based on the method of scattered light measurement. The sucked air is tempered. The flow enforcement takes place via the integrated fan (2 l/min). In the device there is a periodic control and correction of zero point and reference point which is enabled by the electrostatic precipitator with integrated high voltage module. A high zero-point stability is achieved by evaluation of the internal measuring signals.

Quantity

Overview

Highlights

Simultaneous or separate determination of PM10 and PM2.5
Monitoring of fine dust in:
- Production area (workshops, factories, etc.)
- Indoor air quality monitoring in offices
- Monitoring the ambient air
- Integration in weather station
Automatic zero setting
2 l/min fan
4÷20 mA output
RS485 Modbus-RTU output
Wide operative environmental conditions: -20÷50 °C, 0-95 %

Available Models

Model	PRPMA1002	PRPMA1102	PRPMA1000	PRPMA1100	PRPMA1001	PRPMA1101
Measurement	PM2.5 and PM10		PM2.5		PM10
Output	4 - 20 mA	RS485	4 - 20 mA	RS485	4 - 20 mA	RS485
Protocol		Modbus RTU		Modbus RTU		Modbus RTU
Measurement Range	up to 500 µg/m3 (with electrostatic precipitation 2000 µg/m3 )		up to 200 µg/m³ (with electrostatic precipitation 500 µg/m³ )
