Photon Systems Instruments (PSI)

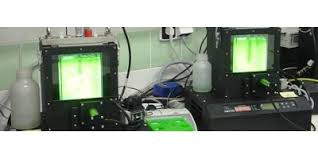

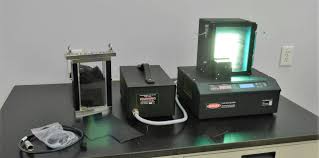

Photobioreactor FMT 150

Soil & CropsPhotosynthesis Chlorophyll & Respiration
Photobioreactors FMT 150 feature a combination of the bench-top cultivator and computer-controlled monitoring device. The product line comprises three instruments that differ in the cultivation vessel capacity - 400 ml, 1 and 3 l. All Photobioreactor models may be supplied with a number of useful accessories that facilitate to meet wide range of special experimental conditions.
Quantity
1

Overview

  • Cultivation of photoautotrophic and heterotrophic microorganisms
  • Flat cultivation vessel with a short light path for an optimal illumination
  • Standard bi-color LED panel, optionally up to 4 illumination colors
  • Highly precise control of cultivation conditions (illumination, temperature, aeration, etc.)
  • Optical density (OD 680, OD 720) and Chlorophyll-a fluorescence monitoring
  • Variable cultivation strategies (batch, pH-stat, turbidostatic, anaerobic, etc.)
  • Compact design, easy handling
  • Online software control

Specification

Volume 400 / 1000 / 3000 ml (FMT 150/400, FMT 150/1000, FMT 150/3000)
Shape Flat, rectangular
Dimension (h x l x d) / Weight

23.9 x 19.3 x 3.7 cm / 2.8 kg (FMT 150/400)

23.9 x 19.3 x 7.4 cm / 3.8 kg (FMT 150/1000)

31.7 x 30.3 x 7.4 cm / 6.2 kg (FMT 150/3000)
Material Glass, stainless steel bottom, silicon gasket, autoclavable
Aeration tubes Stainless steel U-tube with aeration holes (Ø 1 mm) + silicon connection
Humidifier Moistening of the sparging air to avoid evaporation from the cultivation vessel
Sampling Through the inlet or outlet tubes
