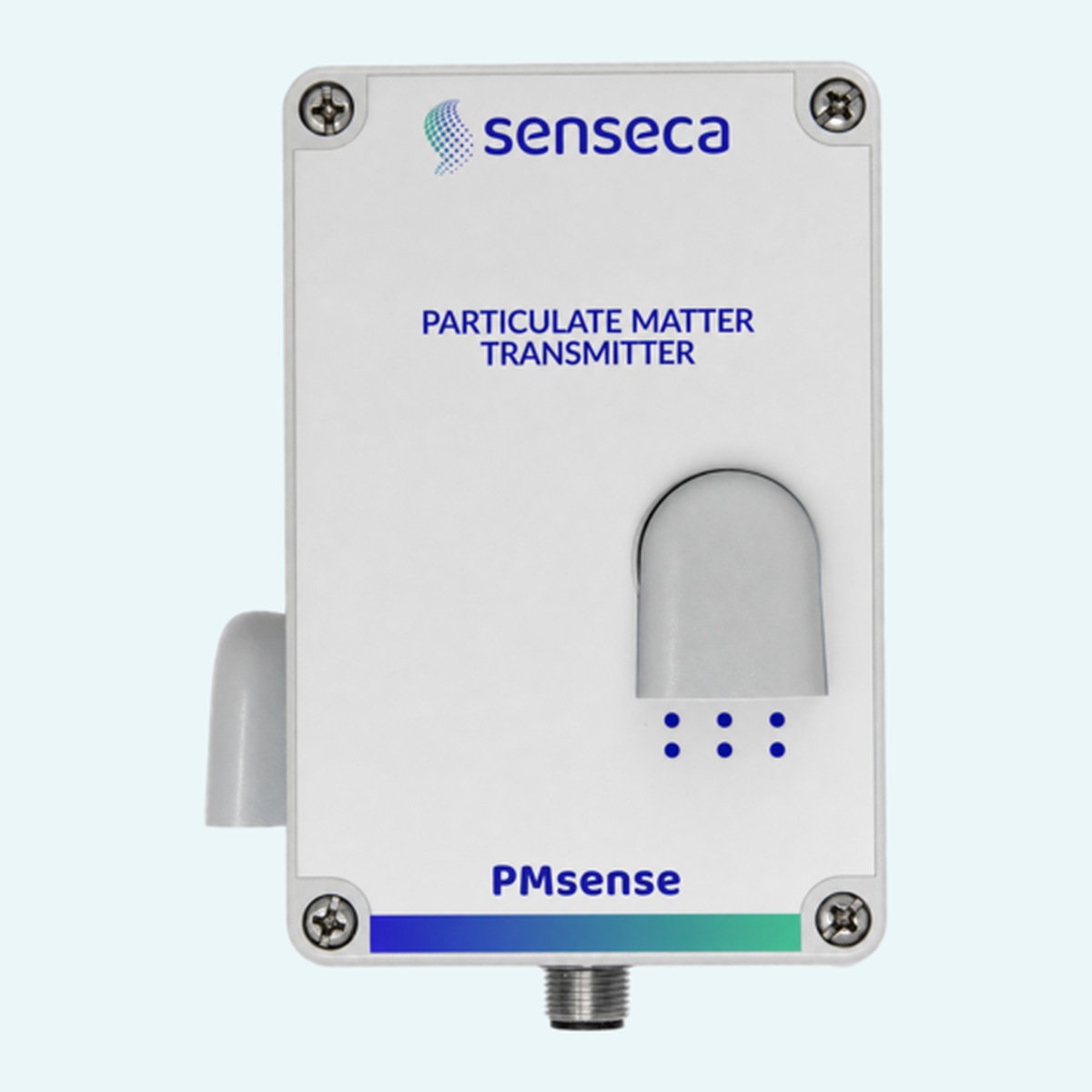

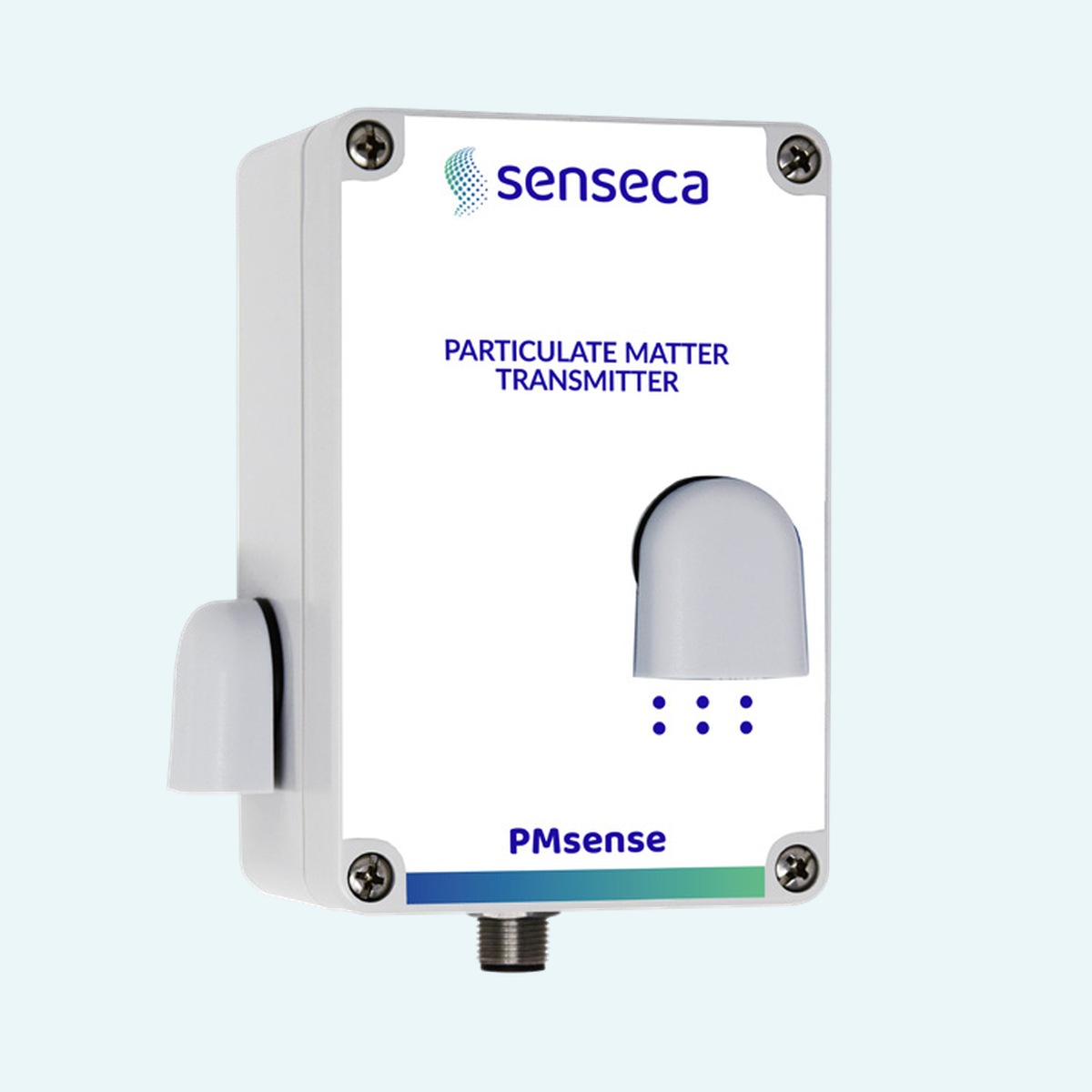

PMSenseCR Particle Matter Transmitter


Laser-scattering particle counter transmitter for ISO 14644 cleanroom monitoring.

  • Five particle size channels from 0.3 µm to 5 µm

  • RS485 Modbus-RTU or ASCII output, optional 0/4…20 mA

  • Optional CO2 sensor for added air quality data

Quantity
1

Overview

The Senseca PMSenseCR is a particle counter transmitter for cleanrooms and controlled environments in the pharmaceutical and high-tech sectors. Using the laser scattering principle, it counts and classifies airborne particles by size to monitor cleanrooms as described in the ISO 14644 standards.

Five channels report the number of particles per cubic metre above 0.3 µm, 0.5 µm, 1 µm, 2.5 µm and 5 µm. The sensor runs continuously by default, or at user-configurable cyclic intervals to extend its lifetime. Output is RS485 with Modbus-RTU or ASCII protocol, with an optional version adding two 0/4…20 mA analog outputs. An optional CO2 sensor (PMBsenseCR) adds a second air quality measurement.

Typical applications

  • Pharmaceutical cleanrooms
  • High-tech manufacturing cleanrooms
  • Controlled environments
  • Cleanroom monitoring to ISO 14644

Key Features

  • Laser scattering particle counter
  • Real-time particle count from 0.3 µm to 10 µm
  • 5 channels: > 0.3, > 0.5, > 1, > 2.5 and > 5 µm
  • Continuous or user-configurable cyclic measuring mode
  • RS485 output with Modbus-RTU or ASCII protocol
  • Optional 2 x 0/4…20 mA analog outputs
  • Optional CO2 sensor (NDIR, 0…5000 ppm)
  • M12 8-pole connector, IP 53 housing

Benefits

  • Accurate and reliable cleanroom monitoring to ISO 14644
  • Maintenance-free with fast response and high sensitivity
  • Excellent stability and long operating life
  • Choice of outputs to suit your system

Specifications

PARTICULATE MATTER



Measuring principle

Laser scattering

Measured pollutants

No. of particles/m³ with size > 0.3 µm, > 0.5 µm, > 1 µm, > 2.5 µm, > 5 µm

Measuring range

< 3.3 x 10⁹ pcs/m³ (loss of linearity above this threshold)

Particle size detection range

Ø 0.3…10 µm

Lowest detectable concentration

350 particles/m³

Detection efficiency (ISO 21501-4)

50% ± 30% @ 0.3 µm; 100% ± 20% @ 0.5 µm

False count

< 3 over 15 minutes

Repeatability

< 3% (> 0.3 µm and > 0.5 µm); < 5% (> 1 µm); < 10% (> 2.5 µm); < 15% (> 5 µm)

Sensor warm-up time

15 s

Sensor lifetime

> 10,000 hours in continuous mode (1 meas./s); approx. 5 years in 5-minute cyclic mode





CO2 (PMBSENSECR ONLY)



Measuring principle

Double wavelength NDIR

Measuring range

0…5000 ppm

Accuracy

±(50 ppm + 3% of measurement) @ 25 °C and 1013 hPa

Response time

< 120 s (air speed = 2 m/s)

Long-term stability

5% of measurement / 5 years

Temperature drift

1 ppm/°C





OUTPUTS



Digital output

RS485 with Modbus-RTU or ASCII proprietary protocol

Analog output (PM[B]senseCR-A only)

2 x 0/4…20 mA (RLmax = 500 Ω); on request 2 x 0…10 V (RLmin = 10 kΩ)

Connection

M12 8-pole circular connector





POWER REQUIREMENT



Power supply

7…30 Vdc (15…30 Vdc for 0…10 V analog outputs)

Power consumption

25 mA @ 24 Vdc during measurement; 4 mA in stand-by (cyclic mode only); excludes analog outputs





ENVIRONMENTAL



Operating conditions

-20…+70 °C / 0…95 %RH / 500…1500 hPa

Protection degree

IP 53 (rain-proof, UV-resistant inlet air filter)





MECHANICAL



Housing material

Polycarbonate

Dimensions

120 x 94 x 71 mm (excluding M12 connector)

Weight

330 g

Mounting

Fixing bracket with U-bolt





ORDERING CODES



PMsenseCR-M

Particulate matter, RS485 Modbus-RTU

PMsenseCR-A

Particulate matter, RS485 Modbus-RTU + 2 analog outputs

PMBsenseCR-M

Particulate matter + CO2, RS485 Modbus-RTU

PMBsenseCR-A

Particulate matter + CO2, RS485 Modbus-RTU + 2 analog outputs
