Qubit Systems
Q-Box RP2LP High Range Respiration

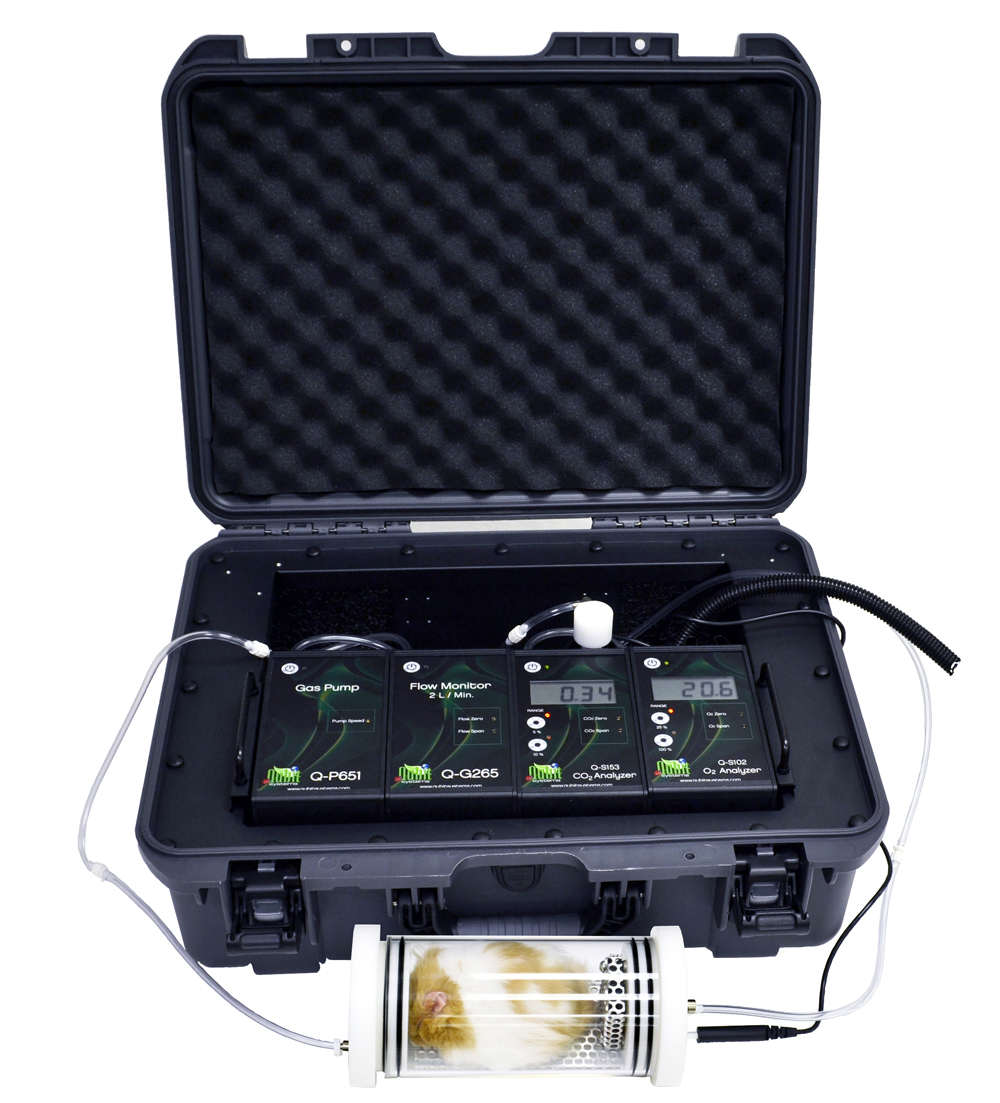

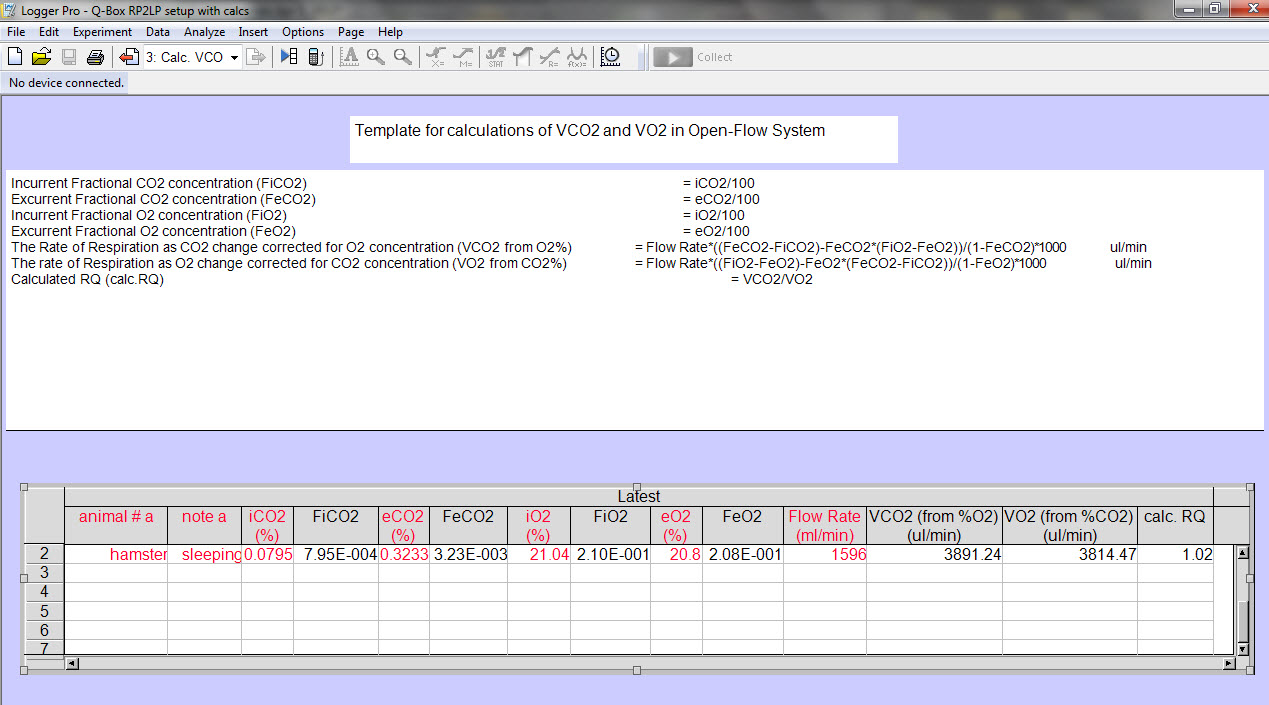

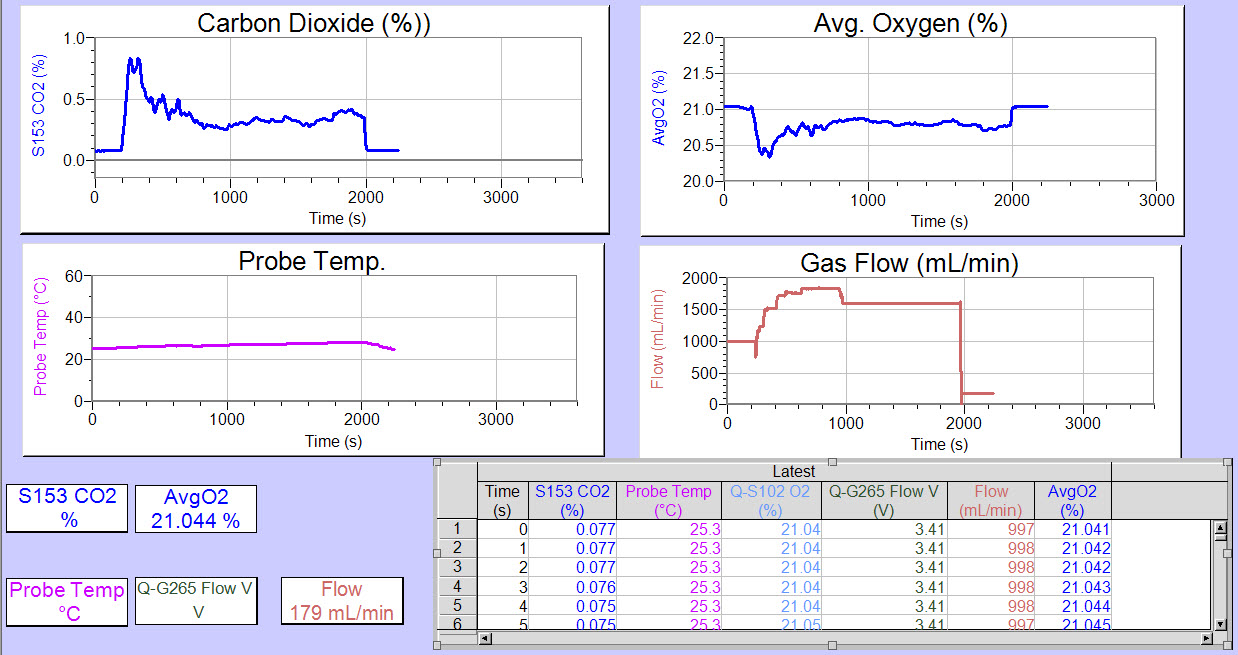

The Q-Box RP2LP Package provides you with all of the materials required to measure the respiration of small animals using an open-flow gas exchange system. The levels of CO2 and O2 in the gas that is supplied to the animal chamber is determined using the infrared CO2 gas analyzer (Q-S153) and the O2 Analyzer (Q-S102). This gas is pumped at a known flow rate through the chamber containing the animal. The levels of CO2 and O2 leaving the chamber are determined. The software provides calculations of respiration rate as VCO2 and VO2.
For Multichannel measurements of respiration (up to 7 samples plus reference) consider adding Qubit Gas Switching System to Q-Box RP2LP High Range Respiration Package
Features
- Modular Gas Exchange Measuring System for more active animals
- Includes CO2 and O2 analyzers
- Components interchangeable with other Q-Box Packages
- Housed in rugged box for easy transport and set up
- Use in a lab or field (with optional battery pack)
