Q-S161 RH/Temp. Sensor

ClimateMeteorological Station & Sensors

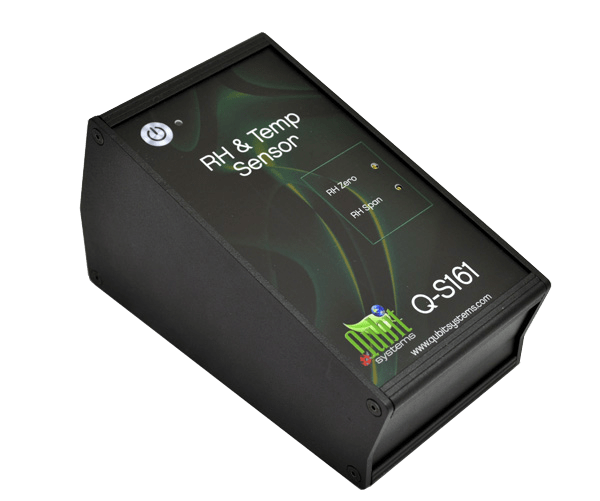

Q-S161 RH/Temp Sensor allows simultaneous measurements of relative humidity and gas temperature at the RH sensor. Water vapor concentration can then be calculated in absolute units. No calibration is needed if used with C901 Logger Pro software and the associated calibration files (factory calibrated).

Quantity

Overview

Simple operation

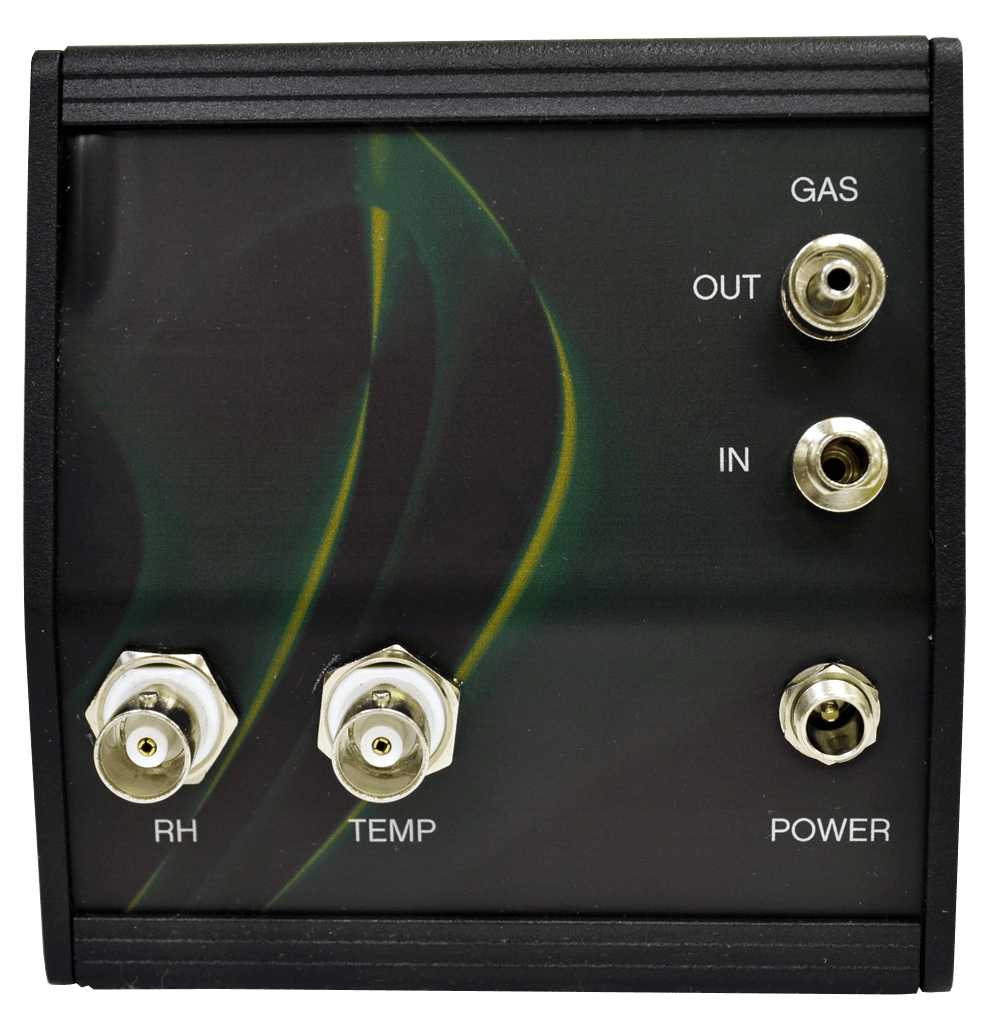

Two analog outputs (RH and Temp)
Flow through RH gas analyzer
Two valve adjustments of in and out gas flow
1LPM max flow (no load)

Specification

Accuracy	± 2% RH, 0-100 % RH non-condensing, 25 °C
Linearity	± 0.5% RH Typical
Hysteresis	± 1.2% of RH Span Maximum
Repeatability	± 0.5% RH
Response Time	15 s in slowly moving (200ml/min) gas @ 25 °C
Stability	± 1% RH Typical at 50% RH in 5 Years
Range	0 to 100% RH, non-condensing
